Description
The RAV-CTP ceiling unit suits a broad spectrum of applications, including professional settings.
Boasting an A+ energy rating for both heating and cooling, it merges energy savings with eco-friendliness, trimming your running costs.
Operating in near silence, the RAV-CTP maintains a pleasant indoor climate without audible disturbance.
Its built-in dehumidifying mode purges residual moisture after shutdown, keeping performance at its peak, while the air filter rinses clean under tap water.
Supplied with an ergonomic wall controller, it can be expanded with an optional infrared handset or managed through phone or tablet.
Key advantages
- Low power draw
- Whisper-quiet
- Flexible control options

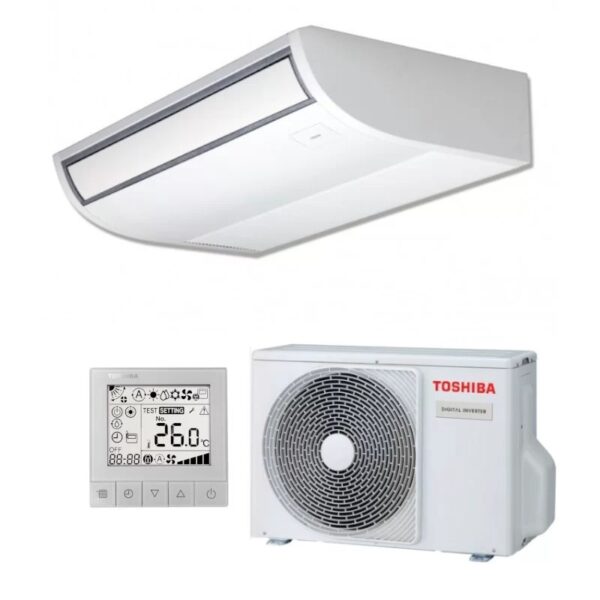

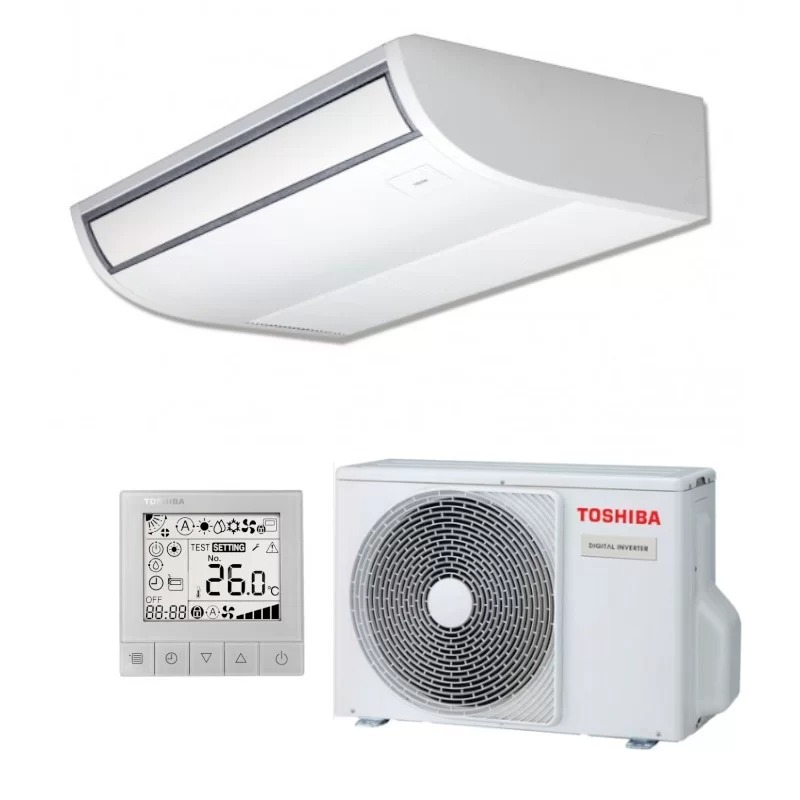

Kit contents

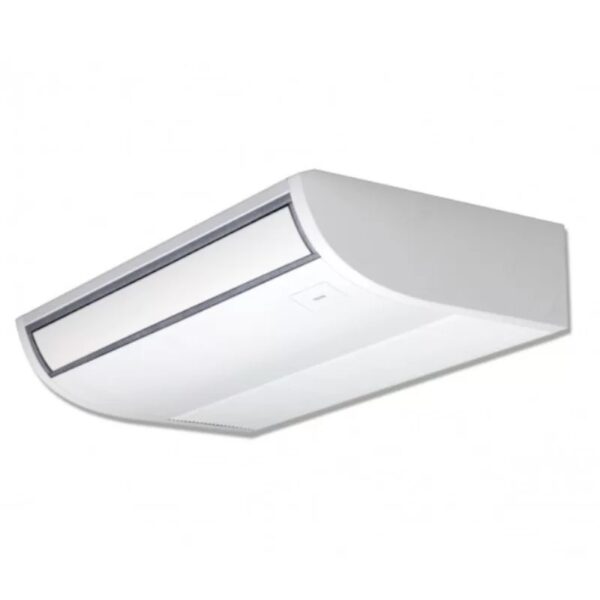

- 1 indoor module

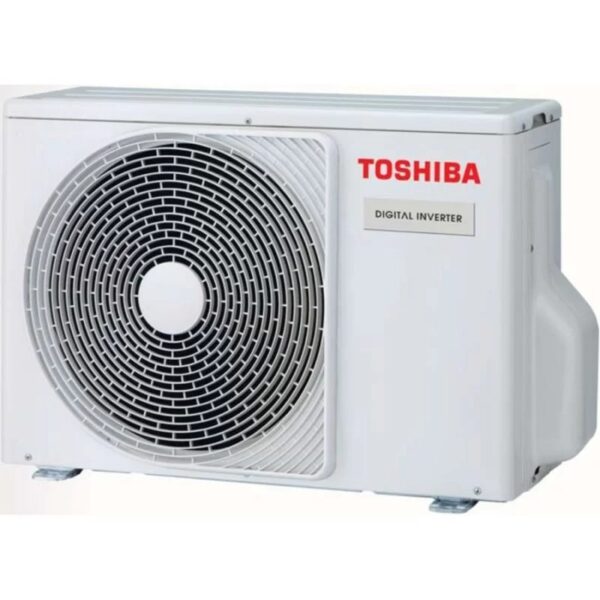

- 1 outdoor module

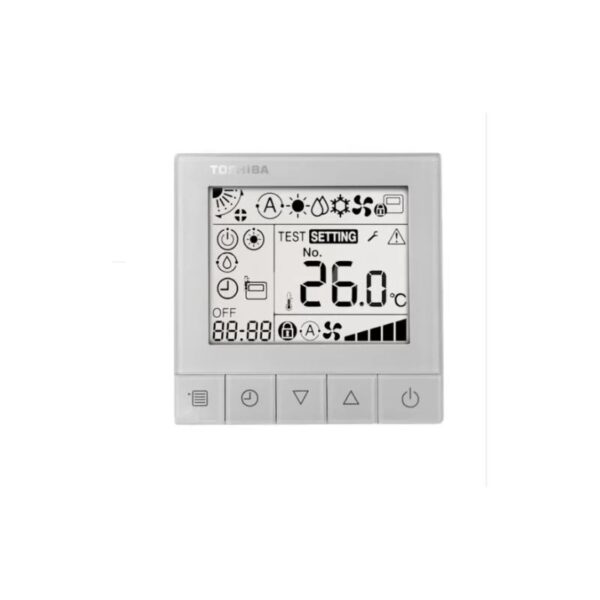

- 1 wired controller
- 1 user manual
Product details
RAV-HM901CTP-E / RAV-GM901ATP-E
0.00 Kg
Data sheet – The information provided is for reference only. It must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ceiling cassette
- Room (m²)
- 90
- WiFi
- Optional
- Capacity
- 9 kW / 30 000 BTU
- Rated heating capacity
- 9 kW
- Rated cooling capacity
- 8 kW
- Cooling energy class
- A++
- Heating energy class
- A++
- SCOP / Rated heating energy label
- 4.6
- SEER / Rated cooling energy label
- 6.1
- Refrigerant
- R32
- Refrigerant piping
- 3/8'' – 5/8''
- Colour
- White, Pearl White
- Voltage
- Single-phase
- Min sound pressure dB(A)
- 30
- Indoor unit dimensions (mm)
- 235 × 1270 × 690
- Outdoor unit dimensions (mm)
- 630 × 800 × 300
