Description
The compact cassette RAV-SDT blends invisibly thanks to ultra-slim built-in dimensions, guaranteeing a hidden installation. It delivers peak thermal comfort for both heating and cooling while purifying and dehumidifying the air—perfect for hotel rooms, medical offices, or private homes.

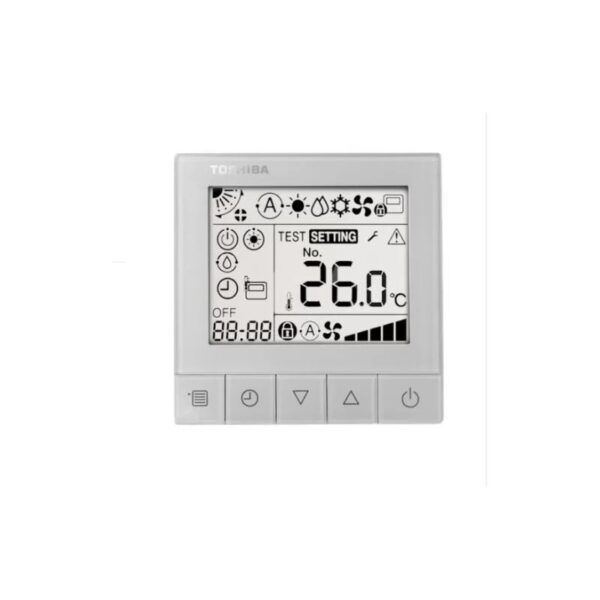

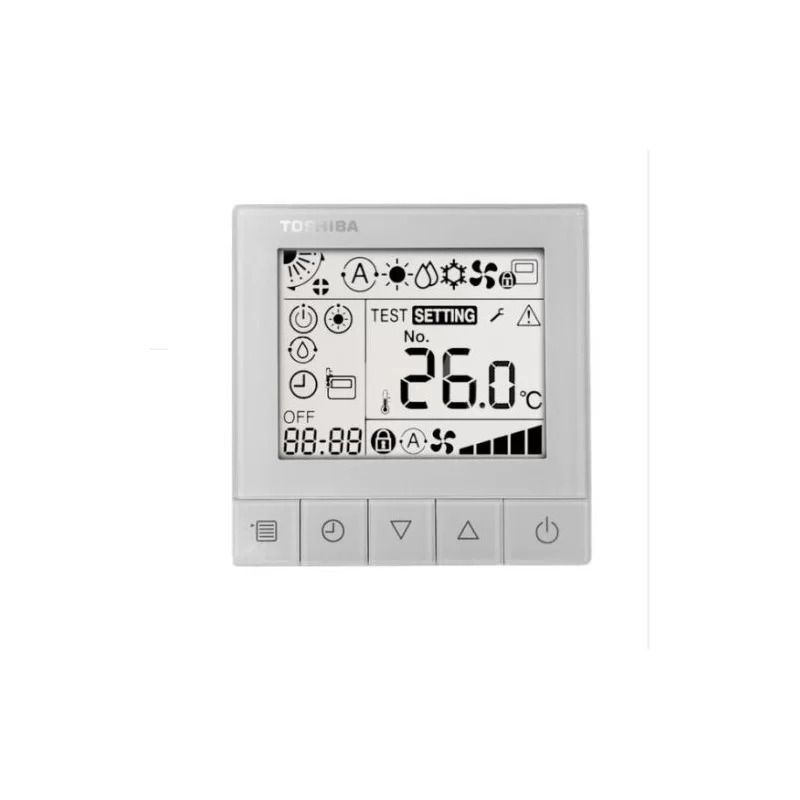

Paired with a Digital Inverter outdoor unit, it achieves high energy efficiency. The French-language wall controller offers intuitive operation plus advanced settings, and optional infrared remote or smartphone/tablet control are also available.
User benefits
- Completely hidden installation
- Ultra-low built-in height of 21 cm
- Reversible air inlet for added flexibility
Kit contents

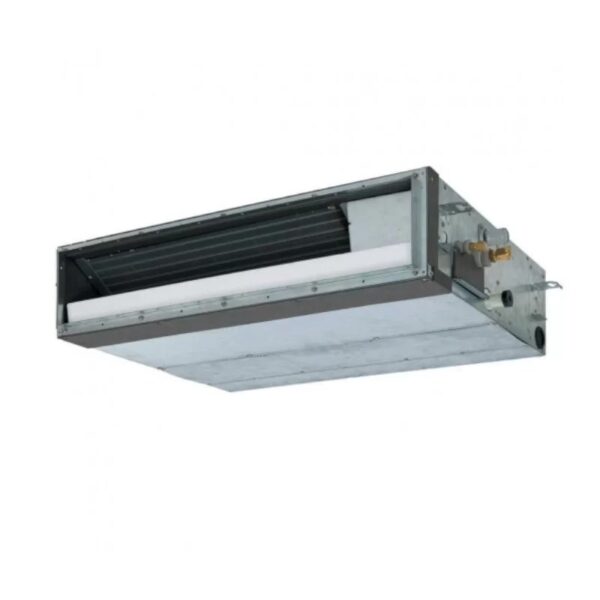

- 1 Indoor unit

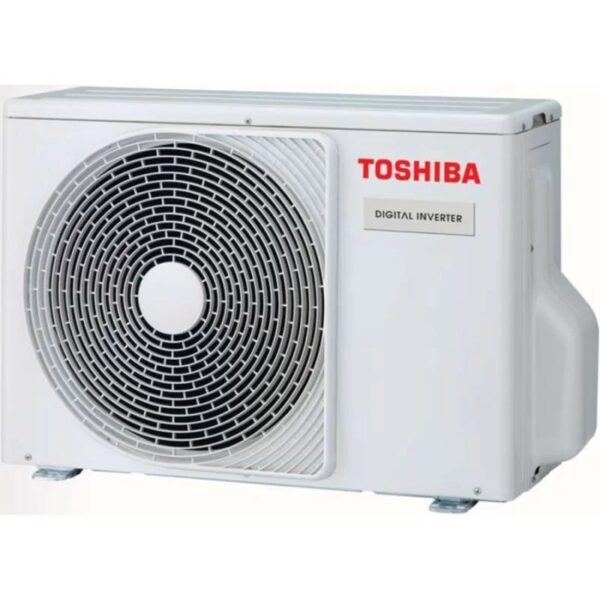

- 1 Outdoor unit
- 1 Wired controller
- 1 User manual
Product details

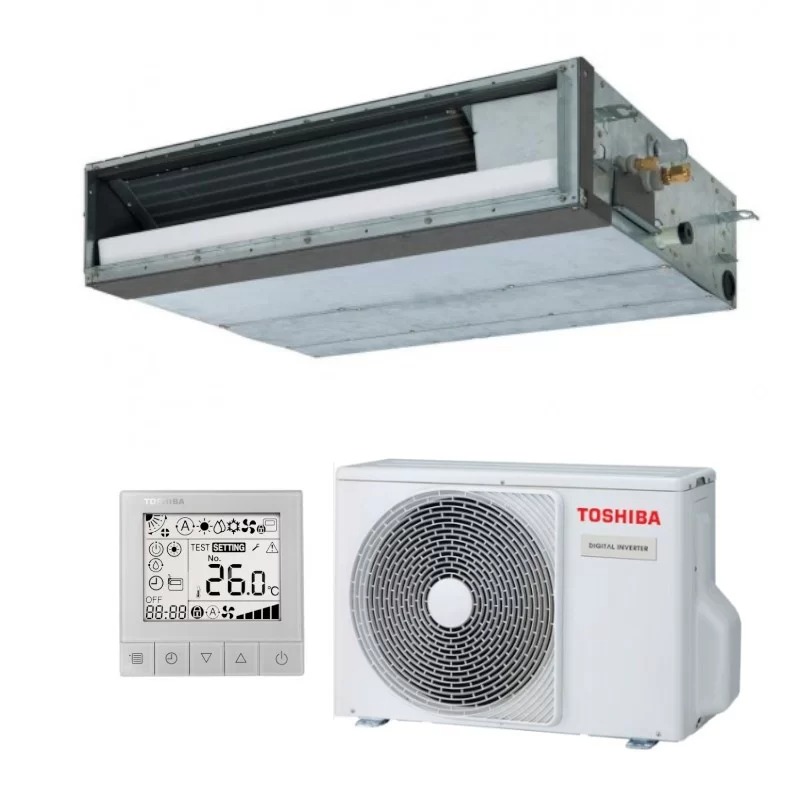

RAV-HM401SDTY-E / RAV-GM402ATP-E
0.00 Kg
Data sheet – The information provided is for reference only. It must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room (m²)
- 25
- WiFi
- Optional
- Capacity
- 3.5 kW / 12000 BTU
- Rated heating capacity
- 3.6 kW
- Rated cooling capacity
- 4 kW
- Cooling energy class
- A+
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4
- SEER / Rated cooling energy label
- 6
- Refrigerant
- R32
- Refrigerant line
- 1/4'' – 3/8''
- Power supply
- Single-phase
- Min. sound pressure dB(A)
- 27
- Indoor unit dimensions (mm)
- 210 × 700 × 450
- Outdoor unit dimensions (mm)
- 550 × 780 × 290
