Description

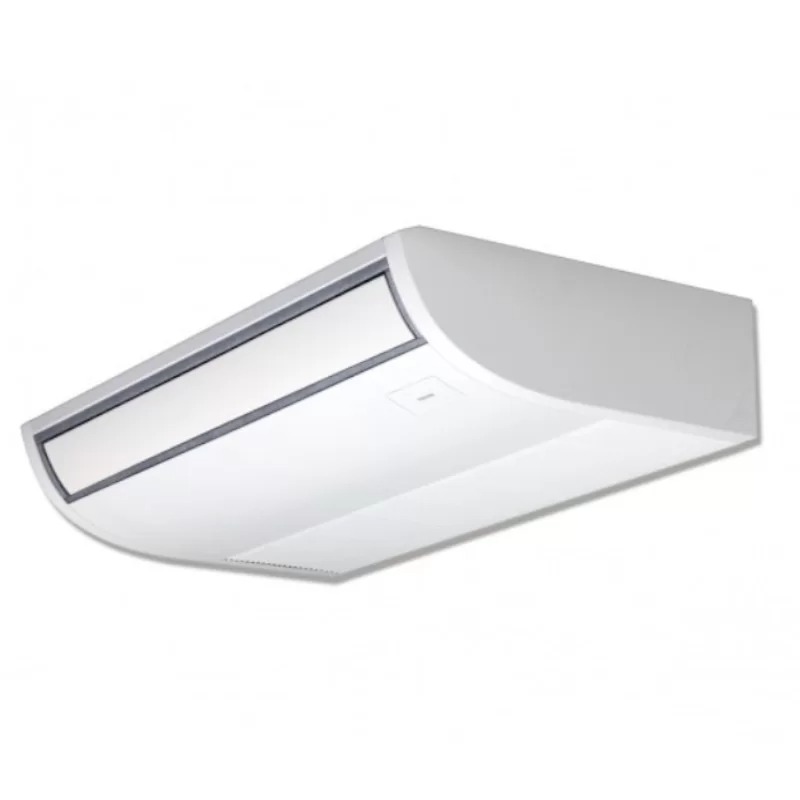

The RAV-CTP ceiling unit stands out in a wide range of settings—mainly commercial—thanks to its outstanding energy performance. Rated A+ for both heating and cooling, it pairs energy savings with eco-friendliness while trimming running costs.
Operating in near-whisper mode, it maintains a comfortable indoor climate. A built-in drying cycle removes leftover moisture after shutdown, keeping the system in peak condition, and upkeep is effortless with a washable air filter.

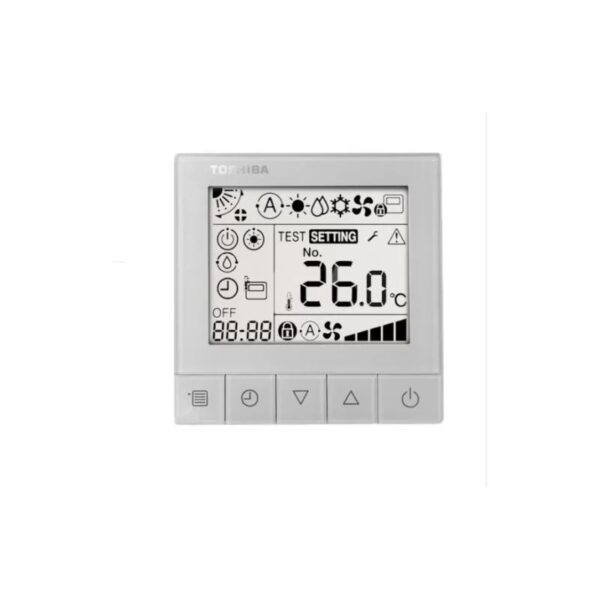

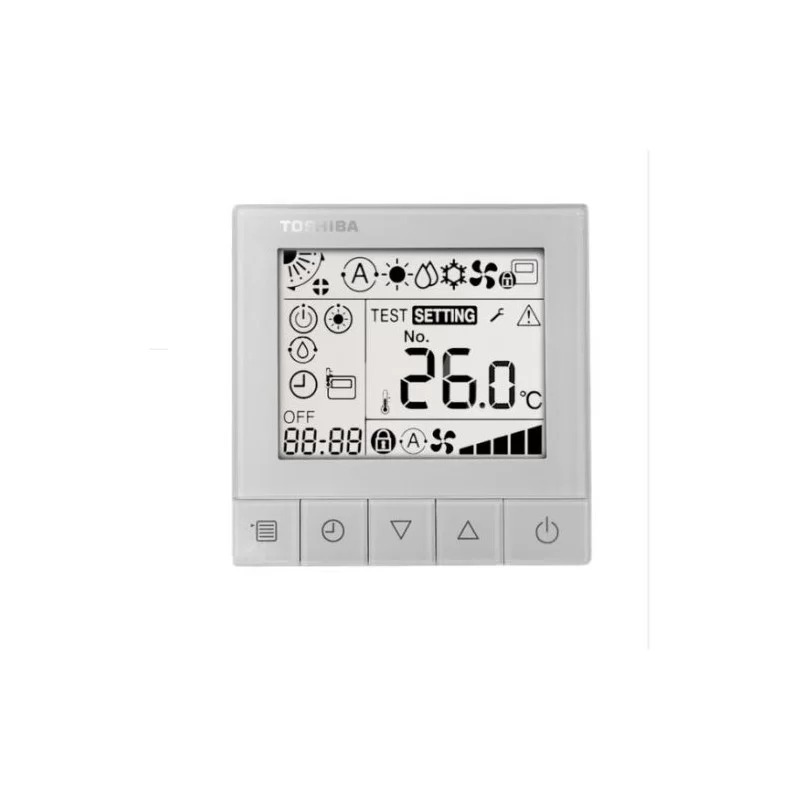

Supplied with an easy-to-use wired controller, the RAV-CTP can also be managed via an optional infrared handset or straight from your smartphone or tablet.
User benefits
- Top-tier energy savings
- Ultra-quiet performance
- Flexible control choices

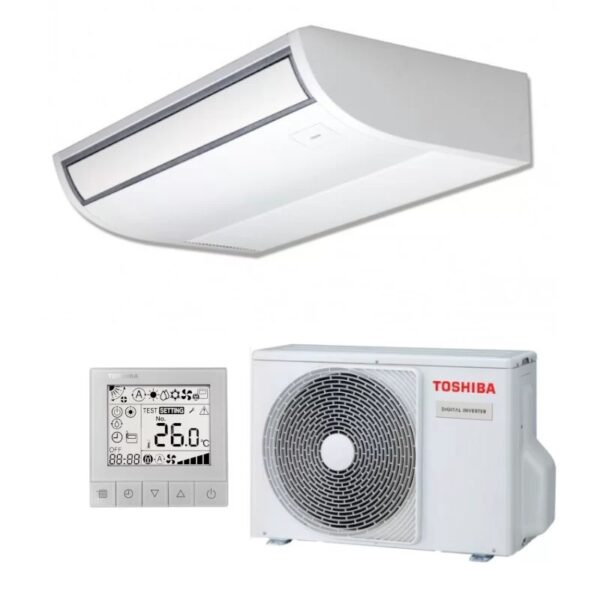

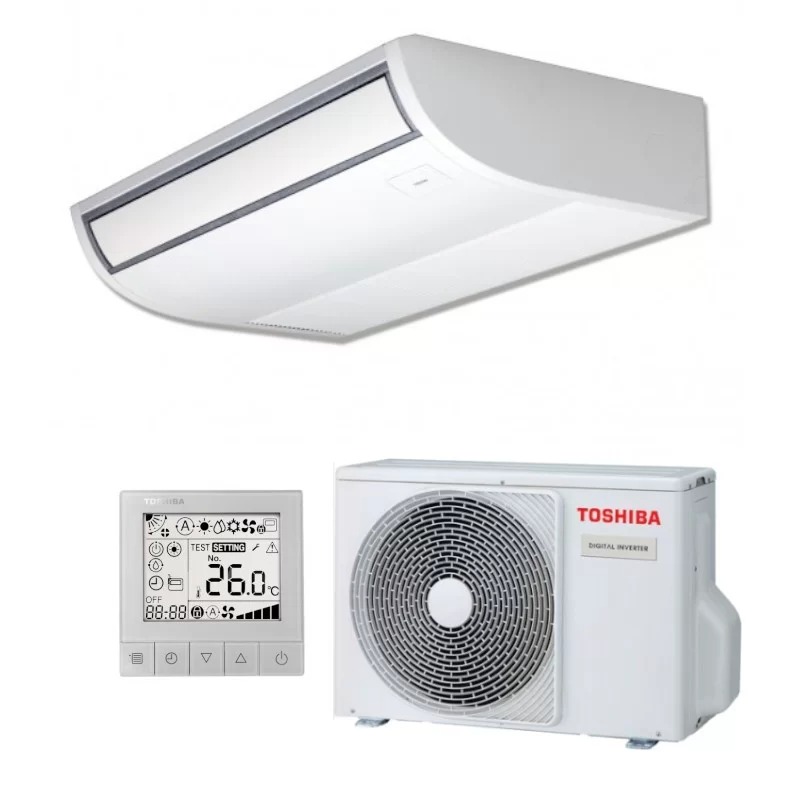

Kit contents
- 1 Indoor unit

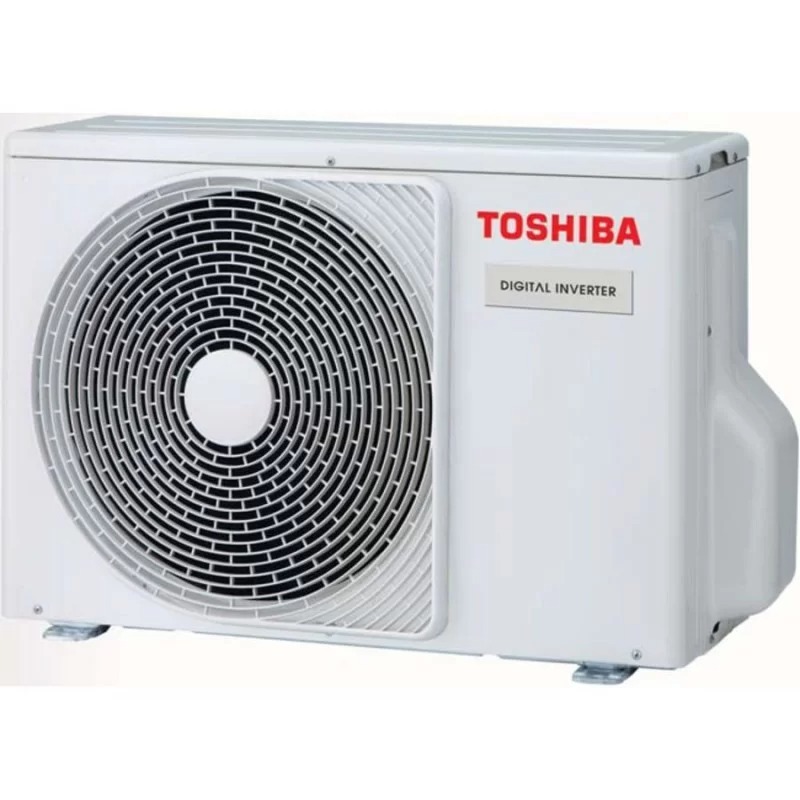

- 1 Outdoor unit
- 1 Wired controller
- 1 User manual
Product details
RAV-HM401CTP-E / RAV-GM402ATP-E
0.00 Kg
Technical sheet - The information provided is for reference only. It must always be verified. Climaled cannot be held liable for errors or misinterpretation.
- Air-conditioning System
- Mono-split
- Indoor Unit Type
- Ceiling cassette
- Room (m²)
- 35
- WiFi
- Optional
- Capacity
- 3.5 kW / 12000 BTUs
- Nominal heating capacity
- 4 kW
- Nominal cooling capacity
- 3.6 kW
- Cooling energy class
- A+++
- Heating energy class
- A++
- SCOP / Nominal heating energy label
- 5.1
- SEER / Nominal cooling energy label
- 7.2
- Refrigerant
- R32
- Refrigerant line
- 1/4'' - 1/2''
- Color
- White, Pearl White
- Voltage
- Single-phase
- Min sound pressure dB(A)
- 28
- Indoor unit dimensions (mm)
- 235 x 950 x 690
- Outdoor unit dimensions (mm)
- 550 x 780 x 290
- Air flow rate (m³/h)
- 900
