Description

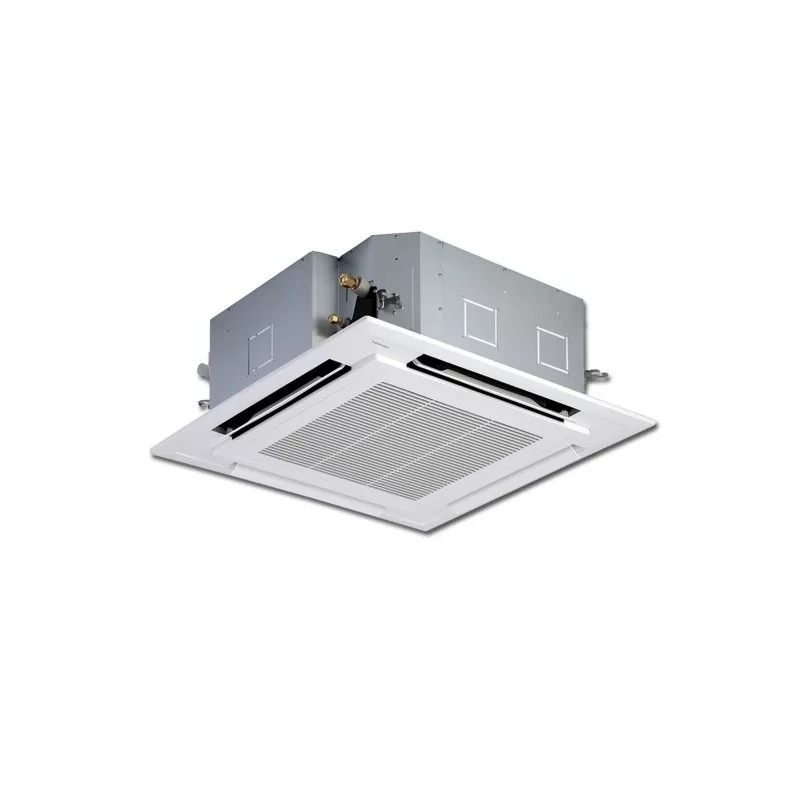

4-way cassette unit engineered for even airflow up to 4.6 m ceiling height. Tailored for compact commercial spaces, it blends discreetly into any interior.
Fits effortlessly in low-ceiling zones:
- Slim chassis only 256 mm (models 56 & 80).
- Built-in condensate pump lifts water 850 mm.
- Upkeep simplified by self-clean mode and silver-treated drain pan for mold resistance.
- Washable filter supplied.
- Lockable mode: heat or cool.

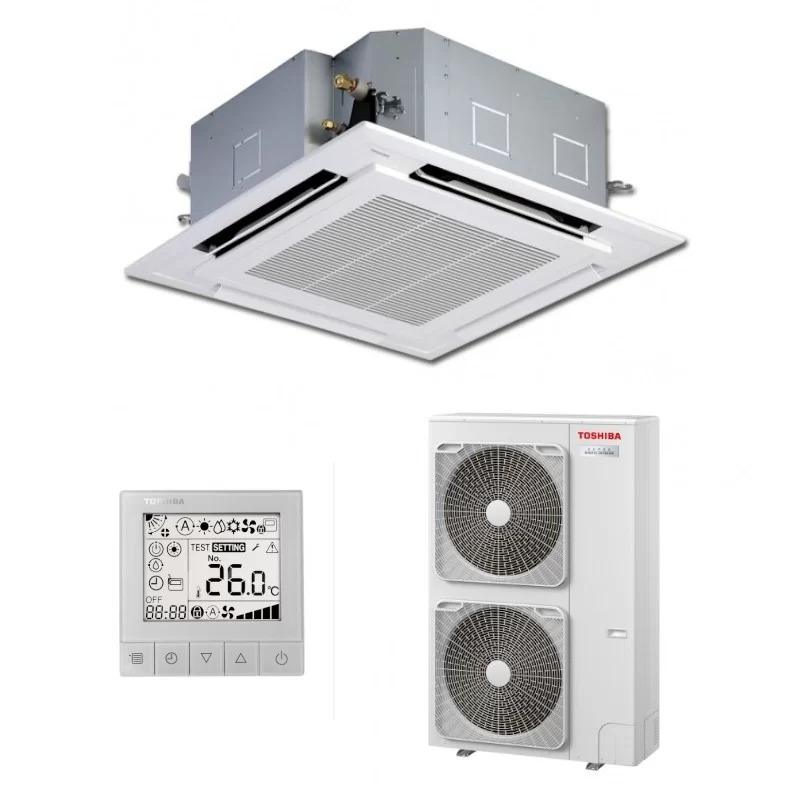

Package contents
- 1 indoor module

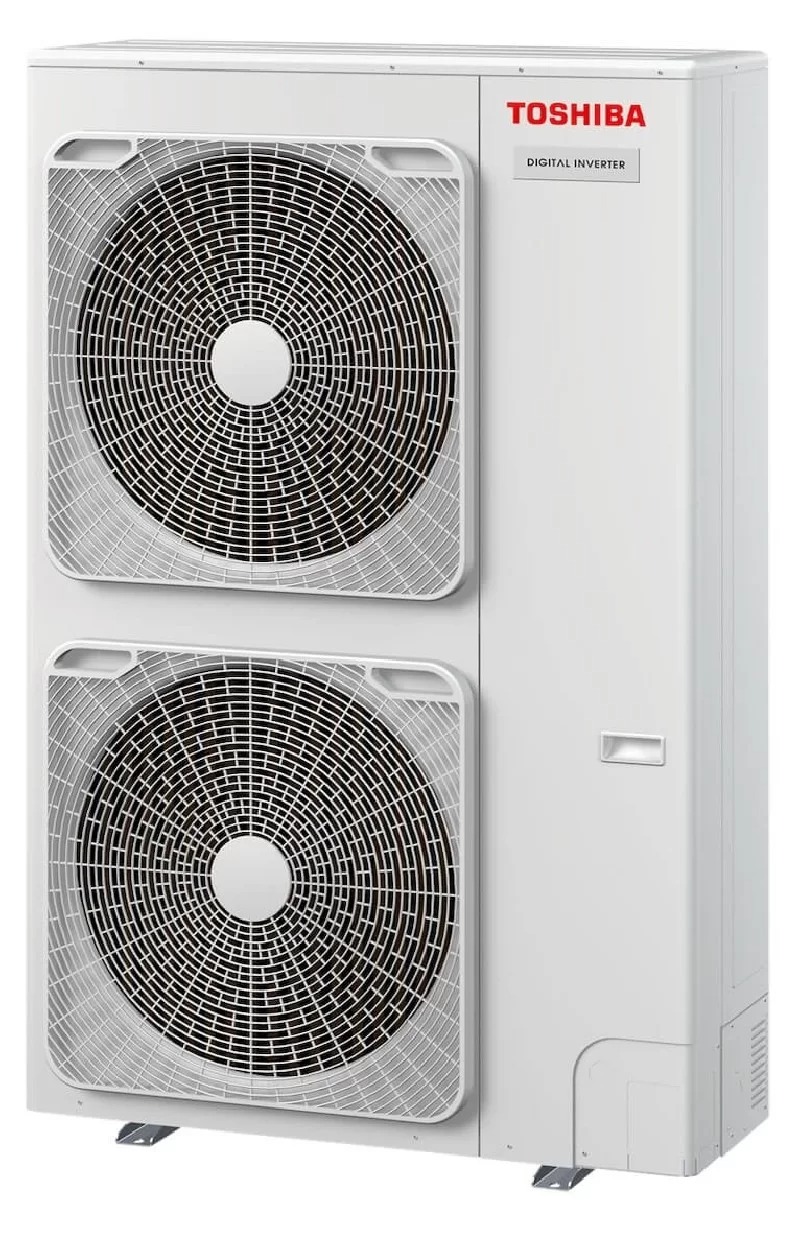

- 1 outdoor module
- 1 front panel

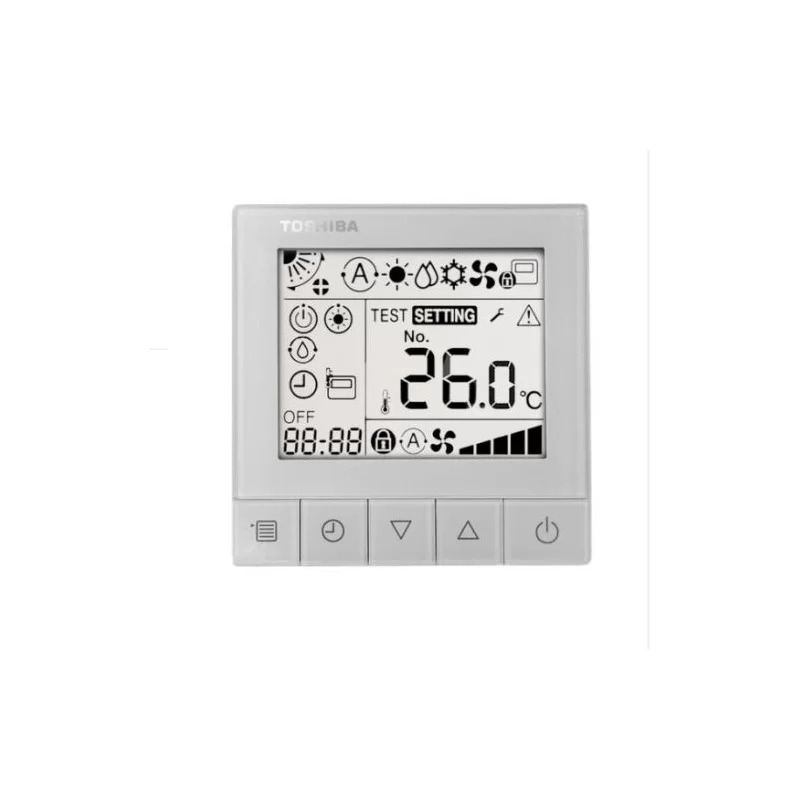

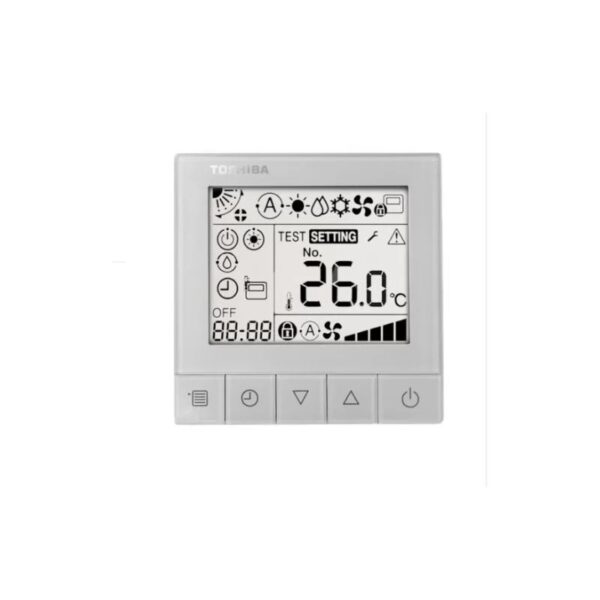

- 1 wired controller
- 1 user manual
Product details
RAV-HM1601UT8-E / RAV-GP1601ATP-
0.00 Kg
Data sheet – The information provided is for documentation purposes only. It must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Cassette
- Room (m²)
- 140
- WiFi
- Optional
- Power
- 14 kW / 47 000 BTU
- Rated heating power
- 14 kW
- Rated cooling power
- 12.5 kW
- SCOP / Rated heating energy label
- 4.36
- SEER / Rated cooling energy label
- 6.72
- Refrigerant
- R32
- Colour
- White, Pearl White
- Voltage
- Three-phase
- Min. sound pressure dB(A)
- 34
- Panel dimensions (mm)
- 950 × 950 × 30
- Indoor unit dimensions (mm)
- 319 × 840 × 840
- Outdoor unit dimensions (mm)
- 1550 × 1010 × 370
