Description

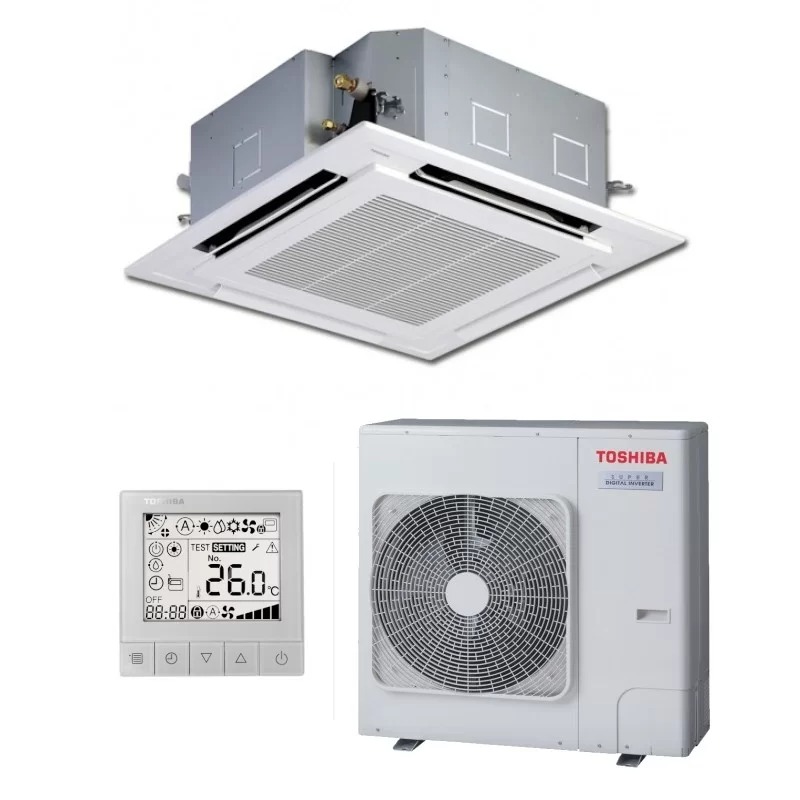

These 4-way cassettes deliver outstanding performance and ideal air distribution. They blend unobtrusively into any interior, perfect for small commercial settings. Effective air throw reaches up to 4.6 m ceiling height, and installation is straightforward even where ceiling voids are shallow.
- Ultra-slim height: just 256 mm for sizes 56 and 80.
- Condensate pump lifts water 850 mm above the unit base.
- Upkeep is effortless with a self-cleaning feature and silver-treated drain pan for mold resistance.
- Washable filter supplied.
- Mode lock option for heating or cooling.
Kit contents

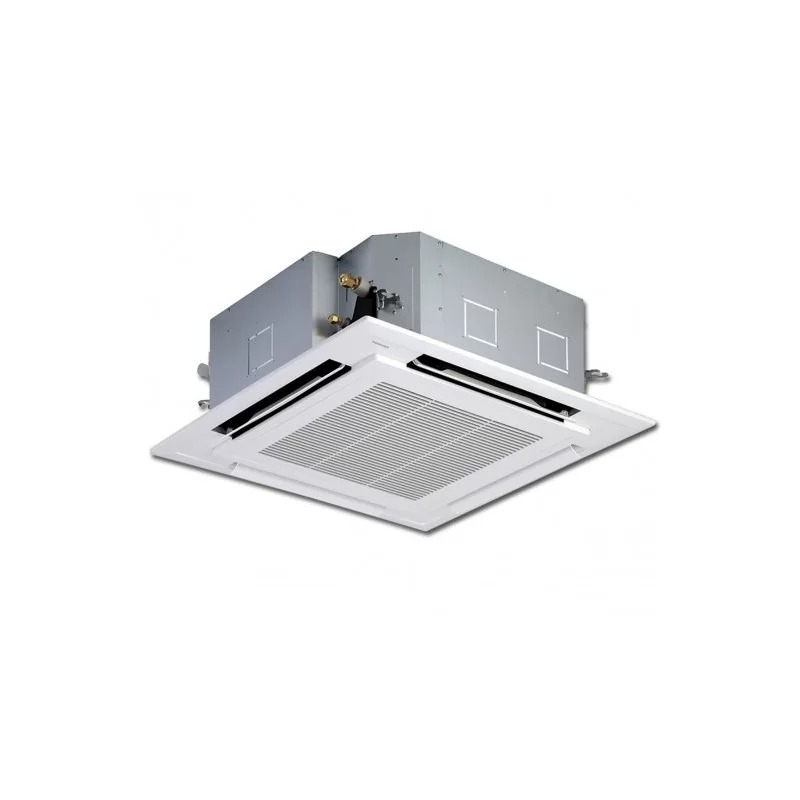

- 1 Indoor unit

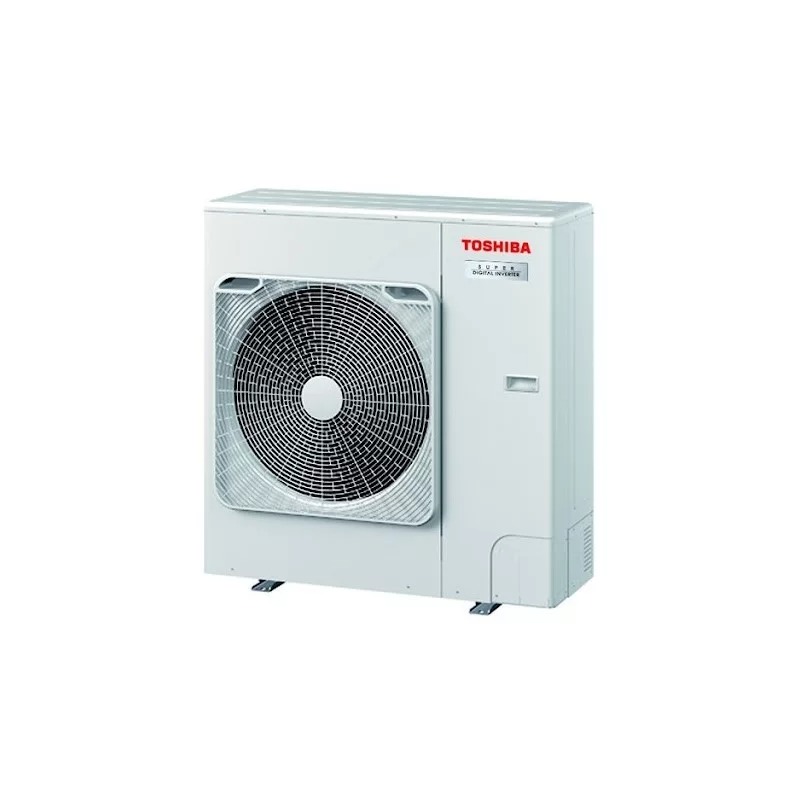

- 1 Outdoor unit
- 1 Front panel

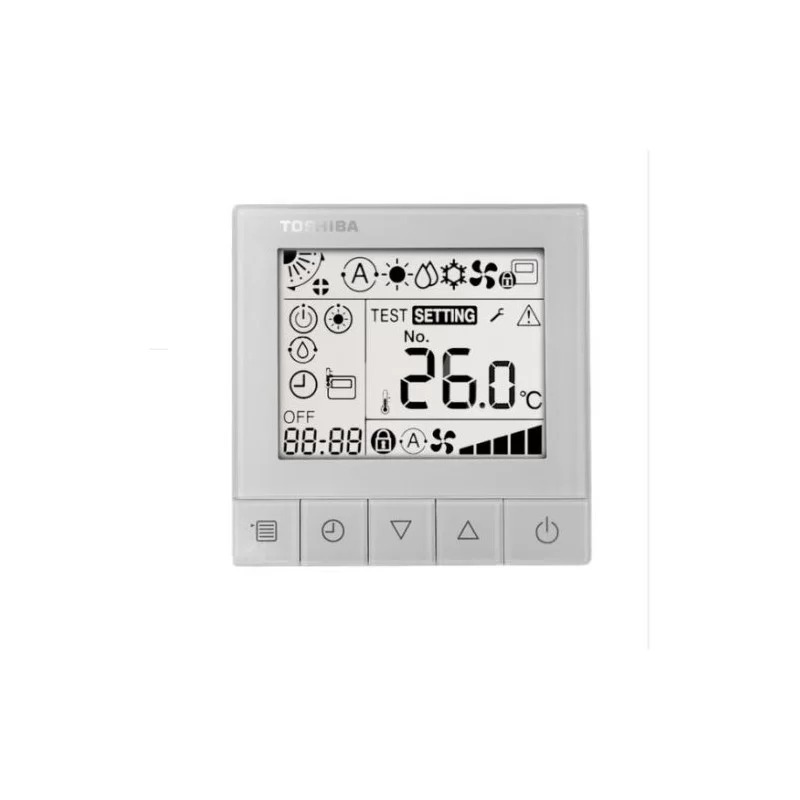

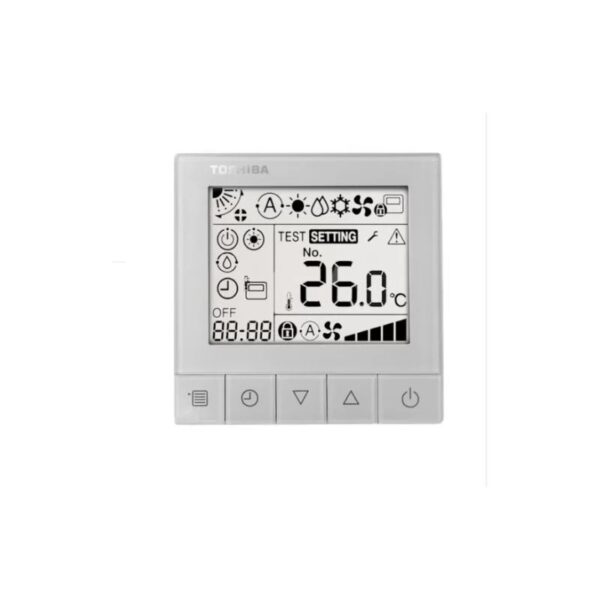

- 1 Wired controller
- 1 User manual
Product details
RAV-HM1401UTP-E / RAV-GM1402ATW-E
0.00 Kg
Data sheet – The information shown is for reference only. It must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Cassette
- Room (m²)
- 120
- WiFi
- Optional
- Power
- 12.5 kW / 45000 BTU
- Nominal heating power
- 13 kW
- Nominal cooling power
- 12 kW
- Cooling energy class
- A+
- Heating energy class
- A+
- SCOP / Nominal heating energy label
- 4.29
- SEER / Nominal cooling energy label
- 5.71
- Refrigerant
- R32
- Refrigerant line
- 3/8'' – 5/8''
- Colour
- White, Pearl White
- Voltage
- Single-phase
- Min sound pressure dB(A)
- 34
- Panel dimensions (mm)
- 950 × 950 × 30
- Indoor unit dimensions (mm)
- 319 × 840 × 840
- Outdoor unit dimensions (mm)
- 890 × 900 × 320
