Coolexia, Europe's leading air conditioning specialist
Description
Our 4-way cassettes ensure outstanding performance and optimal airflow distribution. They blend discreetly into any interior and are perfect for light commercial use. They deliver air throw up to 4.6 m ceiling height and install easily in rooms with limited false-ceiling space:
- Ultra-slim height of just 256 mm (sizes 56 and 80).
- Condensate lift pump raising water 850 mm from the unit bottom.
- Maintenance made easy with self-cleaning mode and silver-treated drain pan for anti-mold protection.
- Washable filter supplied.
- Mode lock option for heating or cooling.
Kit contents:
- 1 indoor unit

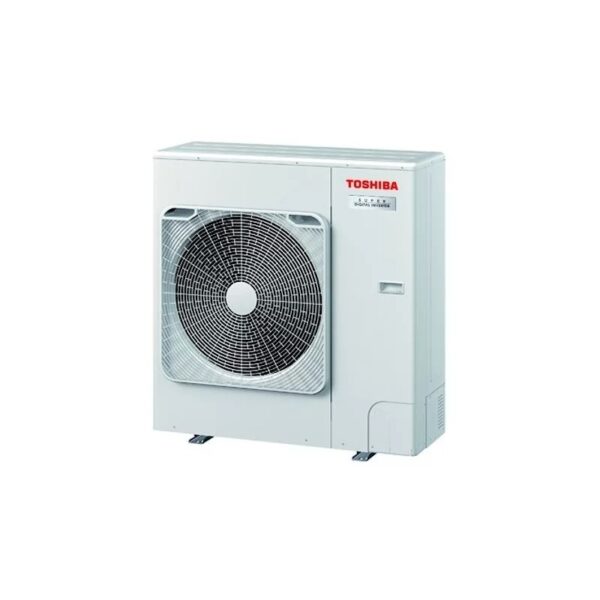

- 1 outdoor unit
- 1 front panel

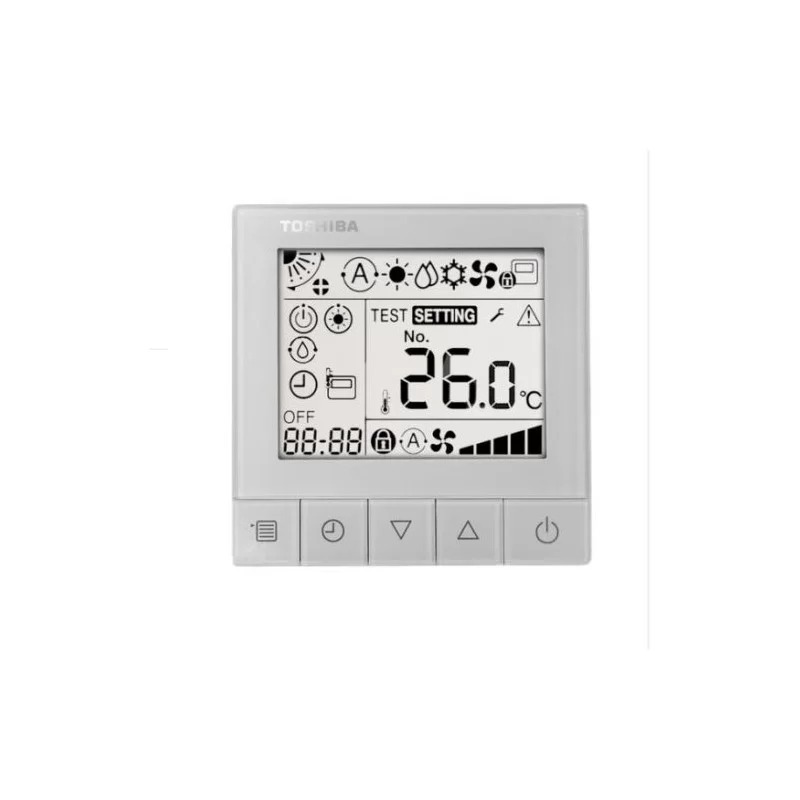

- 1 wired controller
- 1 user manual
Product details
RAV-HM1401UTP-E / RAV-GM1402AT8W
0.00 Kg
Technical sheet – The information shown is for reference only. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Cassette
- Room (m²)
- 120
- WiFi
- Optional
- Power
- 12.5 kW / 45,000 BTU
- Rated heating capacity
- 13 kW
- Rated cooling capacity
- 12 kW
- Cooling energy class
- A+
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4.29
- SEER / Rated cooling energy label
- 5.71
- Refrigerant
- R32
- Refrigerant lines
- 3/8'' – 5/8''
- Colour
- White, Pearl White
- Voltage
- Three-phase
- Min sound pressure dB(A)
- 34
- Panel dimensions (mm)
- 950 × 950 × 30
- Indoor unit dimensions (mm)
- 319 × 840 × 840
- Outdoor unit dimensions (mm)
- 890 × 900 × 320
Specific references
