Description
The 4-way cassette units deliver top-tier performance and even air distribution. They blend stylishly into any setting, perfect for light commercial use, throwing air up to 4.6 m below ceiling level. Installation is effortless, even where false-ceiling space is tight:
- Ultra-slim height of only 256 mm (sizes 56 and 80).
- Built-in condensate pump lifting water 850 mm.
- Low-maintenance design with self-cleaning mode and silver-treated drain pan for anti-mold protection.
- Supplied with a washable filter.
- Selectable lock for heating or cooling mode.

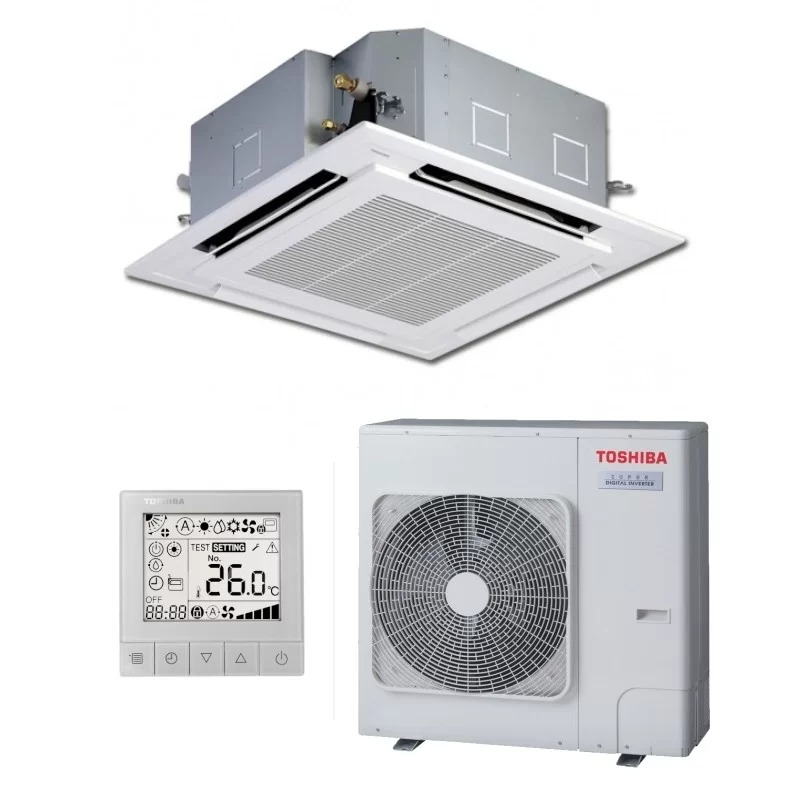

Kit contents

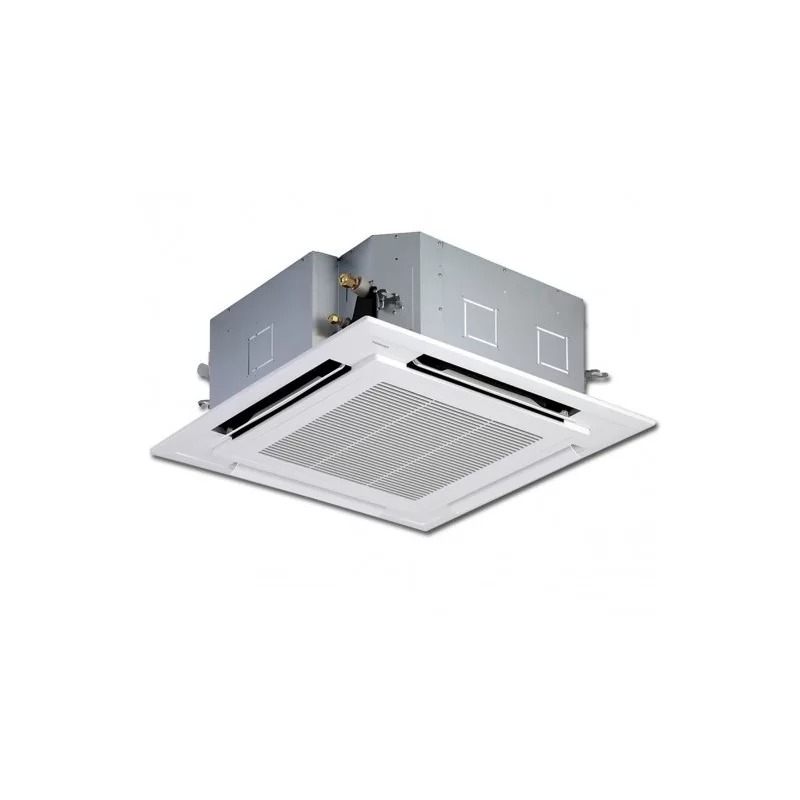

- 1 indoor unit

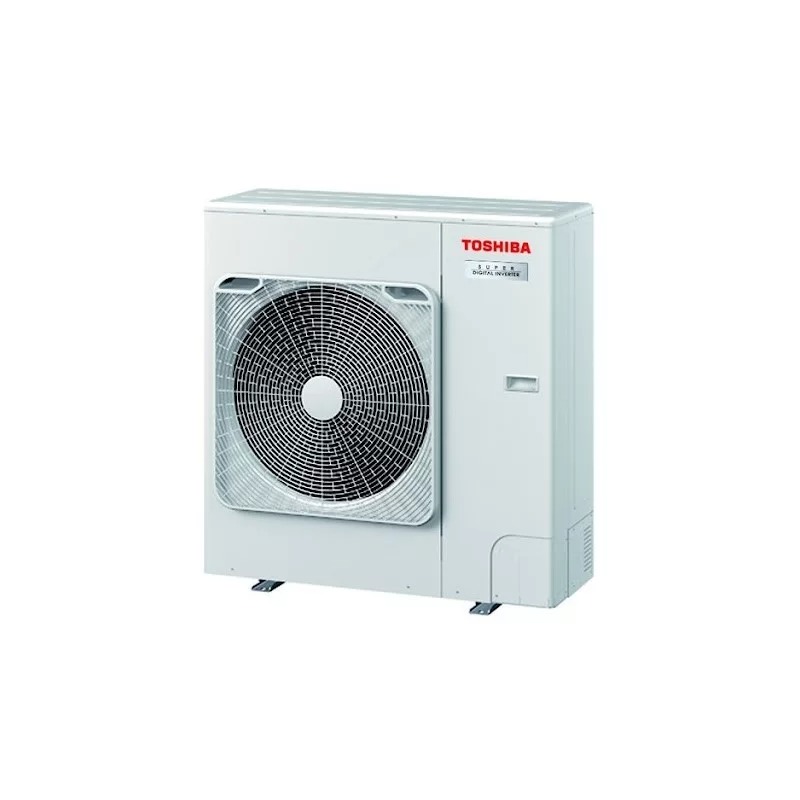

- 1 outdoor unit
- 1 front panel

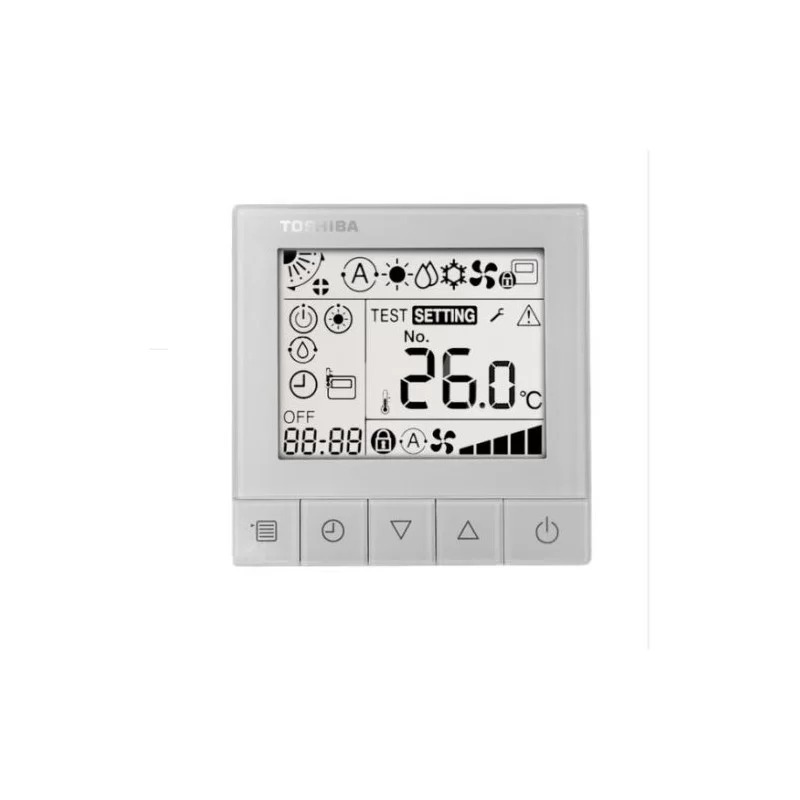

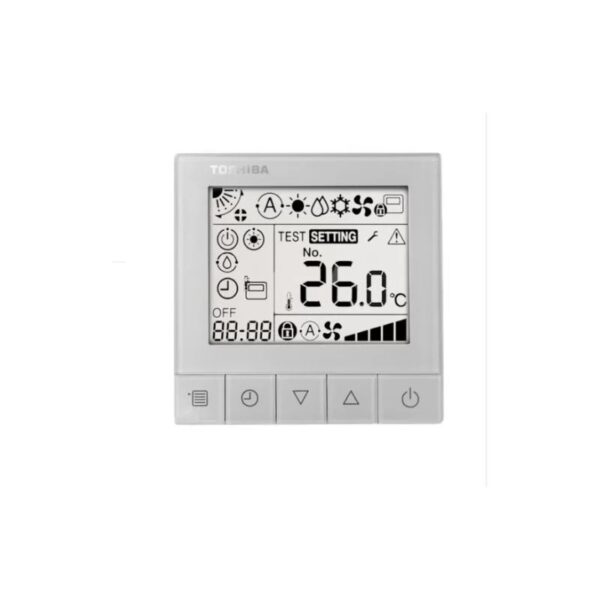

- 1 wired controller
- 1 user manual
Product details
RAV-HM1101UTP-E / RAV-GM1101AT8P
0.00 Kg
Technical sheet – The information shown is for reference only. It must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Cassette
- Room (m²)
- 100
- WiFi
- Optional
- Power
- 10 kW / 36000 BTUs
- Nominal heating capacity
- 11.2 kW
- Nominal cooling capacity
- 9.5 kW
- Cooling energy class
- A++
- Heating energy class
- A+
- SCOP / Nominal heating energy label
- 4.28
- SEER / Nominal cooling energy label
- 6.15
- Refrigerant
- R32
- Refrigerant line
- 3/8'' - 5/8''
- Color
- White, Pearl White
- Voltage
- Three-phase
- Min sound pressure dB(A)
- 33
- Panel dimensions (mm)
- 950 x 950 x 30
- Indoor unit dimensions (mm)
- 319 x 840 x 840
- Outdoor unit dimensions (mm)
- 890 x 900 x 320
Specific references
