Coolexia, Europe's leading air conditioning specialist
Description

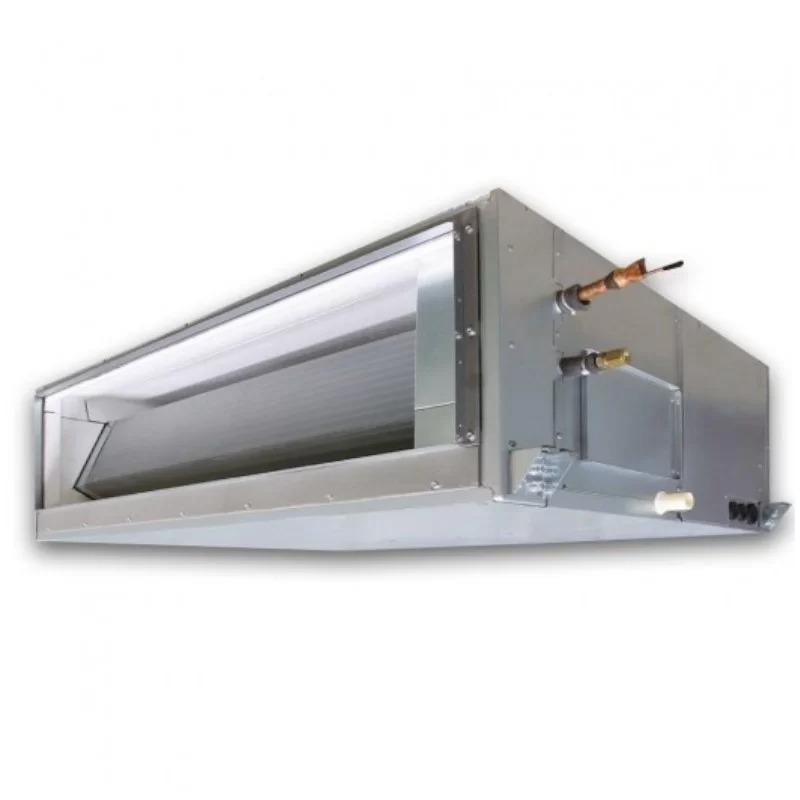

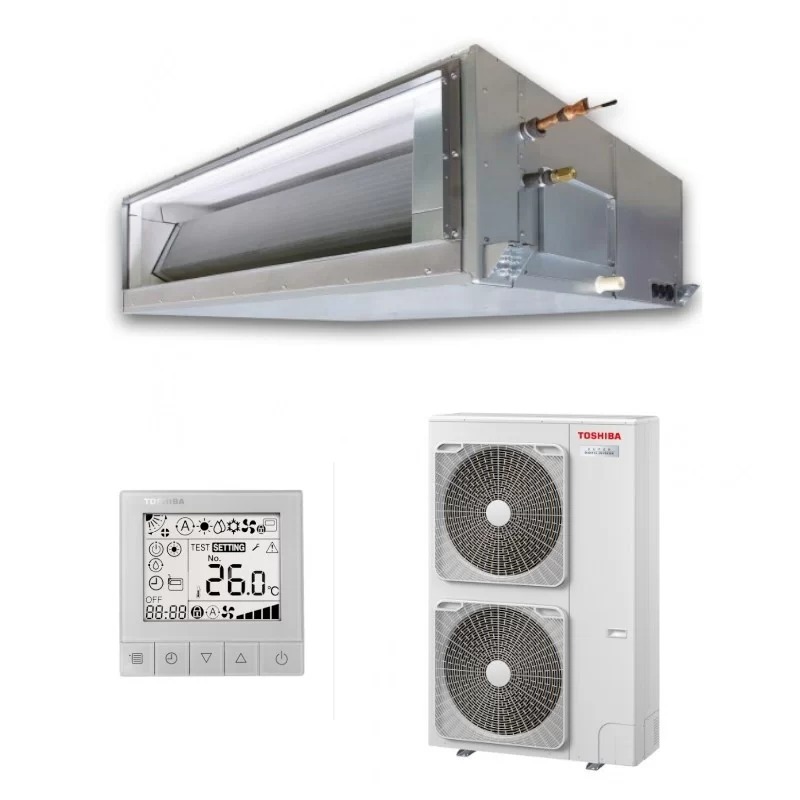

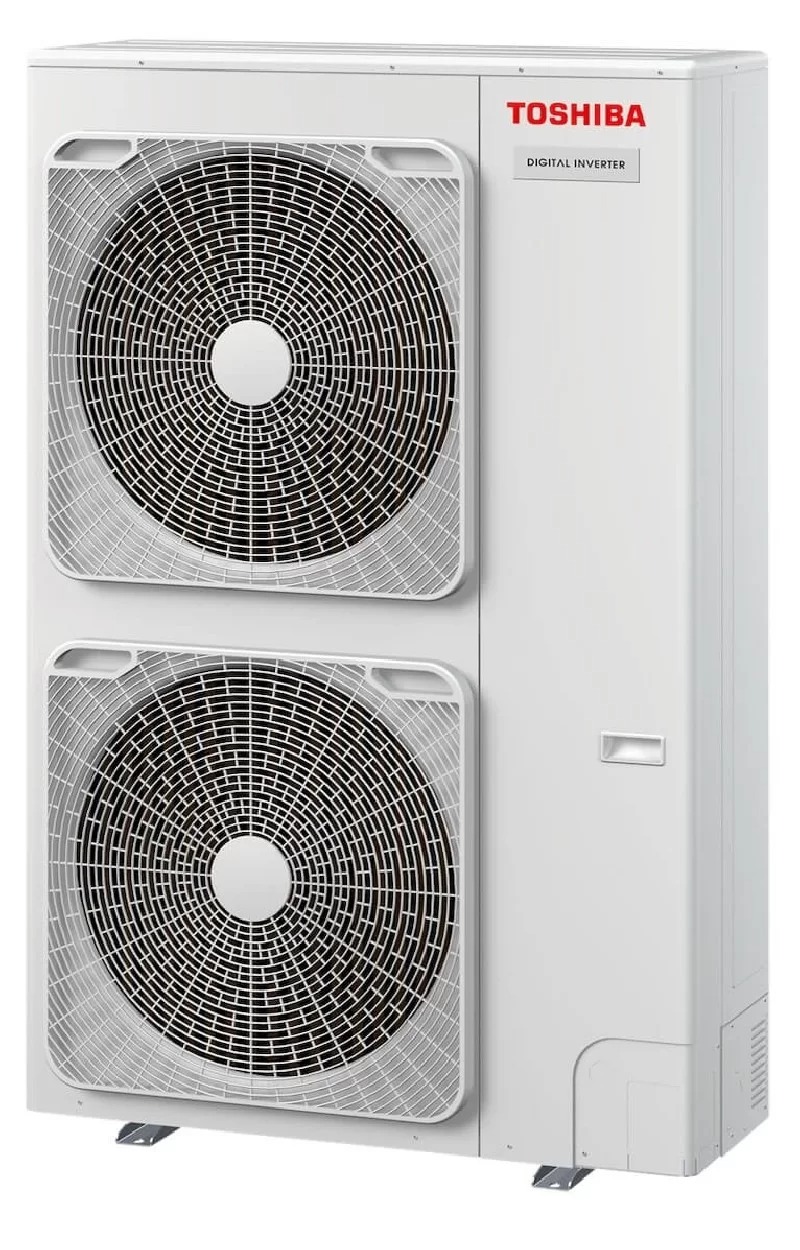

The RAV-DTP high-pressure ducted air conditioner is engineered for expansive spaces, delivering peak output when paired with the Big Digital Inverter (400V) outdoor unit.
A 7-speed DC motor reaching up to 250 Pa secures a broad modulation range and effortless setup, perfect for large-scale installations.
User benefits
- Tailored for sizeable applications
- Robust DC motor for top-tier performance
- Extended duct runs for maximum layout freedom
Product details
RAV-GM2801AT8-E / RAV-RM2801DTP-E2
0.00 Kg
Technical sheet - The information shown is for documentation purposes only. It must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning System
- Mono-split
- Indoor Unit Type
- Ducted
- WiFi
- Optional
- Power
- 22 kW / 75000 BTUs
- Rated heating capacity
- 27 kW
- Rated cooling capacity
- 22.5 kW
- SCOP / Rated energy label heating
- 3.69
- SEER / Rated energy label cooling
- 5.49
- Refrigerant
- R32
- Refrigerant lines
- 1’’ 1/8 - 1/2’’
- Voltage
- Three-phase
- Min sound pressure dB(A)
- 38
- Indoor unit dimensions (mm)
- 448 x 1400 x 900
- Outdoor unit dimensions (mm)
- 1550 x 1010 x 370
