Description
Four Panel Styles

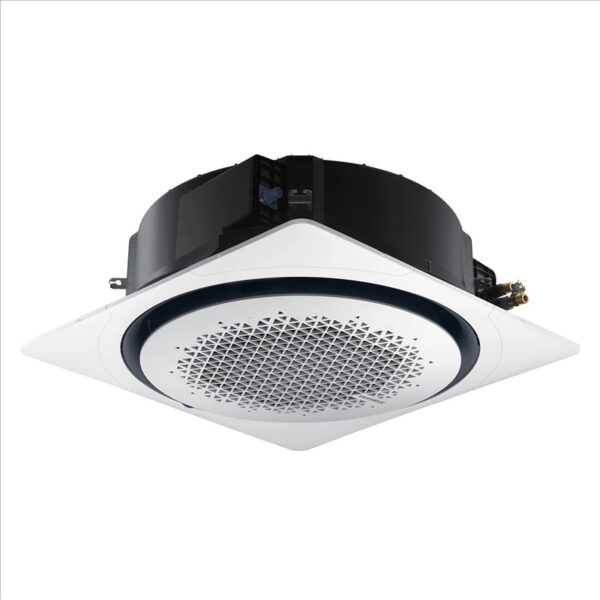

To meet any design or architectural need, the Samsung 360 cassette offers four interchangeable panels: round or square, finished in white or black.
Circular Air Distribution
A ring-shaped heat exchanger and a unique discharge ring deliver conditioned air evenly in every direction.
Indirect Horizontal Blow
Built-in Booster Fans push the airflow along the ceiling, using the Coanda effect to eliminate drafts and encourage natural convection. Removing conventional louvers boosts airflow by 25 %.
Technical Data
- Cooling range: 7.1 – 14 kW (single & three-phase)
- Retains 98 % capacity at –5 °C
- 360° airflow: direct or indirect
- Low-profile design for discreet ceiling integration
- Four panels: round or square, white or black
- Optional Samsung Virus Doctor air-purifier
- TWIN / TRI / QUAD setups: connect up to four cassettes to one outdoor unit
- Optional Wi-Fi control from smartphone or tablet
Kit Contents
- 1 indoor unit
- 1 front panel

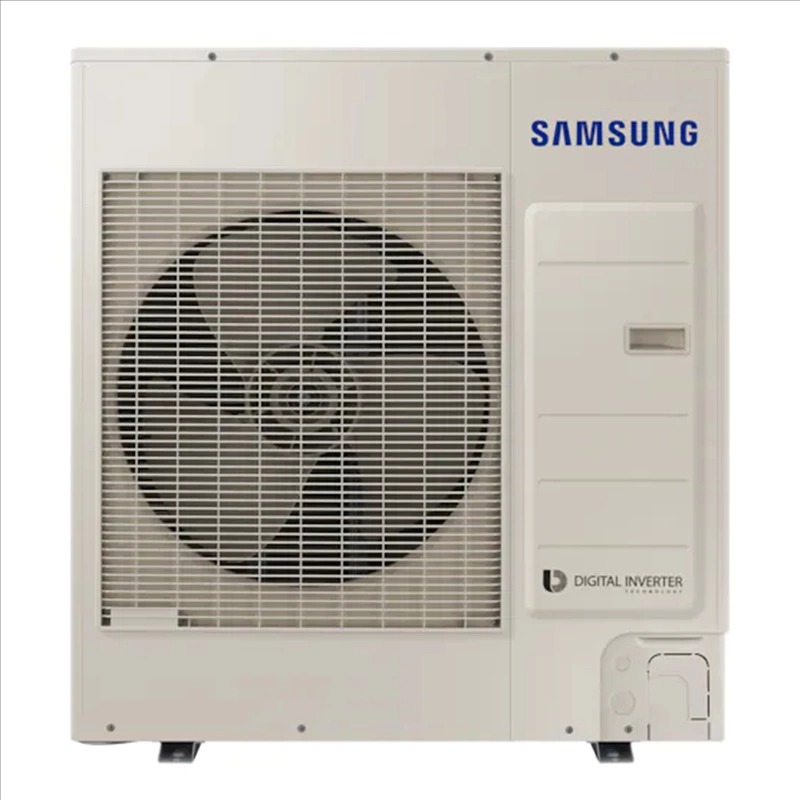

- 1 outdoor unit
- 1 remote controller
- 1 user manual
Additional information
| FAÇADE : | |
|---|---|
| TÉLÉCOMMANDE : | |
| WIFI : |
Product details
AC100RN4PKG / AC100RXADNG / No WiFi / PC6NUSMANW / AR-CH01E
2.00 Kg
Technical sheet – The information shown is for reference only. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Cassette
- Room (m²)
- 100
- WiFi
- Optional
- Power
- 10 kW / 36000 BTUs
- Heating rated power
- 11.2 kW
- Cooling rated power
- 10 kW
- Cooling energy class
- A++
- Heating energy class
- A+
- SCOP / Heating rated energy label
- 4.3
- SEER / Cooling rated energy label
- 6.8
- Refrigerant
- R32
- Refrigeration connection
- 3/8'' – 5/8''
- Colour
- White, Pearl White
Black, Onyx Black - Voltage
- Three-phase
- Min sound pressure dB(A)
- 33
- Panel dimensions (mm)
- 1000 x 66 x 1000
- Indoor unit dimensions (mm)
- 947 x 365 x 947
- Outdoor unit dimensions (mm)
- 940 x 998 x 330
Specific references
- EAN13
- 8801643769543
