Description

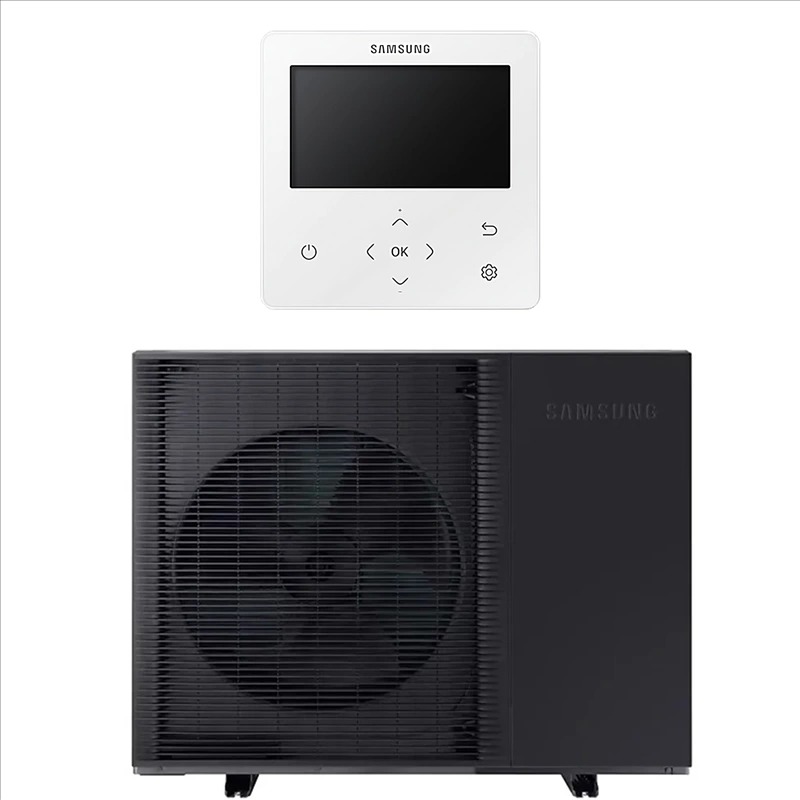

The EHS Monobloc HT Quiet runs whisper-soft, holding noise down to 35 dB(A) through cutting-edge tech and a four-stage hush mode.

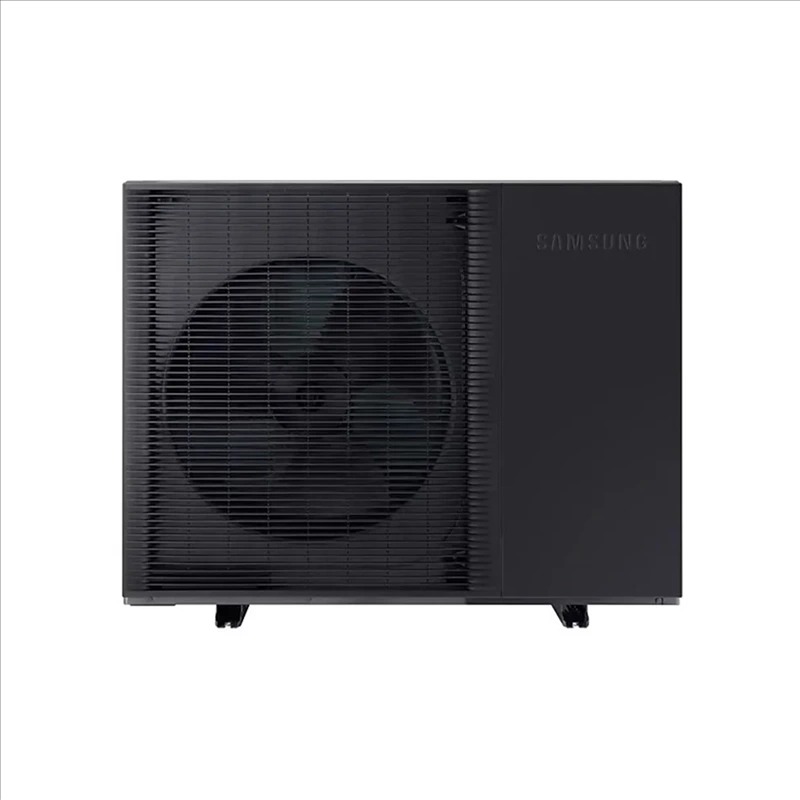

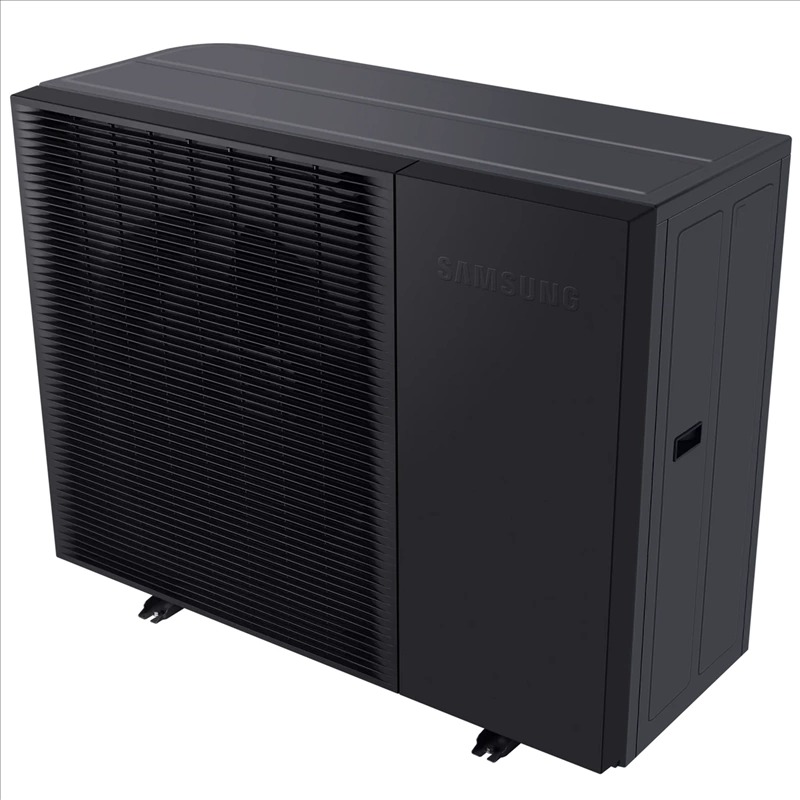

A twin-layer acoustic shell plus Groove Grid Felt technology lets the outdoor unit hush vibration and component sounds.
High-temperature heating
Tailored for older homes with radiators, the EHS Monobloc R290 supplies hot water up to 75 °C, meeting tough heating demands.
It cleanly swaps out legacy gas boilers for a modern, high-output setup.
Eco-friendly R290
Charged with low-GWP R290 (3), this heat pump complies with EU F-gas rules and offers a greener step up from R32.
R290-ready internals keep refrigerant safely separated for steady performance.

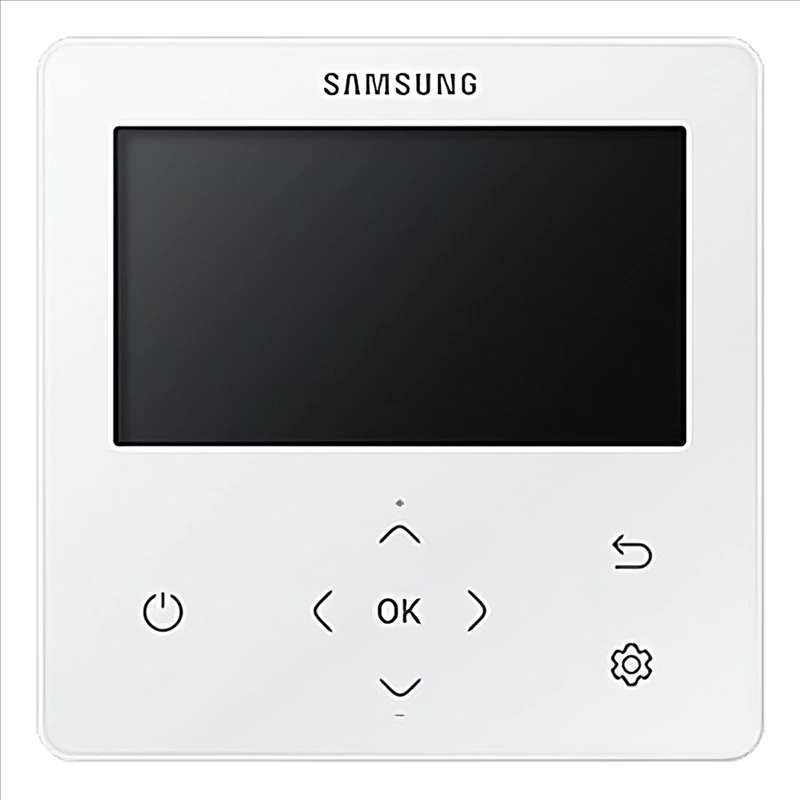

Smart energy control
Via SmartThings Energy, automate routines and flick on savings mode to trim power use.
Built-in hydraulic module
The outdoor section packs a full hydraulic kit—expansion vessel, circulator pump and flow sensor—all inside.
Product details
AE160CXYBGK / MWR-WW10N
0.00 Kg
Technical sheet - The information shown is for reference only. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- WiFi
- Built-in
- Power
- 16 kW / 54000 BTUs
- Rated heating capacity
- 16 kW
- Rated cooling capacity
- 14 kW
- SEER / Rated cooling energy label
- 5
- Operating mode
- Heating and cooling
- Integrated tank
- No
- Refrigerant
- R290
- Colour
- Black, Onyx black
- Voltage
- Three-phase
- Water 35ºC energy class
- A+++
- Water 55ºC energy class
- A++
- SCOP - Water outlet 35ºC
- 4.7
- SCOP - Water outlet 55ºC
- 3.55
- Min sound pressure dB(A)
- 35
- Max water outlet temp
- 70ºC
- Outdoor unit dimensions (mm)
- 1270 x 1018 x 530
- Heating time
- 75 ºC
- Warranty
- 3 years
- DHW hydraulic connection
- G1''
- Backup heater
- 150 W
