Description

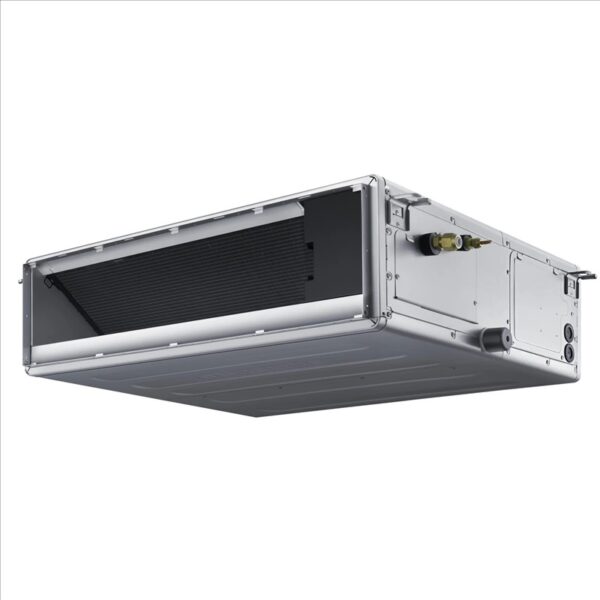

Thanks to an ultra-compact footprint, Samsung ducted modules slip into any ceiling void. The 20/25 kW versions split into two separate sections, making both installation and future servicing far simpler. Maintenance is easier than ever with full access to the indoor section from top, bottom and side.
Precision temperature control
Every indoor ducted unit (AHU kit) carries an intelligent supply-air temperature manager that delivers ideal comfort without touching outdoor-unit settings. Switch between heating and cooling modes with a single remote that works with every Samsung ducted or AHU system.
Auto ESP tuning
The built-in automatic external static pressure (ESP) tuner sets the fan’s ideal operating window, striking the perfect balance of quiet, comfort and efficiency. Activation is quick—just ask your Samsung representative which models support the feature.
Key specifications
- External static range: 0–14 mmAq.
- Electronic EEV valve for pinpoint refrigerant control.
- Long-life washable permanent filter.
- Auto-restart on power recovery.
- Condensate lift pump rated 750 mmH₂O.

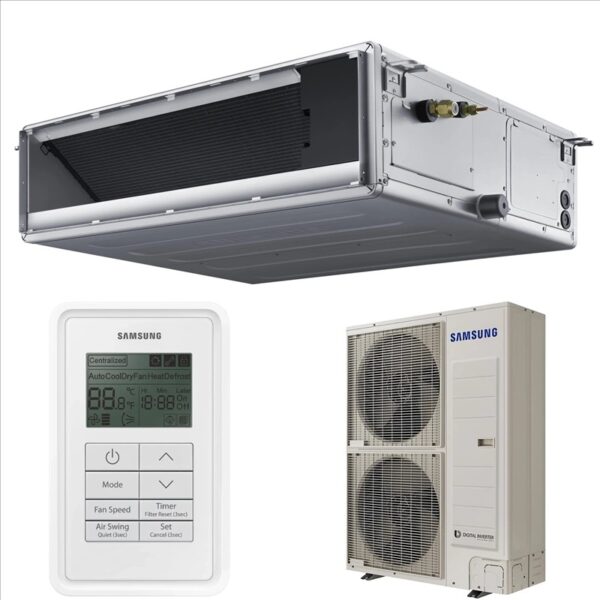

Kit contents
- 1 reversible indoor unit
- 1 reversible outdoor unit
- 1 MWR-WG00JN remote control
- 1 user manual
Additional information
| TÉLÉCOMMANDE : | |
|---|---|
| WIFI : |
Product details
AC140RNMDKG / AC140RXADKG / Without WiFi-MWR-SH00N
0.00 Kg
Data sheet - The information provided is for reference only. These details must always be verified. Climaled accepts no liability for any errors or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room (m²)
- 140
- WiFi
- Optional
- Power
- 14 kW / 47000 BTUs
- Rated heating capacity
- 15.5 kW
- Rated cooling capacity
- 13.4 kW
- Cooling energy class
- A+
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4
- SEER / Rated cooling energy label
- 6
- Refrigerant
- R32
- Refrigeration connection
- 3/8'' - 5/8''
- Colour
- Grey, Silver, Graphite, Silver, Steel
- Voltage
- Single-phase
- Min sound pressure dB(A)
- 30
- Indoor unit dimensions (mm)
- 1300 x 300 x 700
- Outdoor unit dimensions (mm)
- 940 x 1210 x 330
Specific references
- EAN13
- 8801643769680
