Description

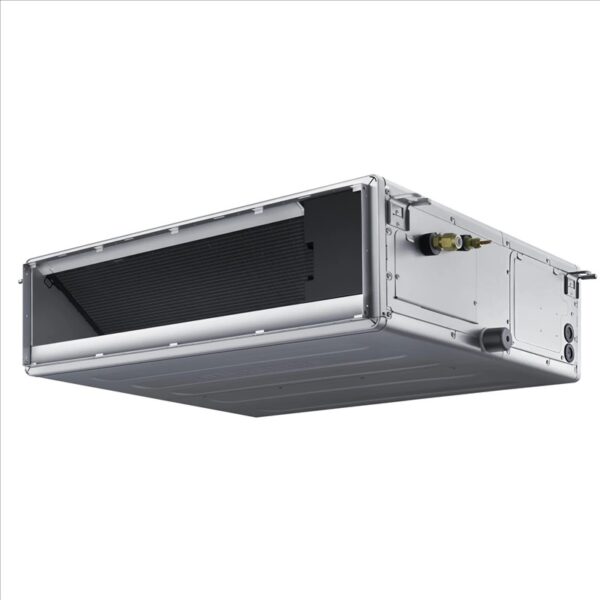

Engineered for versatile placement, Samsung ducted units stand out with an ultra-slim footprint that fits any setting. The 20/25 kW versions can be split in two, streamlining both setup and servicing. Top, bottom or side entry to the indoor module makes maintenance remarkably straightforward.
Pin-point indoor temperature management
Every ducted indoor unit (AHU kit) packs an advanced supply-air temperature control that keeps comfort spot-on without touching the outdoor unit. Cooling or heating modes are toggled effortlessly through the remote, which pairs with every ducted or AHU arrangement.
Auto external static pressure (ESP) tuning
The built-in auto ESP tuning picks the ideal fan operating band, striking the perfect balance among comfort, noise and efficiency. Setup is quick and simple; ask your Samsung rep for the models that include it.
Technical specifications
- External static pressure adjustable from 0 to 14 mmAq.
- On-board electronic expansion valve (EEV) for exact refrigerant flow.
- Long-life washable permanent filter supplied.
- Auto-restart function.
- Built-in condensate lift pump (750 mmH2O).
Kit contents
- 1 reversible indoor unit
- 1 reversible outdoor unit
- 1 MWR-WG00JN remote control
- 1 user manual
Additional information
| TÉLÉCOMMANDE : | |
|---|---|
| WIFI : |
Product details
AC100RNMDKG / AC100RXADNG / Without WiFi-MWR-SH00N
0.00 Kg
Data sheet – Information shown is for reference only. These details must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ductable
- Room size (m²)
- 100
- WiFi
- Optional
- Capacity
- 10 kW / 36000 BTU
- Rated heating capacity
- 11.2 kW
- Rated cooling capacity
- 10 kW
- Cooling energy class
- A+
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4
- SEER / Rated cooling energy label
- 5.9
- Refrigerant
- R32
- Refrigerant line
- 3/8'' – 5/8''
- Power supply
- Three-phase
- Min sound pressure dB(A)
- 30
- Indoor unit dimensions (mm)
- 1200 × 250 × 700
- Outdoor unit dimensions (mm)
- 940 × 998 × 330
Specific references
- EAN13
- 8801643769567
