Description
Samsung’s ducted systems, thanks to their ultra-compact design, blend effortlessly into any setting. The 20/25 kW versions can be split into two sections, making installation and upkeep simpler. The indoor section opens from top, bottom or side, so servicing stays hassle-free.
Supply-air temperature control
Every AHU kit or concealed indoor unit fine-tunes the delivered-air temperature for extra comfort, without touching the outdoor unit. Heating and cooling modes are set through a remote that pairs with every ducted or AHU arrangement.
Automatic ESP adjustment
The built-in auto-ESP feature balances fan performance, giving the sweet spot of comfort, quiet and efficiency. Activation is straightforward; ask your Samsung rep for compatible models.
Technical specifications
- External static pressure adjustable from 0 to 14 mmAq.
- EEV valve on board for precise refrigerant control.
- Long-life washable filter supplied.
- Auto-restart function.
- Built-in condensate pump (750 mmH2O).

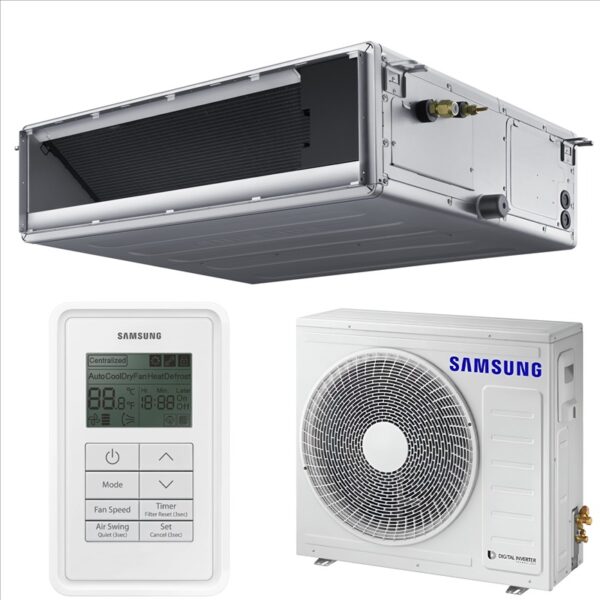

Kit contents
- 1 reversible indoor unit

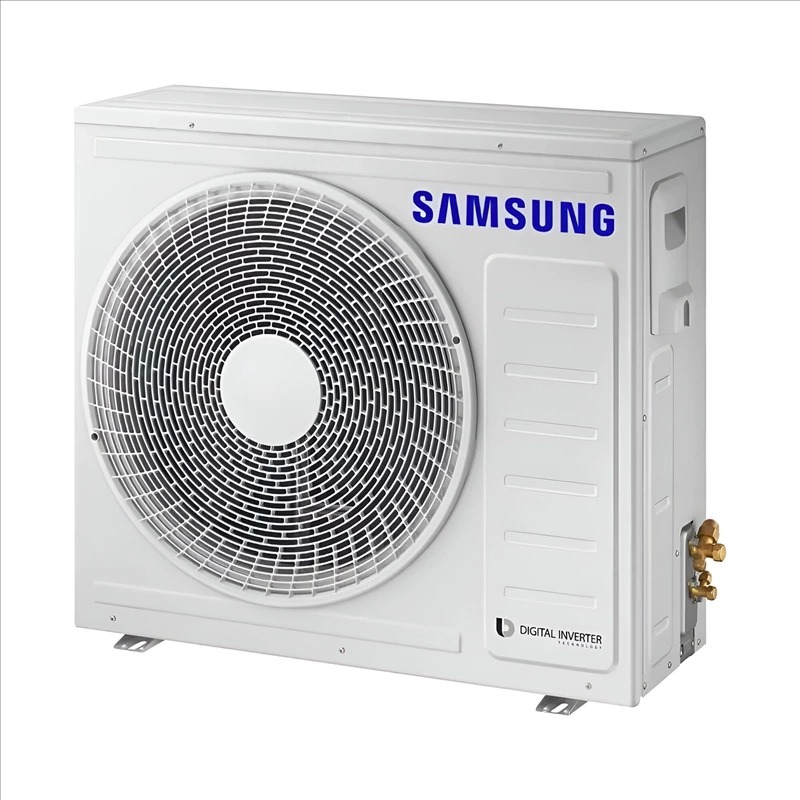

- 1 reversible outdoor unit
- 1 MWR-WG00JN remote
- 1 user manual
Additional information
| TÉLÉCOMMANDE : | |
|---|---|
| WIFI : |
Product details
AC071RNMDKG / AC071RXADKG / No WiFi-MWR-SH00N
0.00 Kg
Technical sheet - The information presented is for documentation purposes only. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room size (m²)
- 70
- WiFi
- Optional
- Capacity
- 7 kW / 24000 BTUs
- Nominal heating capacity
- 8 kW
- Nominal cooling capacity
- 6.8 kW
- Cooling energy class
- A++
- Heating energy class
- A+
- SCOP / Nominal heating energy label
- 4
- SEER / Nominal cooling energy label
- 6.1
- Refrigerant
- R32
- Refrigerant line
- 1/4'' - 5/8''
- Voltage
- Single-phase
- Min sound pressure dB(A)
- 24
- Indoor unit dimensions (mm)
- 850 x 250 x 700
- Outdoor unit dimensions (mm)
- 880 x 798 x 310
Specific references
- EAN13
- 8801643607067
