Description
Sleek, modular design
Samsung’s ultra-slim duct units slip effortlessly into any space. 20 kW and 25 kW models split into two sections, making both setup and upkeep a breeze. Top, bottom or side access to the indoor module turns routine service into a quick task.
Pin-point temperature control
Every ducted unit keeps supply-air temperature on target without touching the outdoor unit. Cooling or heating is selected through a handset that pairs with every duct or AHU system for steady comfort.
Auto external static pressure (ESP) tuning
The ESP feature locks the fan into its sweet-spot range, balancing comfort, quiet and performance with a few taps. Ask a Samsung rep which models carry the option.
Technical specs
- External static pressure: 0 – 14 mmAq adjustable.
- Electronic expansion valve (EEV) for exact refrigerant control.
- Long-life washable filter.
- Auto-restart after power loss.
- Built-in condensate pump (750 mmH₂O).
Kit contents
- 1 reversible indoor unit

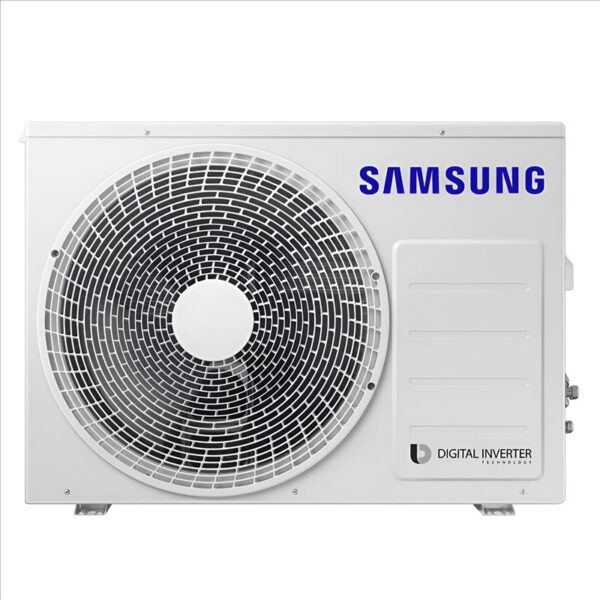

- 1 reversible outdoor unit
- 1 MWR-WG00JN remote
- 1 user manual
Additional information
| TÉLÉCOMMANDE : | |
|---|---|
| WIFI : |
Product details
AC052RNMDKG / AC0525RXADKG / No WiFi-MWR-SH00N
0.00 Kg
Data sheet – The information provided is for reference only and must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room (m²)
- 50
- WiFi
- Optional
- Capacity
- 5 kW / 18000 BTU
- Rated heating capacity
- 6 kW
- Rated cooling capacity
- 5 kW
- Cooling energy class
- A++
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4.1
- SEER / Rated cooling energy label
- 6.3
- Refrigerant
- R32
- Refrigeration piping
- 1/4'' – 1/2''
- Voltage
- Single-phase
- Min. sound pressure dB(A)
- 23
- Indoor unit dimensions (mm)
- 850 × 250 × 700
- Outdoor unit dimensions (mm)
- 880 × 638 × 310
Specific references
- EAN13
- 8801643606985
