Description
Samsung ducted systems stand out for their ultra-compact footprint, slipping effortlessly into any ceiling void. The 20/25 kW variants split into two lightweight modules, speeding up both mounting and future servicing. Technicians can reach the indoor section from top, bottom or side, so every component is within arm’s reach.
Supply-air temperature control
Every indoor ducted unit (AC kit) ships with precision supply-air temperature management, locking in steady comfort without touching the outdoor module. Heating or cooling is commanded straight from the wireless controller, compatible with all ducted or AHU layouts.
Auto external static pressure (ESP) tuning
The onboard external static pressure auto-tuner re-balances fan duty for whisper-quiet yet powerful airflow, and activation is a single-setting task. Ask your Samsung specialist which indoor models currently support the feature.
Technical specifications
- External static pressure range 0–14 mmAq, field-adjustable.
- Electronic expansion valve (EEV) for pinpoint refrigerant modulation.
- Washable, long-life return-air filter.
- Auto-restart after power loss.
- Built-in condensate pump (750 mmH₂O lift).
Kit contents

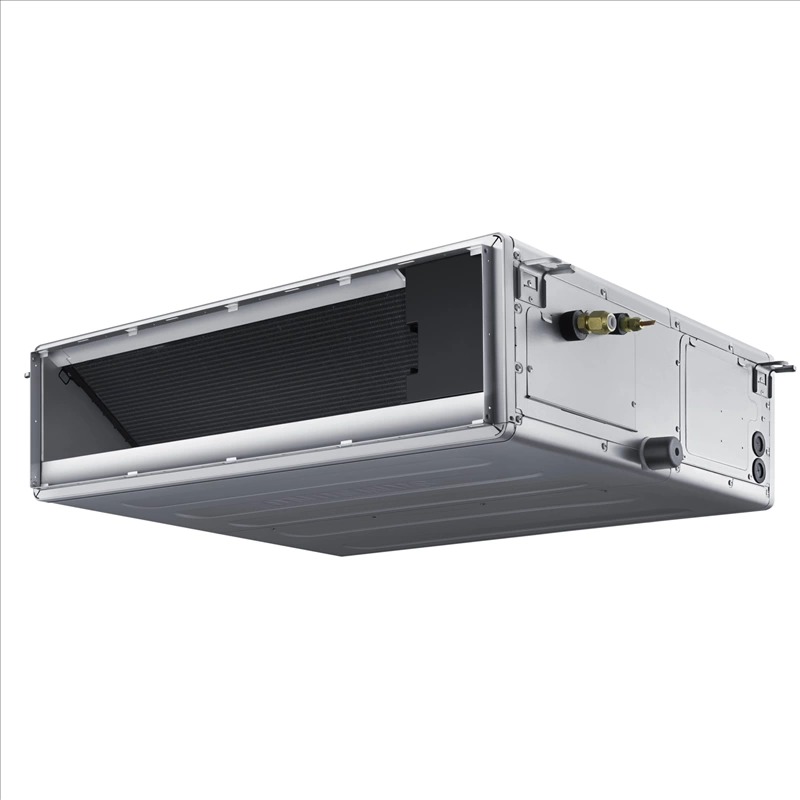

- 1 reversible indoor unit

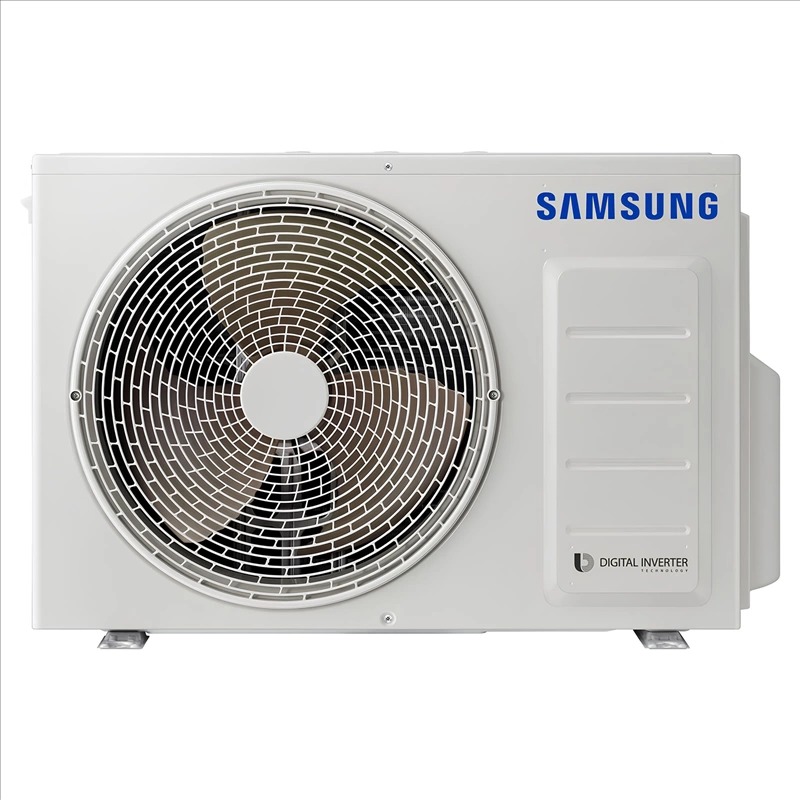

- 1 reversible outdoor unit
- 1 wireless controller MWR-WG00JN
- 1 user manual
Additional information
| TÉLÉCOMMANDE : | |
|---|---|
| WIFI : |
Product details
AC035RNMDKG / AC035RXADKG / Without WiFi-MWR-SH00N
0.00 Kg
Technical sheet - The information presented is for documentation purposes only. It must therefore always be verified. Climaled cannot be held responsible for any error or misinterpretation.
- Air Conditioning System
- Mono-split
- Indoor Unit Type
- Ducted
- Room (m²)
- 35
- WiFi
- Optional
- Power
- 3.5 kW / 12000 BTUs
- Nominal Heating Power
- 4 kW
- Nominal Cooling Power
- 3.5 kW
- Cooling Energy Class
- A++
- Heating Energy Class
- A+
- SCOP / Nominal Heating Energy Label
- 4
- SEER / Nominal Cooling Energy Label
- 6.2
- Refrigerant
- R32
- Refrigerant Connection
- 1/4'' - 3/8''
- Voltage
- Single-phase
- Min Sound Pressure dB(A)
- 22
- Indoor Unit Dimensions (mm)
- 850 x 250 x 700
- Outdoor Unit Dimensions (mm)
- 790 x 548 x 285
Specific References
- EAN13
- 8801643606916
