Description
Engineered for homes, offices, shops and eateries.
This slim-ducted system suits tight areas that demand unobtrusive climate and heating control while delivering top comfort and energy thrift. It talks natively with KNX, Modbus and EnOcean gateways, sliding effortlessly into any building-management backbone. Dry contacts are on board for easy run/stop and fault signalling.
R32 refrigerant: greener footprint than R410A.
An eco mode trims power use by up to 20 %. Super-slim indoor units keep static pressure spot-on. A 42-step weekly timer, simplified fault scan and built-in drain pump round out the package.
Hassle-free fitting
- Slim body: only 200 mm high
- Whisper-quiet: 24 dB(A) on low
- Lift pump included (200 mm head)
- Built-in filter
- Heat-only mode ready
Performance
- External static up to 50 Pa
- Ratings to A+/A+
- Heat down to -15 °C
- Cool up to +43 °C
- R32 charge: potent yet cleaner

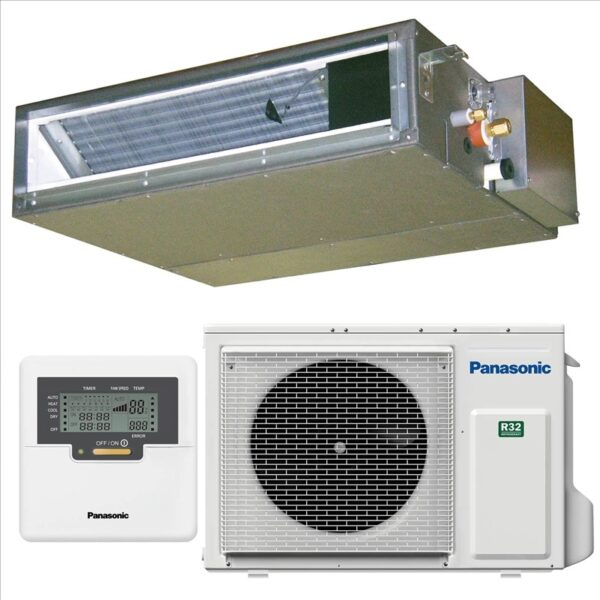

Kit contents

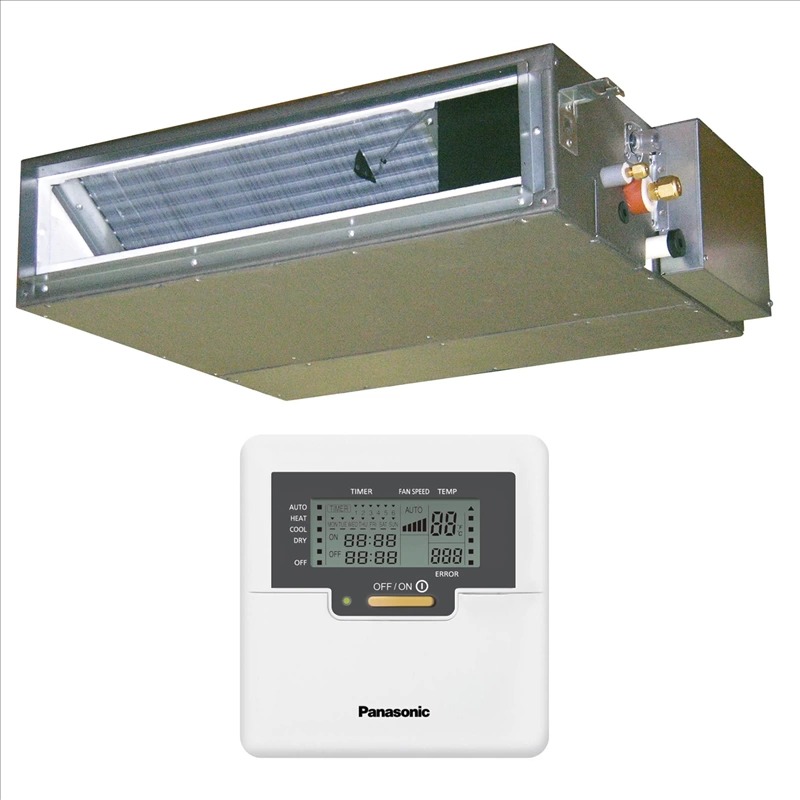

- 1 reversible indoor unit CS-Z60UD3EAW
- 1 reversible outdoor unit CU-Z60UBEA

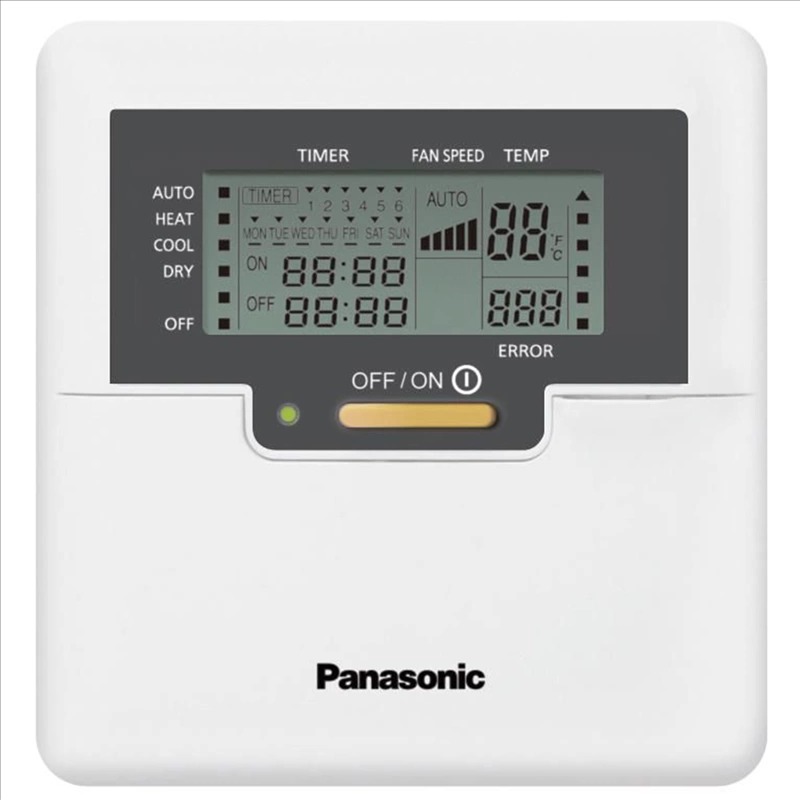

- 1 wireless controller
Product details
KIT-Z60-UD3EA
0.00 Kg
Technical sheet - The information shown is for documentation purposes only. It must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room (m²)
- 60
- WiFi
- Optional
- Nominal heating capacity
- 7 kW
- Nominal cooling capacity
- 6 kW
- Cooling energy class
- A+
- Heating energy class
- A+
- SCOP / Nominal heating energy label
- 4.1
- SEER / Nominal cooling energy label
- 5.6
- Refrigerant
- R32
- Refrigeration connection
- 1/4'' - 1/2''
- Min sound pressure dB(A)
- 27
- Indoor unit dimensions (mm)
- 200 x 750 x 640
- Outdoor unit dimensions (mm)
- 695 x 875 x 320
- Warranty
- 3 years
