Description
Engineered for seamless blending into homes, offices, shops and restaurants.

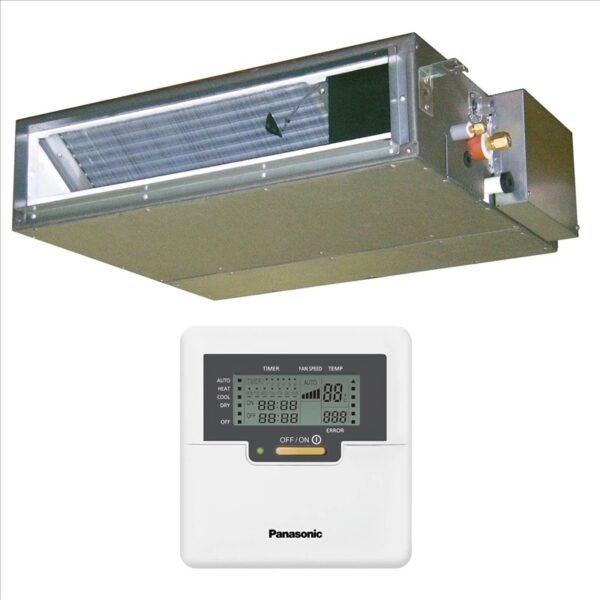

This ducted system is perfect for tight areas that demand powerful cooling and heating. Slim and unobtrusive, it tucks away effortlessly while delivering comfort and energy savings. It talks to KNX, Modbus and EnOcean interfaces through dry contacts for start/stop and fault signalling, making building-management tie-ins simple.
Greener footprint
Using R32 refrigerant, it is kinder to the planet than R410A, cutting environmental impact without sacrificing output.
Smart highlights
- Eco mode trims consumption by 20 %
- Ultra-slim indoor units with no static-pressure loss
- Weekly timer offering 42 on/off slots
- Quick-fault diagnostics
- Built-in drain pump
Hassle-free install
- Only 200 mm high
- Whisper-quiet: 24 dB(A) on low
- Condensate lift pump (max 200 mm)
- Integrated filter
- Heat-only lock option
Top-tier specs
- External static pressure up to 50 Pa
- Ratings as high as A+/A+
- Heating down to -15 °C
- Cooling up to +43 °C
- R32 – higher efficiency, lower emissions
Product details
CS-Z50UD3EAW
0.00 Kg
Data sheet – The information provided is for reference only. These details must always be verified. Climaled cannot be held liable for any errors or misinterpretation.
- Air-conditioning system
- Multi-split
- Unit
- Indoor unit
- Indoor unit type
- Ducted
- Room (m²)
- 50
- Capacity
- 5 kW / 18000 BTU
- Nominal heating capacity
- 6.8 kW
- Nominal cooling capacity
- 5 kW
- Refrigerant
- R32
- Refrigerant line
- 1/4'' – 1/2''
- Colour
- Grey, Silver, Graphite, Silver, Steel
- Min. sound pressure dB(A)
- 28
- Indoor unit dimensions (mm)
- 200 x 750 x 640
