Description
Perfect fit for homes, offices, shops and restaurants.

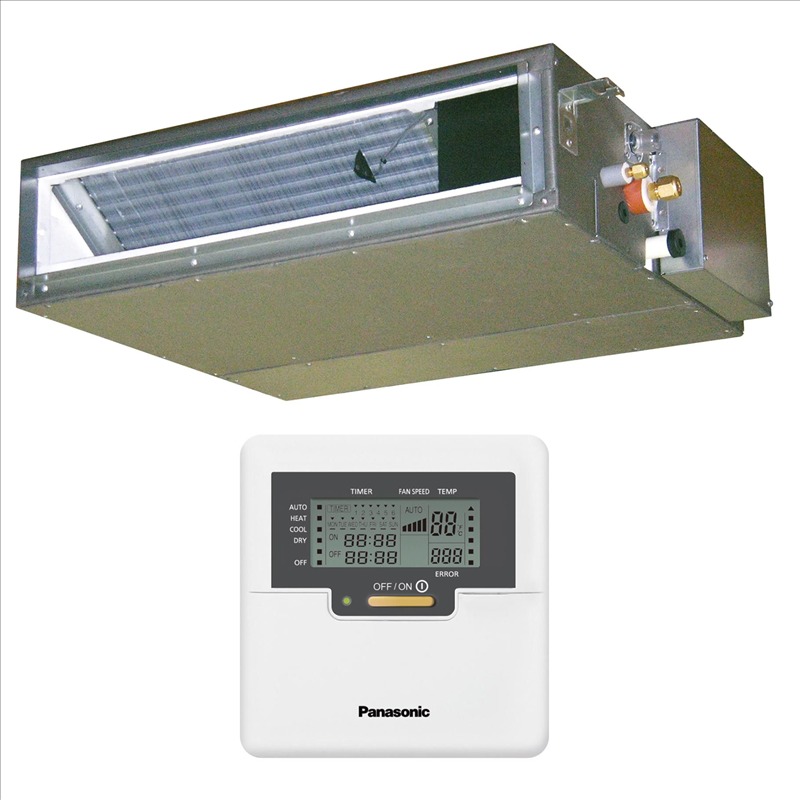

This ducted air-conditioner, tailor-made for tight areas, tucks away unobtrusively while delivering top comfort and energy thrift. It talks natively with KNX, Modbus and EnOcean gateways, slipping effortlessly into any building-management system. Dry contacts give you hassle-free on/off and fault signalling.
Green-minded thanks to R32 refrigerant, gentler on the planet than R410A.
An Eco mode trims consumption by 20 %, while ultra-slim indoor units keep static pressure intact. A 42-step weekly scheduler, simple fault-spotting logic and a built-in condensate pump round out the package.
Hassle-free set-up
- Low-profile build: only 200 mm high
- Whisper-quiet: 24 dB(A) on low speed
- Condensate lift pump included (200 mm rise)
- Built-in filter
- Heating-only mode available
High-performance figures
- External static pressure up to 50 Pa
- Energy labels as high as A+/A+
- Heating down to -15 °C
- Cooling up to +43 °C
- R32 refrigerant: efficient and low-impact
Product details
CS-Z35UD3EAW
0.00 Kg
Technical sheet - The information shown is purely documentary. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Multi-split
- Unit
- Indoor unit
- Indoor unit type
- Ducted
- Room (m²)
- 35
- Power
- 3.5 kW / 12000 BTUs
- Rated heating capacity
- 4.5 kW
- Rated cooling capacity
- 3.5 kW
- Refrigerant
- R32
- Refrigerant line
- 1/4'' - 3/8''
- Color
- Grey, Silver, Graphite, Silver, Steel
- Min sound pressure dB(A)
- 26
- Indoor unit dimensions (mm)
- 200 x 750 x 640
Specific references
