Description

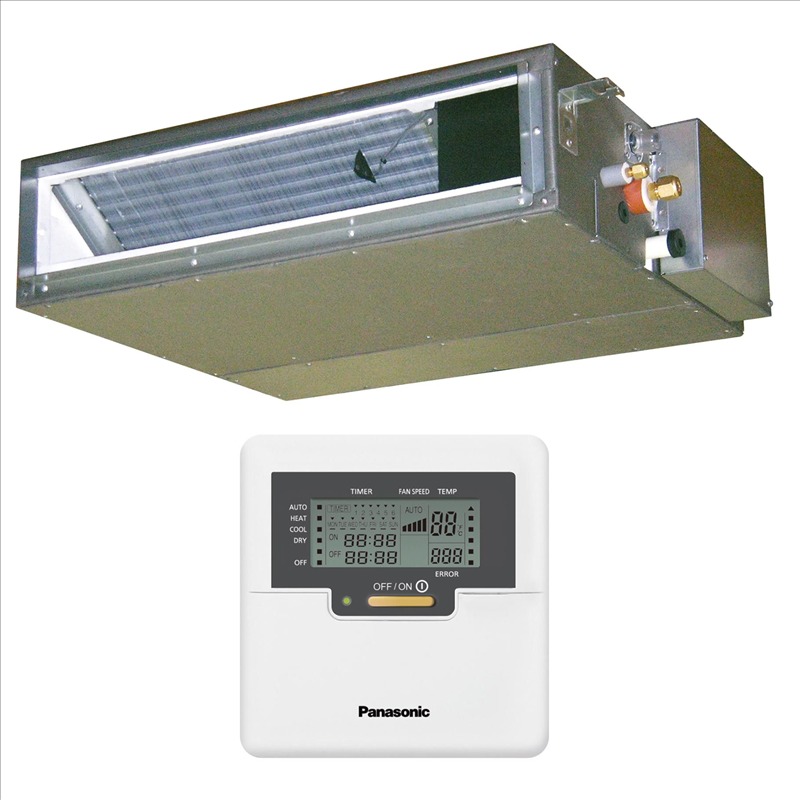

Crafted for seamless blending into homes, offices, shops and eateries.
This ducted system suits tight spots where cooling and heating must combine low-key looks, comfort and punch. It talks KNX, Modbus and EnOcean, slipping straight into building-management networks. Dry contacts give START/STOP and fault feedback.
R32 refrigerant: greener than R410A.

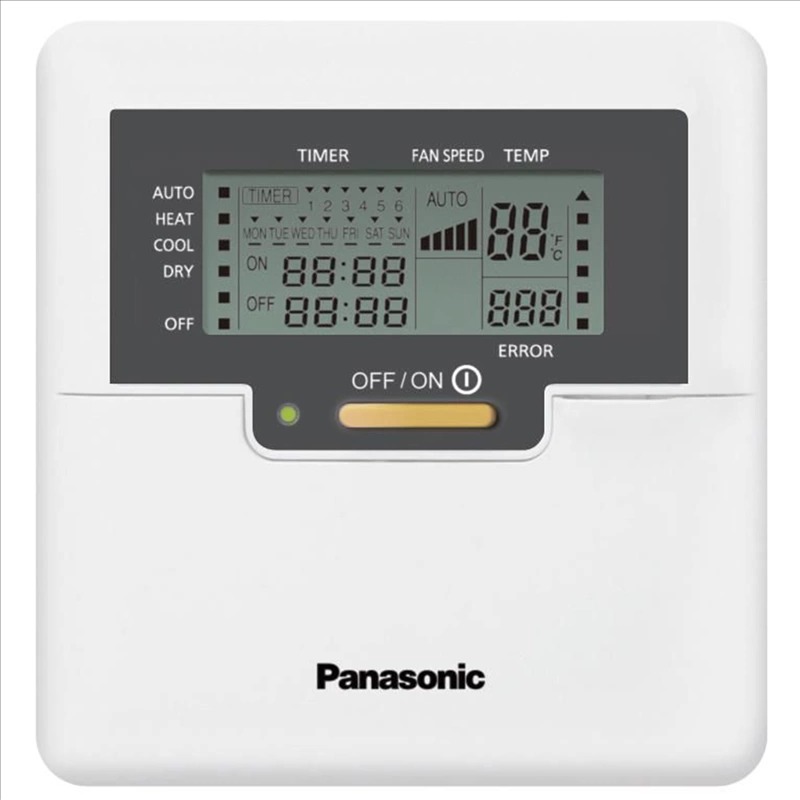

An Eco mode trims 20 % off the power bill, ultra-slim indoor units keep full static pressure, a weekly timer stores 42 slots, a lean diagnostic mode spots faults early and a built-in drain pump shifts condensate.
Hassle-free fitting
- Slim height: 200 mm
- Whisper-quiet: 24 dB(A) on low
- Lift pump included (200 mm rise)
- Built-in filter
- Heat-only variant on offer
Performance
- External static up to 50 Pa
- Energy class peaks at A+/A+
- Heating down to -15°C
- Cooling up to +43°C
- R32 gas: potent yet cleaner
Product details
CS-MZ20UD3EA
0.00 Kg
Data sheet – The information provided is for reference only. It must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air-conditioning system
- Multi-split
- Unit
- Indoor unit
- Indoor unit type
- Ducted
- Room (m²)
- 20
- Capacity
- 2 kW / 7000 BTU
- Rated heating capacity
- 3.2 kW
- Rated cooling capacity
- 2 kW
- Refrigerant
- R32
- Refrigeration connection
- 1/4'' – 3/8''
- Colour
- Grey, Silver, Graphite, Silver, Steel
- Min. sound pressure dB(A)
- 26
- Indoor unit dimensions (mm)
- 200 × 750 × 640
