Description
Ducted air conditioner for tight spaces
The PEAD ducted unit is perfect for commercial or office environments. With tailored static pressure, it hides away in attics and quietly moves air through concealed ductwork. A mono-split setup pairs one indoor module to a single outdoor unit.
Power Inverter technology
Outdoor Power Inverter units deliver peak energy savings through sub-cooling circuits and twin electronic expansion valves. Out of 31 possible pairings, 25 hit energy class A, some even reaching A++ for both heating and cooling. Duct runs can stretch 120 m, while low sound levels keep placement flexible.
User benefits
- Top efficiency: high SCOP/SEER scores
- Year-round comfort: heats down to -20°C, fast defrost
- Quiet operation: outdoor unit runs at low sound level
- Flexible piping: total length up to 55 m
- Stable heating: rated output held to -3°C
- Backup modes and 2+1 rotation
- Alternating defrost cycles

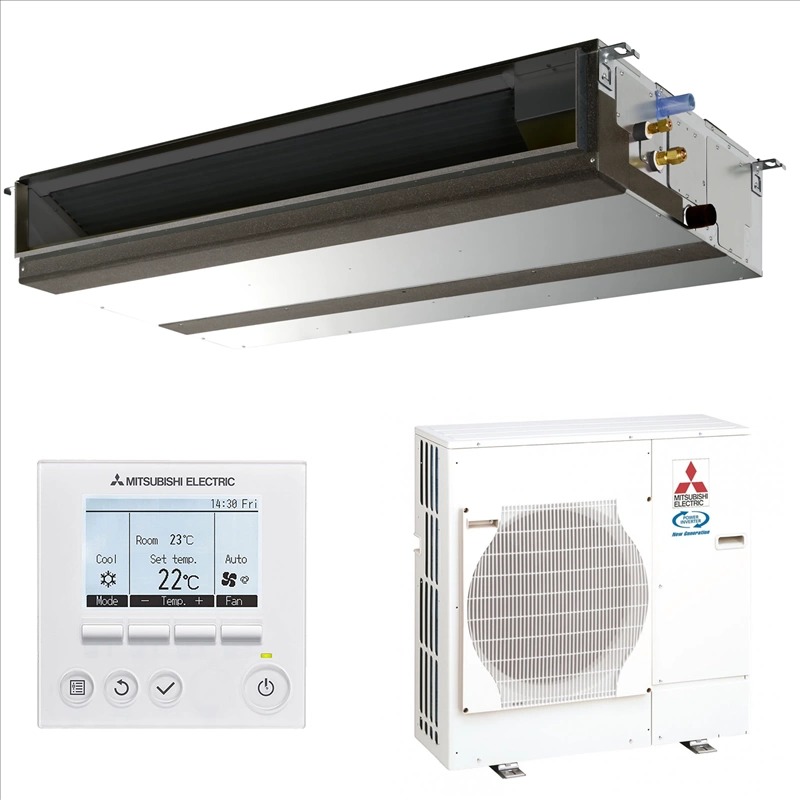

Kit contents

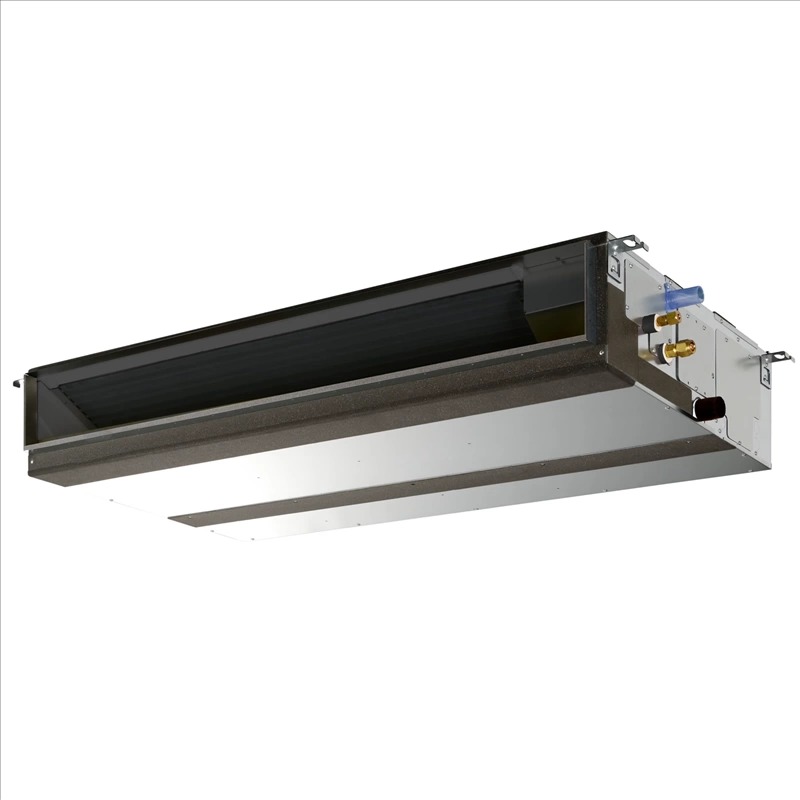

- 1 reversible indoor unit

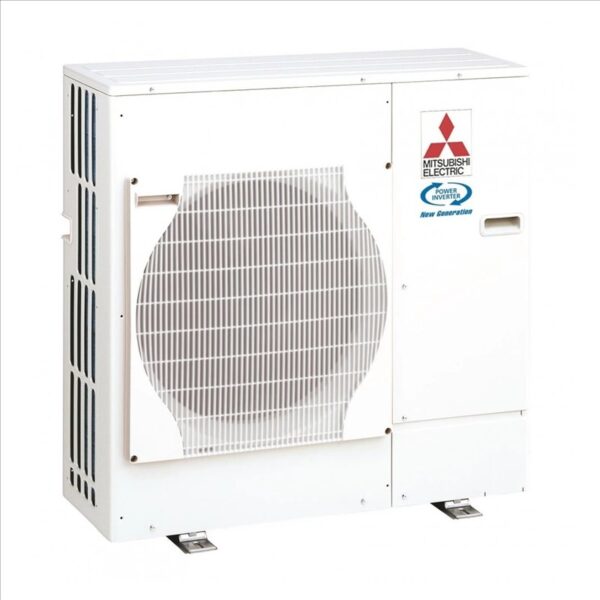

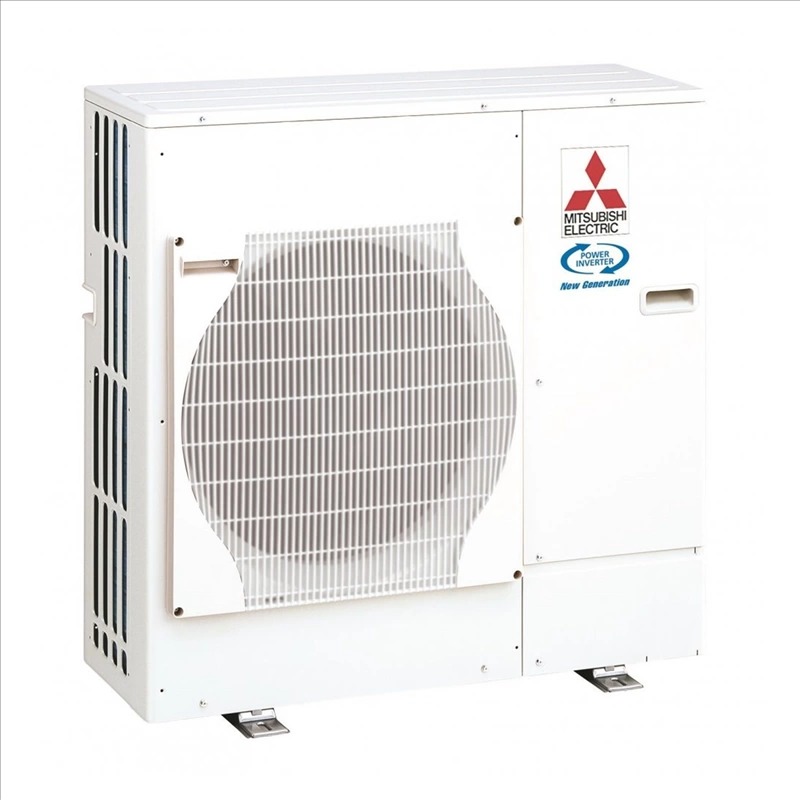

- 1 reversible outdoor unit

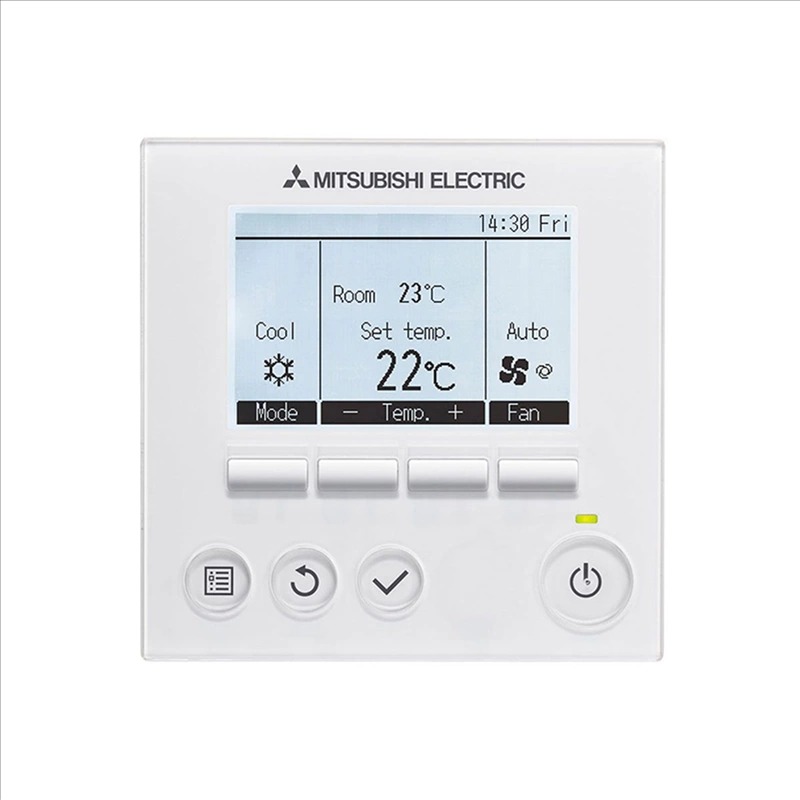

- 1 wired controller
- 1 user manual
Additional information
| TÉLÉCOMMANDE : |
|---|
Product details
PEAD-M60EA / PUZ-ZM60VHA2 / PAR-41MAA
0.00 Kg
Data sheet – The information shown is for documentation purposes only. It must always be verified. Climaled cannot be held liable for any errors or misinterpretations.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room (m²)
- 60
- WiFi
- Optional
- Capacity
- 6 kW / 22,000 BTU
- Rated heating capacity
- 7 kW
- Rated cooling capacity
- 6.1 kW
- Cooling energy class
- A++
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4.2
- SEER / Rated cooling energy label
- 6.2
- Refrigerant
- R32
- Refrigerant piping
- 3/8'' – 5/8''
- Power supply
- Single-phase
- Min sound pressure dB(A)
- 25
- Indoor unit dimensions (mm)
- 250 x 1100 x 732
- Outdoor unit dimensions (mm)
- 943 x 950 x 330
- Warranty
- 3 years
Specific references
- EAN13
- 8851492613115
