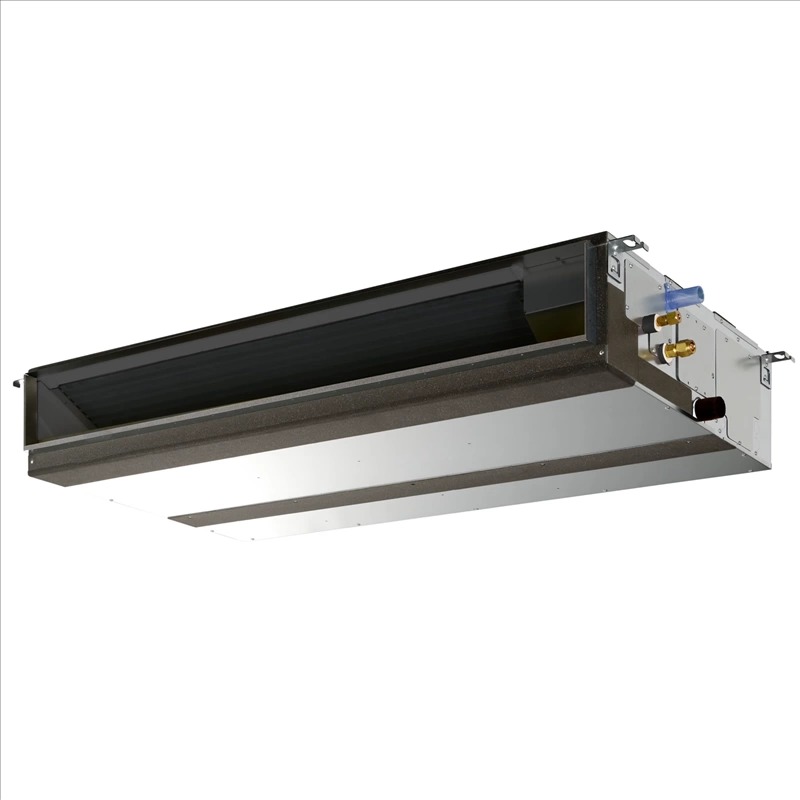

Engineered for low-profile integration in tight areas, this ducted system is ideal for meeting the cooling demands of commercial and office environments.
The PEAD tucks neatly into attic spaces and delivers ample static pressure to push conditioned air through hidden ductwork. A simple single-split pairing—one indoor unit to one outdoor unit—provides top-tier performance.
Power Inverter Technology

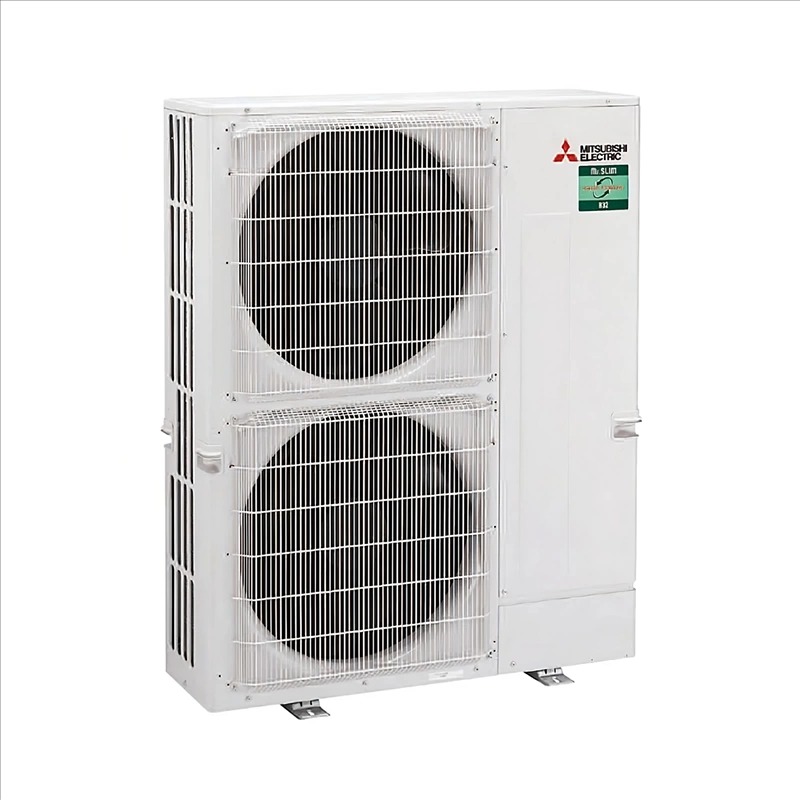

Power Inverter outdoor modules lead with premium energy efficiency. A Power Receiver sub-cools the refrigerant while dual independent expansion valves keep operation smooth in every season.
25 of 31 possible combinations hit energy class A, and select setups reach class A++ for both heating and cooling, depending on the indoor model. Whisper-quiet operation plus piping runs up to 120 m deliver flexible placement.
User Benefits
- Top efficiency: high SCOP/SEER ratings
- Year-round comfort: heating down to -20°C with fast defrost
- Quiet outside unit: low-noise operation
- Easy install: pipe length up to 55 m
- Stable heating output down to -3°C
- Backup/2+1 rotation mode
- Alternate defrost function
Kit Contents
- 1 reversible indoor unit
- 1 reversible outdoor unit

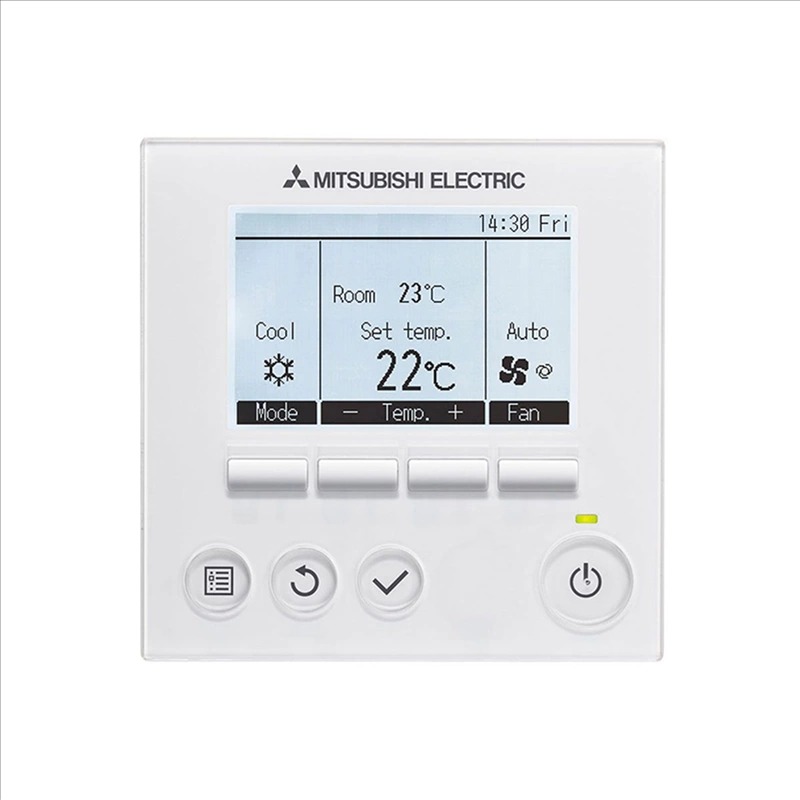

- 1 wired controller
- 1 user manual
Additional information
| TÉLÉCOMMANDE : |
|---|
Product details

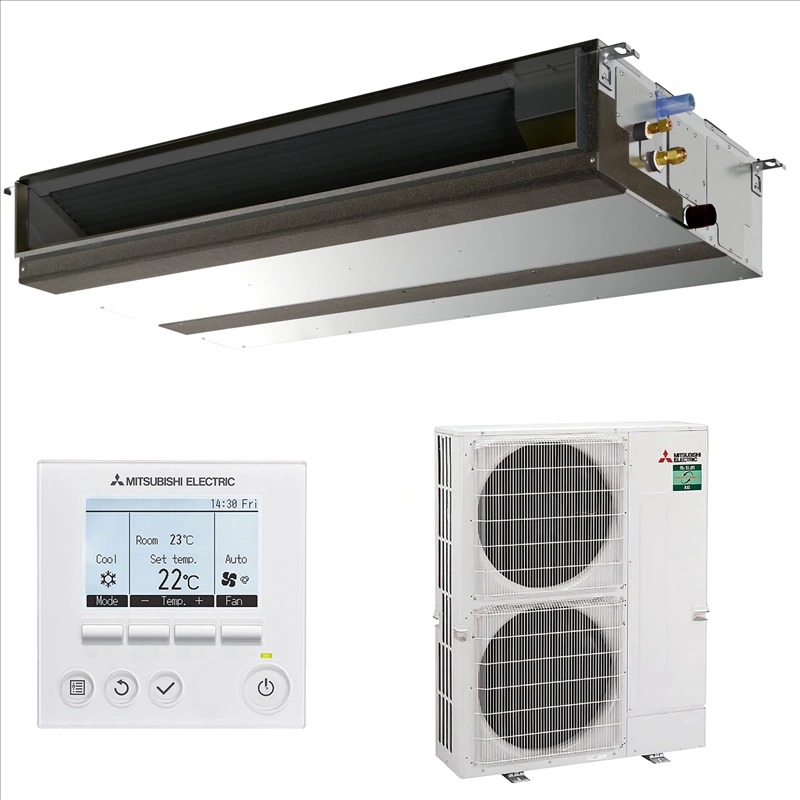

PEAD-M125EA / PUZ-ZM125VKA2 / PAR-41MAA
0.00 Kg
Technical sheet - The information presented is for documentation purposes only. It must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air Conditioning System
- Mono-split
- Indoor Unit Type
- Ductable
- Room (m²)
- 120
- WiFi
- Optional
- Power
- 12.5 kW / 45000 BTUs
- Nominal Heating Power
- 14 kW
- Nominal Cooling Power
- 12.1 kW
- Cooling Energy Class
- A++
- Heating Energy Class
- A+
- SCOP / Nominal Heating Energy Label
- 4.1
- SEER / Nominal Cooling Energy Label
- 6.2
- Refrigerant
- R32
- Refrigeration Connection
- 3/8'' - 5/8''
- Voltage
- Single-phase
- Min Sound Pressure dB(A)
- 33
- Indoor Unit Dimensions (mm)
- 250 x 1400 x 732
- Outdoor Unit Dimensions (mm)
- 1338 x 1050 x 330
Specific References
- EAN13
- 5051467011769
