Description
Low-profile setup for tight ceiling voids

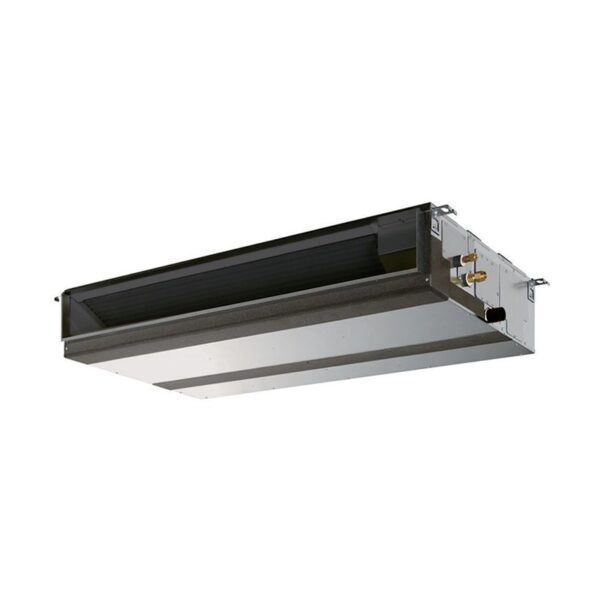

Ducted unit tailored to meet the cooling and heating demands of commercial and office environments, with output sized to suit every scheme.
The PEAD-M series delivers flexible answers for homes, covering a single room, one floor or the full dwelling.
The flexible-duct PEAD-M, spanning 3.5 – 14 kW, packs Inverter, Power Inverter or Zubadan tech, handling most installations.
User benefits
- Outputs from 3.5 to 14 kW across three drive technologies
- High external static up to 150 Pa
- Five pressure steps: 35/50/70/100/150 Pa
- Slim 250 mm height, perfect for shallow ceiling spaces
- Built-in condensate lift pump
- Streamlined installation
- R410A and R32 ready
- Standard M1 internal/external insulation
Kit contents
- 1 reversible indoor unit

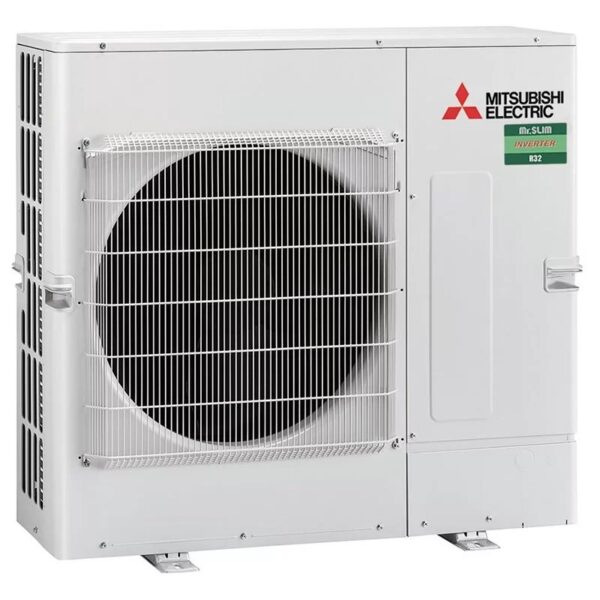

- 1 reversible outdoor unit

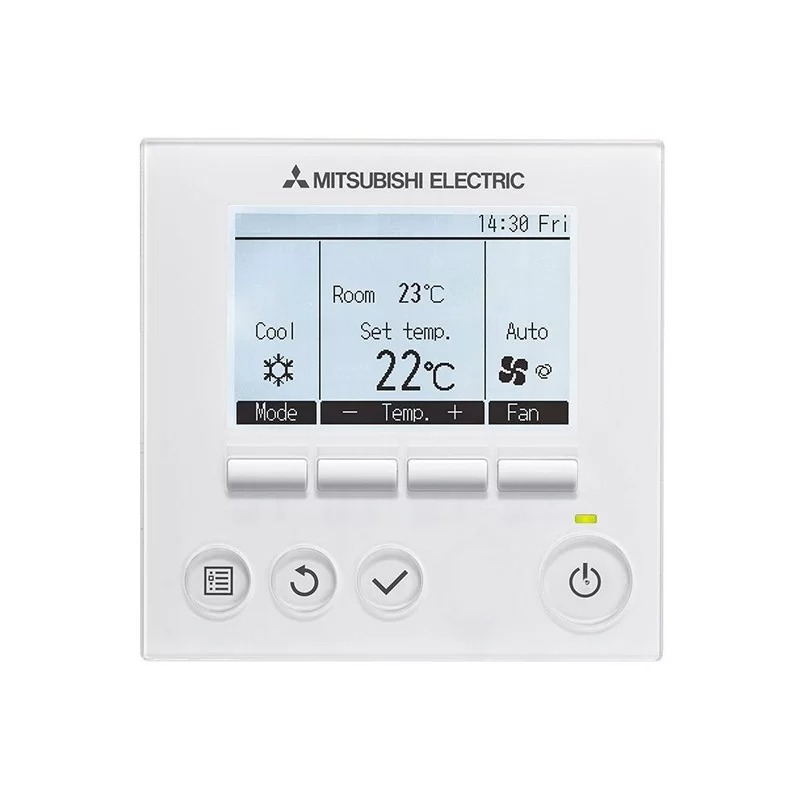

- 1 remote controller
- 1 user manual
Additional information
| TÉLÉCOMMANDE : |
|---|
Product details
PEAD-M125JA / PUZ-M125YKA / PAR-41MAA
0.00 Kg
Technical sheet - The information presented is for documentary purposes only. This information must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Air Conditioning System
- Mono-split
- Indoor Unit Type
- Ducted
- Room (m2)
- 120
- WiFi
- Optional
- Power
- 12.5 kW / 45000 BTUs
- Nominal Heating Power
- 13.5 kW
- Nominal Cooling Power
- 12.1 kW
- Gas
- R32
- Refrigerant Piping
- 3/8'' - 5/8''
- Voltage
- Three-phase
- Min Sound Pressure dB(A)
- 33
- Indoor Unit Dimensions (mm)
- 250 x 1600 x 732
- Outdoor Unit Dimensions (mm)
- 981 x 1050 x 330
Specific References
- EAN13
- 5051467011769
