Description
Premium high-temperature heating systems, perfect for new-build or refurbished homes, delivering whisper-quiet operation and peak efficiency.
Comfort & efficiency
- Hot water up to 68°C at –7°C outdoor temperature with no electric backup.
- Reliable heating down to –25°C outside.
- COP 5.00 on 8 & 10 kW models (A7W35).
- Ultra-quiet: 42 dB(A) at 1 m, 28 dB(A) at 5 m (SWM80).
- Sleek, refined design.
- Built-in cooling with pre-insulated piping and condensate tray.
Practical & flexible installation
- Single chassis for outputs 8–14 kW.
- Pipe runs up to 50 m (site-dependent).
- Refrigerant connections 1/4”–1/2” (1/4”–5/8” for cooling).
- Duo module: cylinders 170L (dual-zone), 200L or 300L.
- Compact modules: heights 1.75 m, 1.60 m or 2.05 m.
Advanced control
Detachable colour touch-remote featuring:
- Back-lit LCD display.
- Integrated room temperature sensor.
- Intuitive text & icon interface.
Three heating control modes:
- Constant water temperature.
- Simple or clipped weather-compensation curve.
- Auto-adaptive room-demand mode.
- Multi-function control: boiler support, 1 or 2 zones, DHW, Smart Grid/EJP ready.
- Silent, holiday, screed-drying, thermal disinfection modes.
- Seasonal scheduling for heating & hot water.
- Built-in energy monitoring by mode.
- Remote control via MELCloud (optional).
- Supplied SD card for easy setup & diagnostics.
Additional information
| no |
|---|
Product details

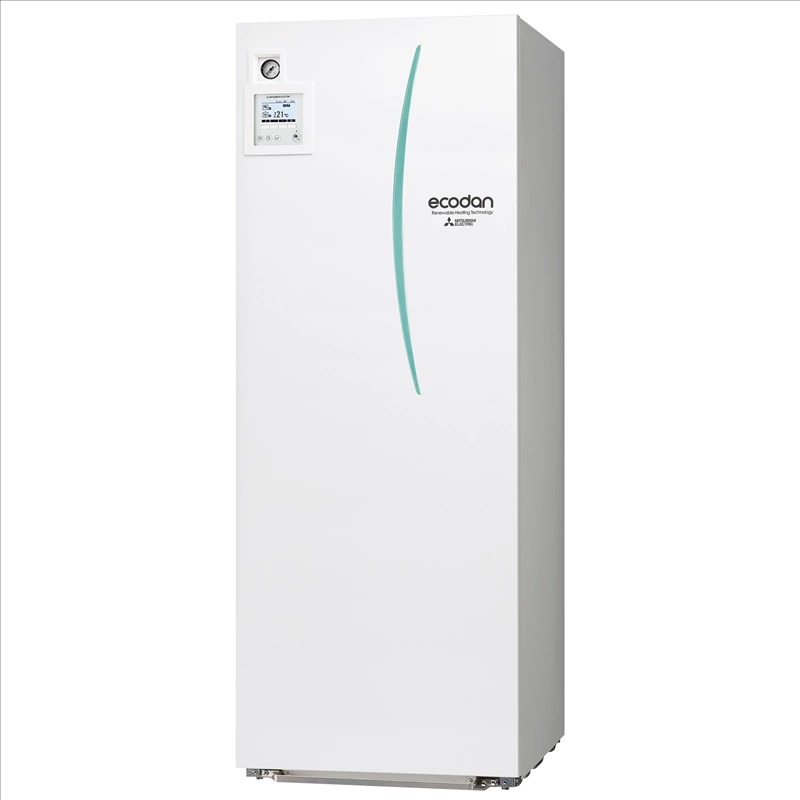

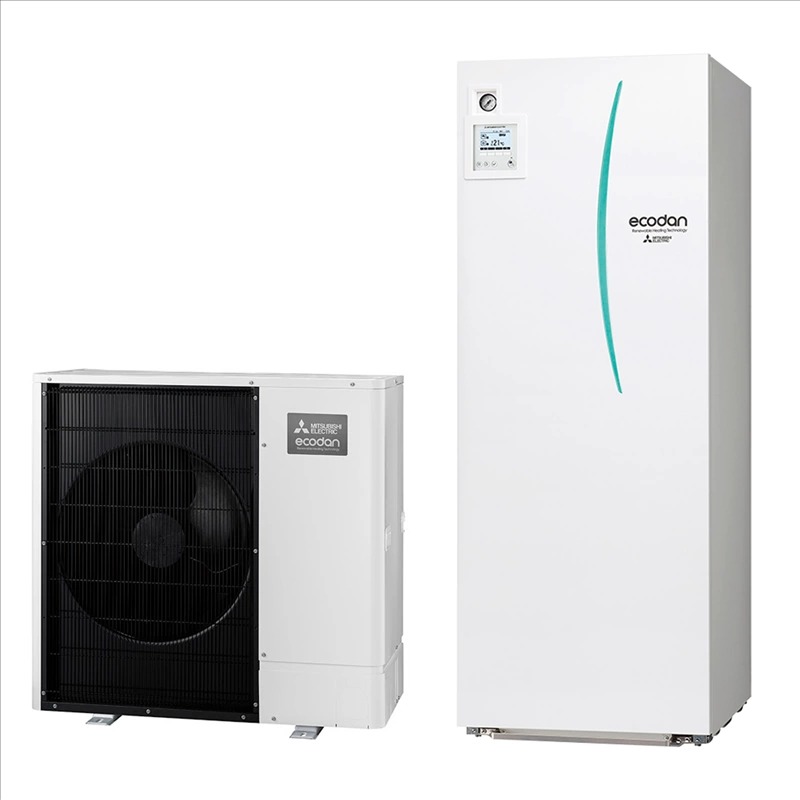

ERST30F-VM2E / PUZ-SWM140YAA / Without backup heater
20.00 Kg
Technical sheet - The information presented is for documentation purposes only. These details must always be verified. Climaled cannot be held liable for any errors or misinterpretations.
- WiFi
- Optional
- Power
- 14 kW / 47000 BTUs
- Nominal heating power
- 12 kW
- Nominal cooling power
- 14 kW
- Operating mode
- Heating and cooling
- Built-in tank
- Yes
- Refrigerant
- R32
- Refrigerant line
- 1/4'' - 1/2''
1/4'' - 5/8'' - Voltage
- Three-phase
- DHW energy class
- A+
- Water 35ºC energy class
- A+++
- Water 55ºC energy class
- A++
- SCOP - Water outlet 35ºC
- 4.51
- SCOP - Water outlet 55ºC
- 3.46
- Min sound pressure dB(A)
- 41
- Max water outlet temp
- 68º C
- Tank capacity (litres)
- 300

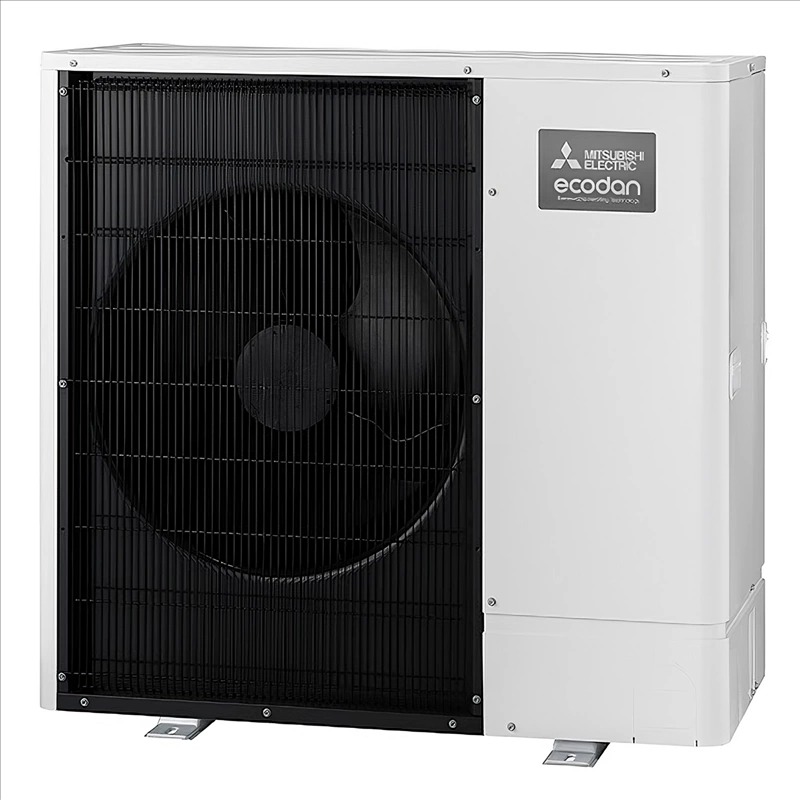

- Outdoor unit dimensions (mm)
- 1040 x 1050 x 480
- Tank dimensions (mm)
- 2050 x 595 x 680
- Heating time
- 51ºC / 2h04m
- Primary hydraulic connection
- G1''
- DHW hydraulic connection
- G''3/4
- Expansion vessel
- 12L / 1 Bar
- Backup heater
- 2 kW
