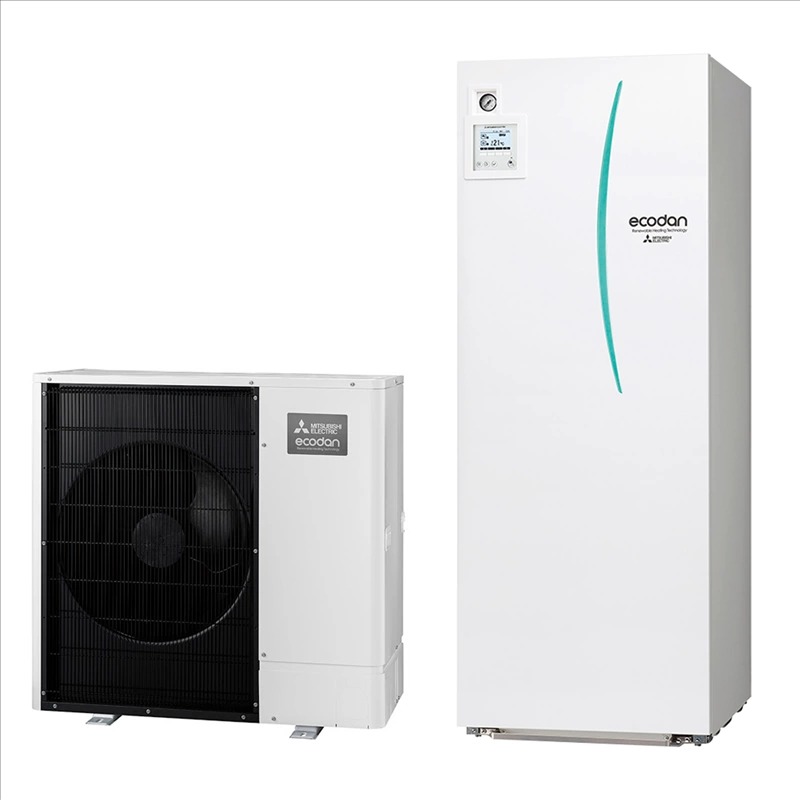

Mitsubishi ERST20F-VM2E / PUZ-SWM140VAA Ecodan Silent 14 kW Inverter Heat Pump 200L

High-temperature heating solutions tailored for new builds or retrofits, delivering top-tier efficiency and whisper-quiet operation.

Performance & comfort

• Water up to 68 °C even at –7 °C outside, no electric backup needed.
• Heating assured down to –25 °C ambient.
• COP up to 5.00 (8 & 10 kW models at A7W35).
• Ultra-quiet: 42 dB(A) at 1 m, 28 dB(A) at 5 m (SWM80).
• Clean, streamlined aesthetics.
• Built-in cooling with insulated piping and condensate tray.

Flexibility & easy install

• Single chassis for 8–14 kW range.
• Refrigerant lines up to 50 m (conditions apply).
• Connections ¼”–½” (¼”–⅝” advised for cooling).
• Duo module with 170 L (dual-zone), 200 L or 300 L tanks.
• Compact modules: heights 1.75 m, 1.60 m or 2.05 m.

Smart control

Detachable colour touch remote featuring:

• Back-lit LCD display.
• Integrated room sensor.
• Intuitive text & icon interface.

Three heating control modes:

• Fixed water temperature.
• Simple or clipped water-law (auto-adjusts to outdoor temp).
• Auto-adaptive (responds to room set-point).

• Versatile management: boiler takeover, 1 or 2 zones, DHW, Smart-Grid & EJP ready.
• Special modes: quiet, holiday, screed drying, thermal disinfection.
• Heating & DHW scheduling (standard or summer/winter).
• Energy tracking by mode included.
• Remote access via MELCloud app (optional).
• Supplied SD card for quick commissioning & diagnostics.
