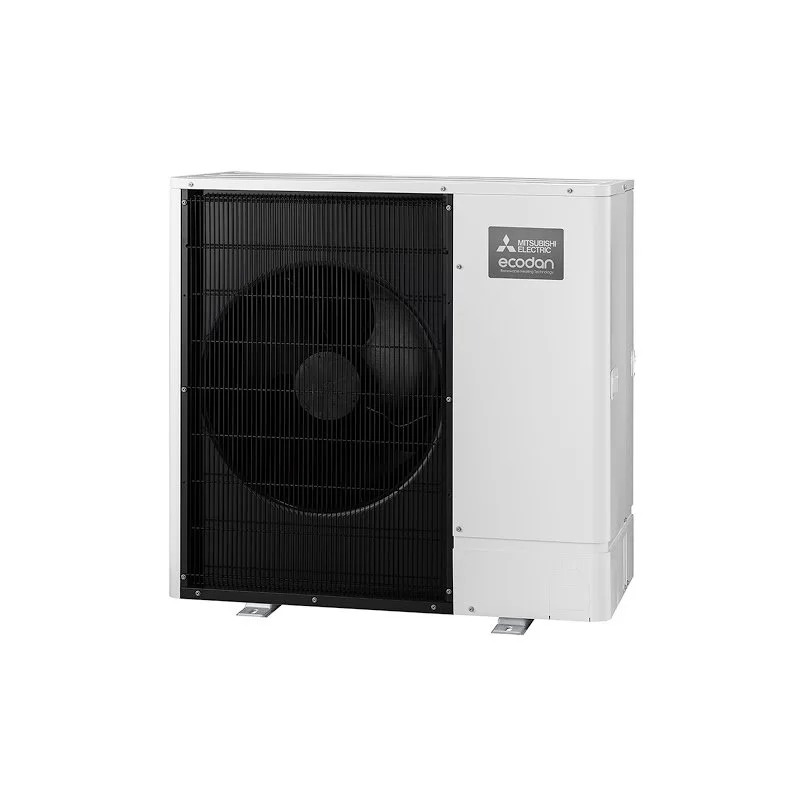

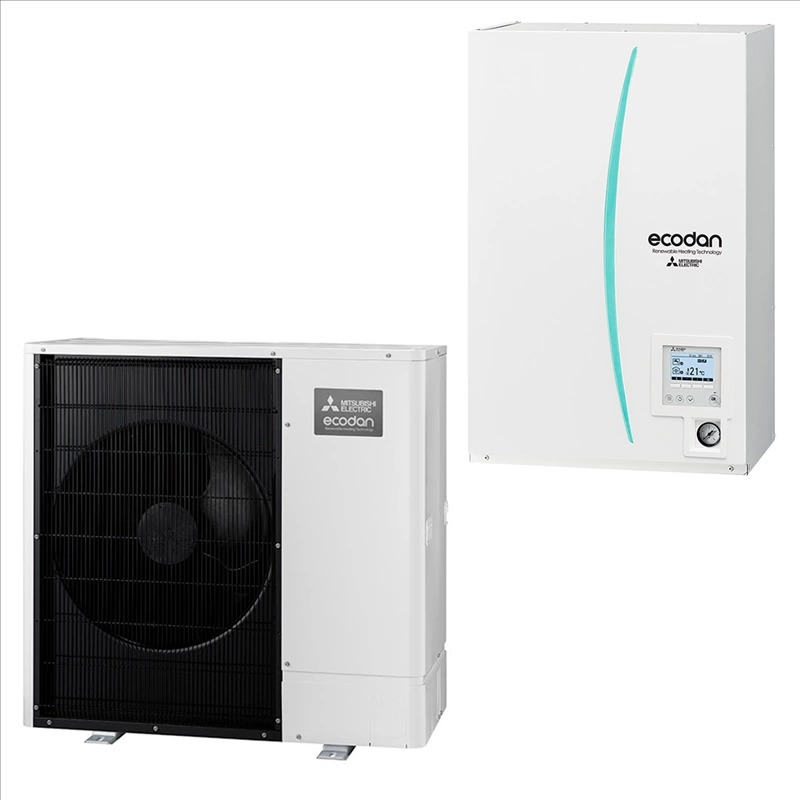

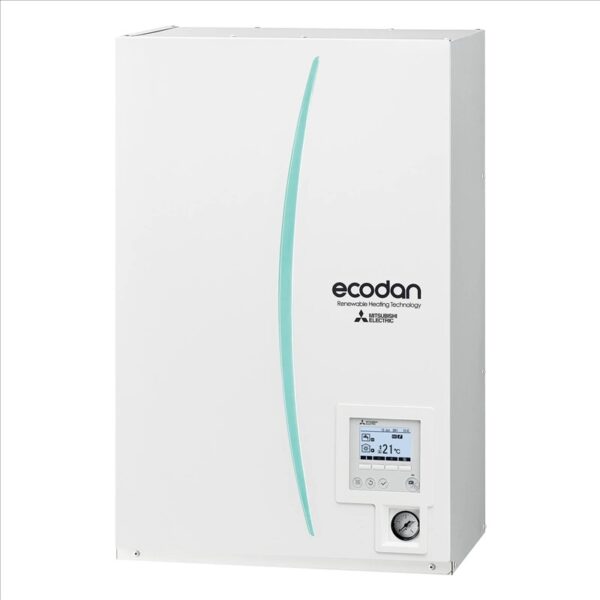

Mitsubishi ERSF-VM2E / PUZ-SWM100VAA Ecodan Silent 10 Power Inverter | ★★★★★★★★★★41 Reviews

Brand:  Mitsubishi
In Stock
Reference:  ERSF-VM2E / PUZ-SWM100VAA / Non
Free Shipping
In Stock
Livraison Offerte

10 kW reversible bi-bloc Ecodan Power Inverter Silence air-to-water heat pump, single-phase, with 2 kW electric backup hydraulic module

Previous Price€4 800,53 Ex. Tax Or €5 760,63 Inc. Tax
New Price-38%
€2 976,33 Ex. Tax Or €3 571,59 Inc. Tax
Order before 22 hours and 23 minutes to receive by 03/12/2025

Description

High-temperature systems for new or renovated homes, engineered for peak comfort and whisper-quiet operation.

Comfort & efficiency

  • Hot water up to 68°C at –7°C outdoor, no electric backup.
  • Heating guaranteed down to –25°C.
  • COP up to 5.00 (8 & 10 kW models, A7W35).
  • Ultra-low sound: 42 dB(A) at 1 m, 28 dB(A) at 5 m (SWM80).
  • Sleek, modern aesthetics.
  • Built-in cooling with insulated piping & condensate tray.

Flexible install

  • Single chassis 8–14 kW.
  • Pipe runs to 50 m (site-dependent).
  • Refrigerant ports 1/4”–1/2” (1/4”–5/8” for cooling).
  • Duo module: tanks 170 L (dual zone), 200 L or 300 L.
  • Compact modules: heights 1.75 m, 1.60 m, 2.05 m.

Smart control

Detachable colour touch remote featuring:

  • Back-lit LCD display.
  • Integrated room sensor.
  • Clear text & icon interface.

Heating regulation modes:

  • Fixed water temperature.
  • Weather-compensated curve.
  • Auto-adaptive room set-point.
  • Advanced control: boiler hand-off, 1 or 2 zones, DHW, Smart Grid/EJP ready.
  • Silent, holiday, screed-drying, thermal disinfection modes.
  • Seasonal scheduling (heating/DHW).
  • Consumption tracking by mode.
  • Remote access via optional MELCloud.
  • SD card for quick diagnostics & commissioning.

Additional information

SONDE :

Product details

Mitsubishi
ERSF-VM2E / PUZ-SWM100VAA / No
20.00 Kg

Technical sheet – The information shown is for reference only. It must always be verified. Climaled cannot be held liable for any error or misinterpretation.

WiFi
Optional
Power
10 kW / 36000 BTUs
Rated heating power
8 kW
Rated cooling power
10 kW
Operating mode
Heating and cooling
Built-in tank
No
Refrigerant
R32
Refrigerant piping
1/4'' – 1/2''
1/4'' – 5/8''
Voltage
Single-phase
Energy class water 35ºC
A+++
Energy class water 55ºC
A++
SCOP – Water outlet 35ºC
4.59
SCOP – Water outlet 55ºC
3.41
Min sound pressure dB(A)
41
Max water outlet temp
68ºC
Indoor unit size (mm)
800 x 530 x 360
Outdoor unit size (mm)
1040 x 1050 x 480
Primary hydraulic connection
G1''
Expansion vessel
10L / 1 Bar
Backup heater
2kW
