Description
Midea’s A6 concealed series is engineered for uniform air distribution. These units auto-tune static pressure and mount vertically to fit any ceiling void.
WiFi or XYE Control
Pick (GA) versions for WiFi command, or (GA)-X models with XYE port for centralized remote or seamless link-up to BMS, Airzone or Baillindustrie.
Fresh-Air Intake
A knock-out side panel invites outdoor air inside, boosting indoor freshness and purity.
High Static Force
Select A6 models push up to 160 Pa static pressure, driving ample airflow to every diffuser.

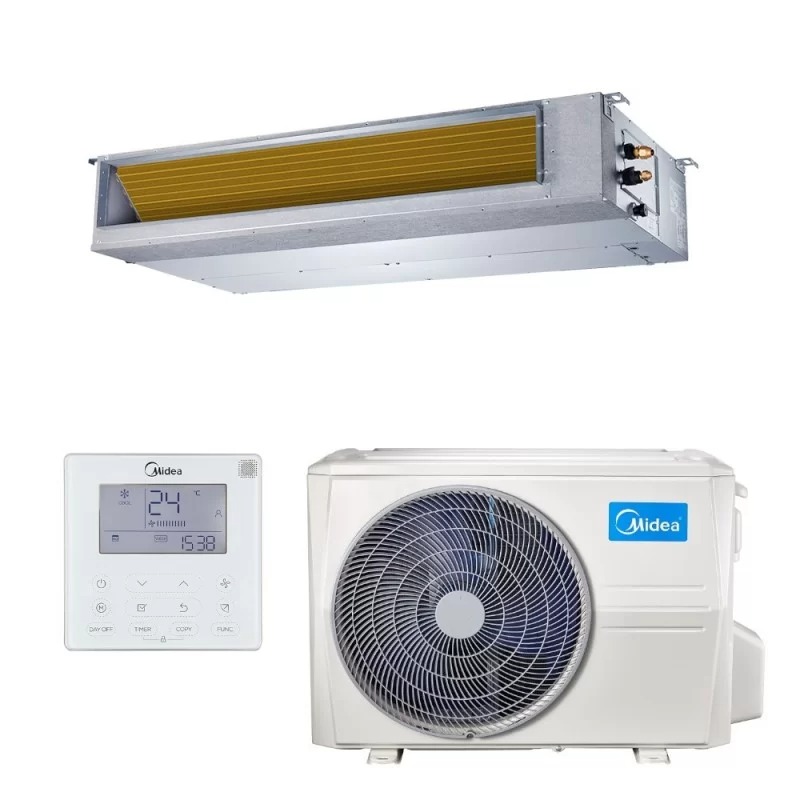

Kit Contents

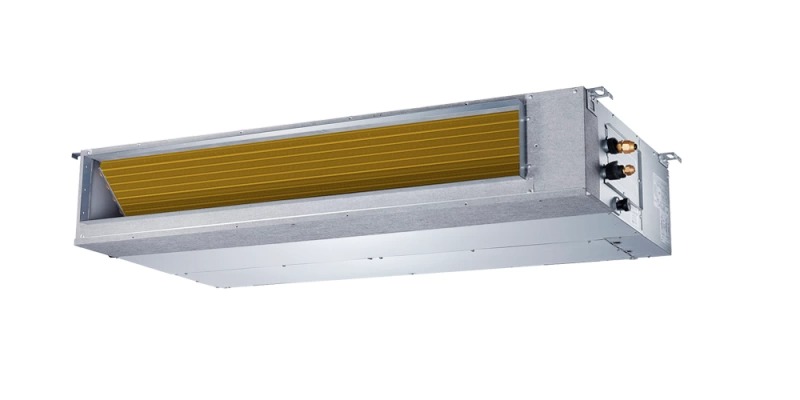

- 1 reversible concealed indoor unit MTIU-18HWFNX-QRD0W(GA)

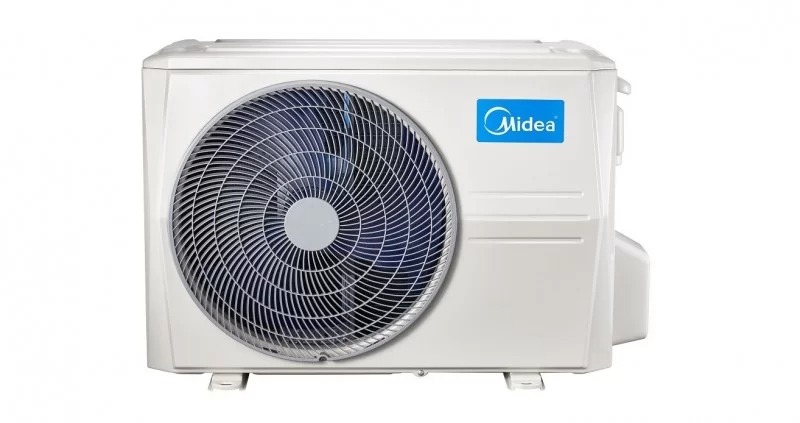

- 1 reversible outdoor unit MOX330U-18HFN8-QRD0W(GA)

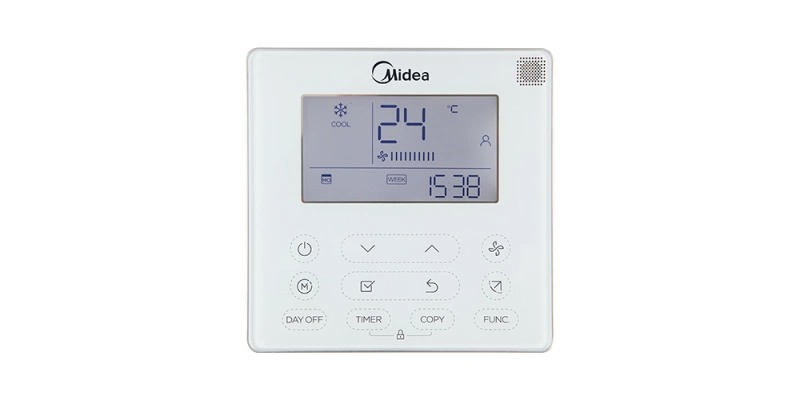

- 1 wired controller KJR-120X/TFBG-E
- 1 user manual
Product details
MTJ-18HFN8-QRD0W(GA)
0.00 Kg
Data sheet – The information provided is for documentary purposes only and must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Air-conditioning system
- Mono-split
- Indoor unit type
- Ducted
- Room (m²)
- 50
- WiFi
- Optional
- Capacity
- 5 kW / 18 000 BTU
- Rated heating capacity
- 5.57 kW
- Rated cooling capacity
- 5.28 kW
- Cooling energy class
- A++
- Heating energy class
- A+
- SCOP / Rated heating energy label
- 4
- SEER / Rated cooling energy label
- 6.5
- Refrigerant
- R32
- Refrigerant line
- 1/4'' – 1/2''
- Power supply
- Single-phase
- Min. sound pressure dB(A)
- 26
- Indoor unit dimensions (mm)
- 880 × 210 × 674
- Outdoor unit dimensions (mm)
- 805 × 554 × 330
