Description

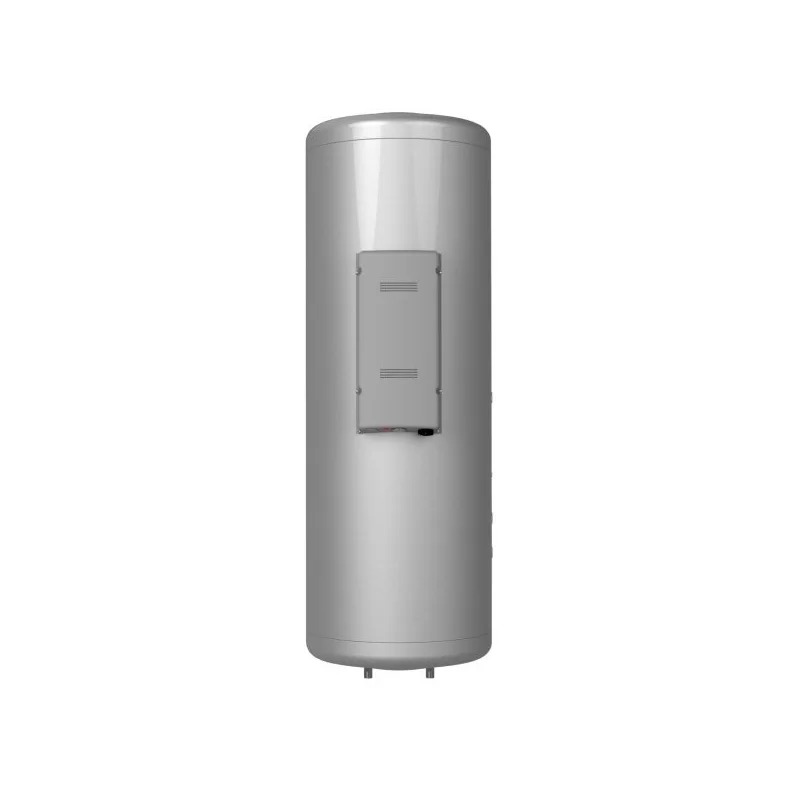

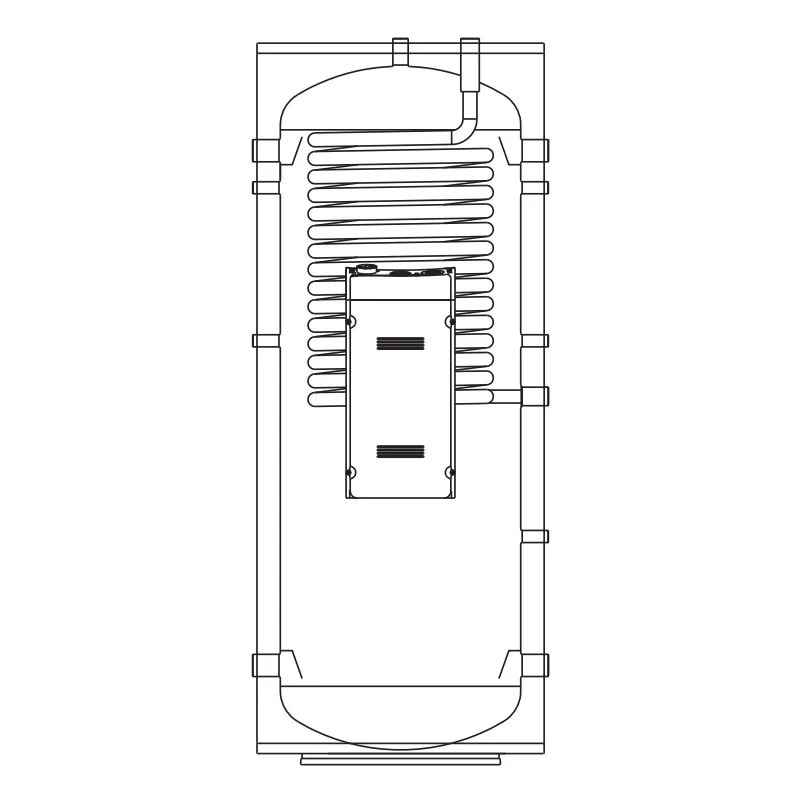

Easydan tanks, crafted by Videira from DX 2205 stainless steel, are engineered for seamless pairing with Mitsubishi Electric heat pumps. They deliver outstanding heat transfer and high energy efficiency for domestic hot-water generation, matching the reliability and longevity of Mitsubishi systems.
The line offers multiple choices—single- or dual-coil vessels, instantaneous or buffer configurations—suiting a wide range of installations.
User benefits
- Thermal insulation: rigid CFC- and HCFC-free polyurethane foam, 50–60 mm thick.
- Outer shell: electrostatically painted galvanized steel DX51.
- Heat exchangers in AISI 316L stainless steel.
- Built-in electric heating element.
- No magnesium anode required.
- Supplied with 7-bar safety hydraulic unit.
| Capacity | 300L | 500L | 750L | 1000L | ||
| Reference | EASYDAN INST300 | EASYDAN INST500 | EASYDAN INST750 | EASYDAN INST1000 | ||
| Dimensions | Ø x Height | mm | 620 x 1570 | 710 x 1960 | 950 x 2100 | 1100 x 2170 |
| Useful capacity | L | 274 | 476 | 709 | 1040 | |
| Tank construction | DUPLEX LDX 2101 stainless steel | AISI 316L stainless steel | ||||
| Exchanger construction | AISI 316L stainless steel | |||||
| Instantaneous exchange area | m² | 2.5 | 3.45 | 6.9 | 8.05 | |
| Exchange volume | L | 15 | 18.2 | 32 | 37 | |
| Electric backup | W / V | 2000W / 230V | 3000W / 230V | 10000W / 400V | 10000W / 400V | |
| Max. working pressure | 6 bar | |||||
| Max. operating temperature | ºC | 85ºC | ||||
| Energy class | C | |||||
| Standing heat loss | W | 94 | 111 | 121 | 124 | |
| Thermal insulation | 50mm CFC-free expanded polyurethane | 100mm flexible polyurethane | ||||
| Outer coating | Electrostatically painted galvanized steel DX51D (9010) | PVC | ||||
Product details
Easydan INST300
0.00 Kg
Data sheet – The information shown is for reference only. It must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Power
- 2 kW / 7000 BTUs
- Voltage
- Single-phase
- DHW energy class
- C
- Tank capacity (litres)
- 300
- Dimensions (mm)
- 620 x 1570
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
- Instant heat-exchange area (m²)
- 2.5
