Description

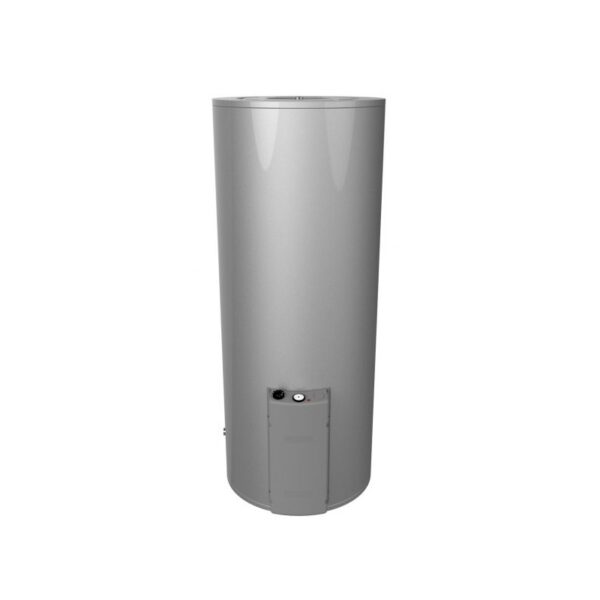

Easydan tanks, engineered by Videira from DUPLEX LDX 2101 stainless steel, are purpose-built to pair with Mitsubishi Electric heat pumps. They deliver top-tier thermal performance and high energy efficiency for domestic hot-water generation, combined with outstanding durability and lifespan.
The versatile line-up covers single- and dual-coil cylinders, instant-production units, and buffer vessels.
User benefits
- Thermal insulation: 50–60 mm rigid CFC- and HCFC-free polyurethane foam.
- Outer shell: electrostatically painted DX51 galvanized steel.
- Heat exchangers: AISI 316L stainless steel.
- Electric heating element supplied.
- No magnesium anode needed.
- Fitted with a 7 bar safety hydraulic unit.
| Capacity | 50L | 100L | 200L | 300L | ||
| Dimensions | Ø x Height | mm | 500 x 620 | 550 x 860 | 550 x 1420 | 620 x 1570 |
| Useful capacity | L | 50 | 100 | 199 | 292 | |
| Tank construction | DUPLEX LDX 2101 stainless steel | |||||
| Working circuit connection | 1”F | 1”1/2F | ||||
| Drain connection | 1/2”F | |||||
| Temperature probe connection | ||||||
| Sewage connection | ||||||
| Temperature sensor connection | ||||||
| Max. working pressure | 6 bar | |||||
| Max. operating temperature | ºC | 85ºC | ||||
| Energy class | B | C | ||||
| Standing heat loss | W | 40 | 49 | 77 | 94 | |
| Thermal insulation | 50 mm CFC-free expanded polyurethane | |||||
| Outer finish | Electrostatically painted DX51D galvanized steel (9010) | |||||
Additional information
| NOMBRE DE CONNEXIONS : |
|---|
Product details
IN100-4
0.00 Kg
Technical sheet - The information presented is for documentation purposes only. This information must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Voltage
- Single-phase
- ECS energy class
- B
- Tank capacity (litres)
- 100
- Dimensions (mm)
- 500 x 820
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
Specific references
