Description
The Yutaki S80 range delivers streamlined energy use and steady comfort through its proprietary Smart Cascade cycle. This system auto-tunes heat-pump operation to match real-time heating demand. For water up to 53 °C, only R410A refrigerant runs the show; when hotter water is needed (up to 80 °C), a second stage kicks in with R134A, cutting consumption while keeping comfort intact.
Year-round dependable warmth
It heats water to 80 °C using renewable energy, staying on duty even at outdoor lows of -25 °C.
Straightforward setup and upkeep

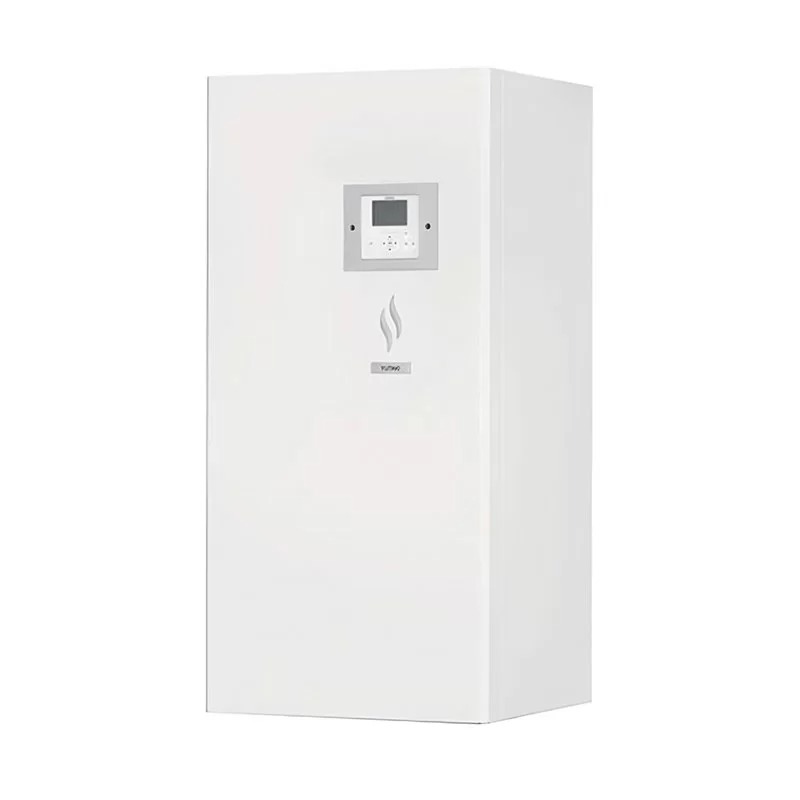

Thoughtful design places water and coolant connections right on top of the indoor unit for quick, hassle-free access.
Product details
RAS-6WHNPE + RWH-6.0VNFWE + DHWS200S-2.7H2E
0.00 Kg
Data sheet – The information provided is for documentation purposes only and must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Power
- 18 kW / 60,000 BTU
- Rated heating output
- 16
- Operating mode
- Heating only
- Refrigerant
- R410a
- Refrigeration connection
- 3/8'' – 5/8''
- Colour
- White, Pearl White
- Voltage
- Three-phase
- Energy class water 35 °C
- A++
- Energy class water 55 °C
- A++
- SCOP – water outlet 35 °C
- 3.88
- SCOP – water outlet 55 °C
- 3.23
- Min. sound pressure dB(A)
- 37
- Max. water outlet temp.
- 80 °C

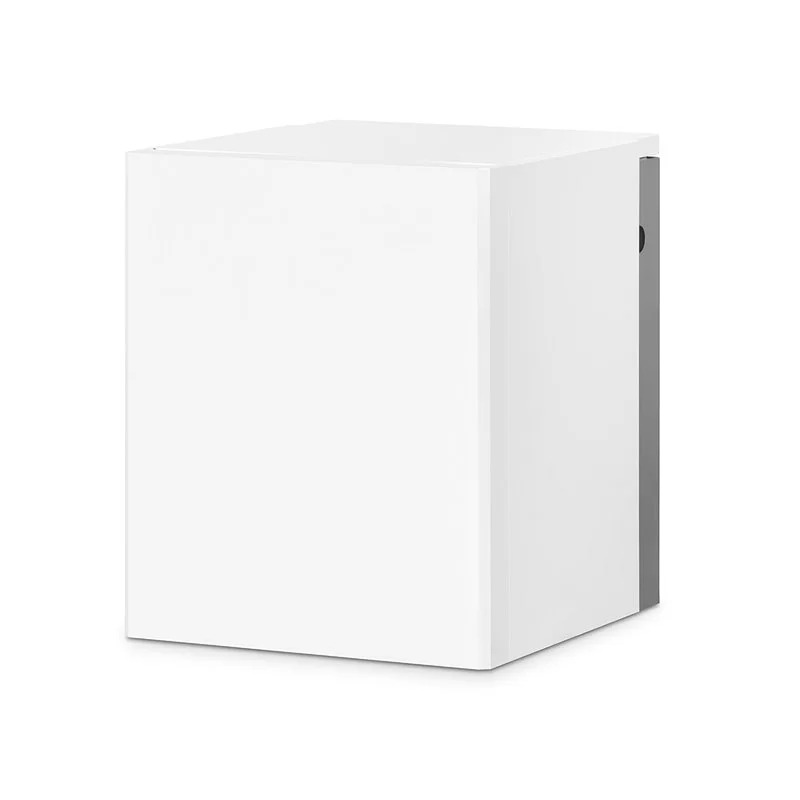

- Tank capacity (litres)
- 200
- Indoor unit dimensions (mm)
- 751 × 600 × 623

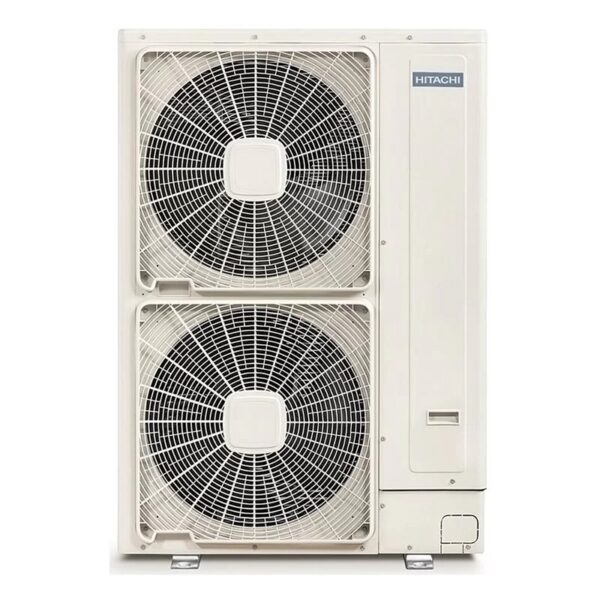

- Outdoor unit dimensions (mm)
- 1380 × 950 × 370
- Heating time
- 20 °C – 80 °C
- Warranty
- 3 years
