Description
Thanks to its market-exclusive Smart Cascade cycle, the Yutaki S80 line self-tunes to thermal demand. Water up to 53 °C is handled by R410A refrigerant; beyond that, a secondary loop with R134A activates to cover needs up to 80 °C, trimming energy use while keeping comfort peak.
Steady output, every season
The unit taps renewable energy to deliver 80 °C water even when the mercury plunges to -25 °C.
Simpler setup and servicing
Top-mounted water and refrigerant connections give installers and technicians quick, hassle-free access.
Product details

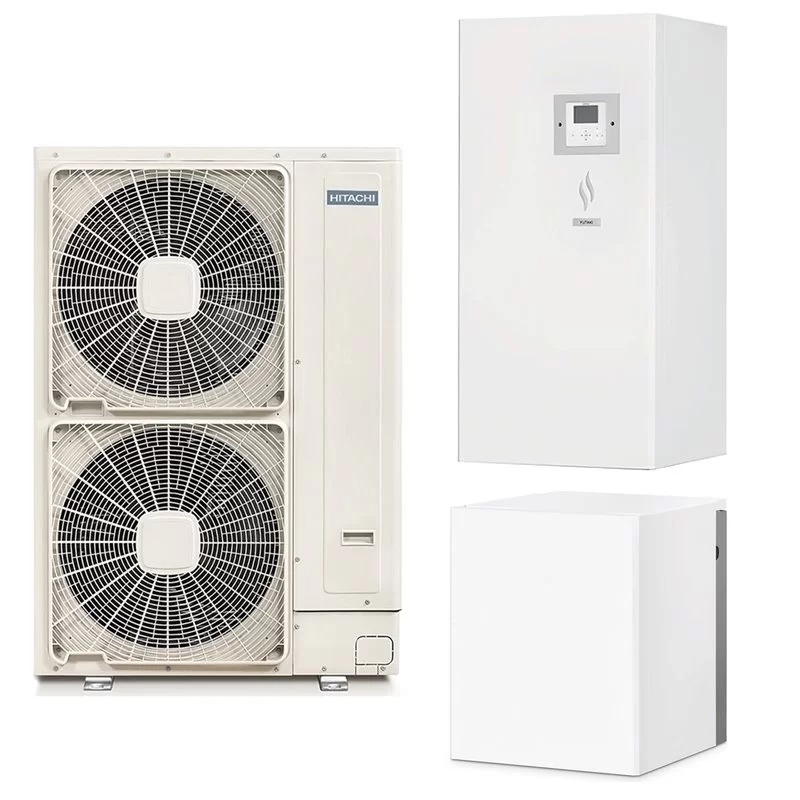

RAS-4WHNPE / RWH-4.0NFWE / DHWS200S-2.7H2E
0.00 Kg
Technical sheet - The information shown is purely documentary. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Power
- 14 kW / 47000 BTUs
- Rated heating power
- 11
- Operating mode
- Heating only
- Refrigerant
- R410a
- Refrigerant connection
- 3/8'' - 5/8''
- Color
- White, Pearl White
- Voltage
- Three-phase
- Energy class water 35ºC
- A+++
- Energy class water 55ºC
- A++
- SCOP - Water outlet 35ºC
- 4.75
- SCOP - Water outlet 55ºC
- 3.63
- Min sound pressure dB(A)
- 37
- Max water outlet temp
- 80ºC
- Tank capacity (liters)
- 200
- Indoor unit dimensions (mm)
- 751 x 600 x 623
- Outdoor unit dimensions (mm)
- 1380 x 950 x 370
- Heating time
- 20ºC - 80ºC
- Warranty
- 3 years
