Fujitsu ARXG54KHTAP + AOYG54KRTA Compact Tri-Split Standard Series | 133 Reviews

Brand:  Fujitsu
In Stock
Reference:  ACY140-KH / UTY-RLRY
Free Shipping
In Stock
Livraison Offerte

Space-saving reversible ducted AC set, mid-static, 14.0 kW three-phase, standard-range

3 366,18 Ex. Tax Or 4 039,41 Inc. Tax
-25%
2 524,63 Ex. Tax Or 3 029,56 Inc. Tax
Order before 10 hours and 6 minutes to receive by 03/12/2025

Description

ARXG KHTAP
This slim ducted system is ideal for cooling or heating commercial or professional areas spanning 50 to 150 m². It tucks neatly into a suspended ceiling or can be wall-hung.

Built-in air baffles plus its V-coil evaporator deliver steady airflow and whisper-quiet operation.

Using an eco-friendly refrigerant, the unit warms effectively down to –15 °C in winter and cools up to 46 °C in summer, ensuring top performance year-round.

User benefits

  • Eco-energy mode: auto-tunes settings to curb needless power draw.
  • Auto change-over: switches between heating and cooling as room temperature shifts.
  • High-efficiency DC fan cuts electricity use.
  • V-shaped heat exchanger for boosted output.
  • Low noise: only 28 dB(A) on the 18-size model.
  • Wall controller included as standard.
  • Integrated condensate pump fitted from factory.
  • External static range 30–200 Pa.
  • Automatic airflow adjustment.
  • Identical depth across all capacities simplifies model selection.

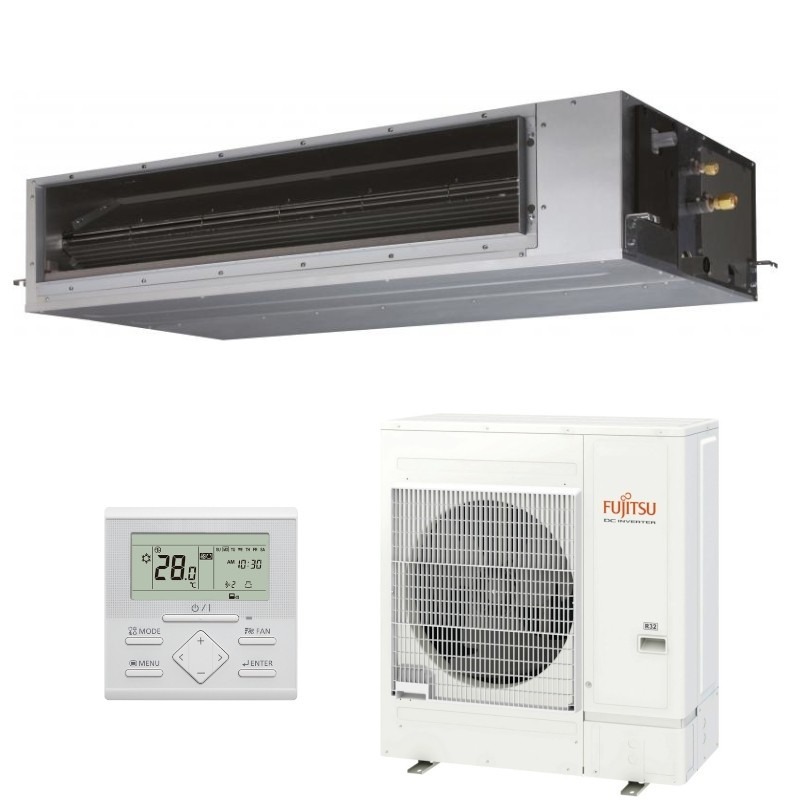

Kit contents

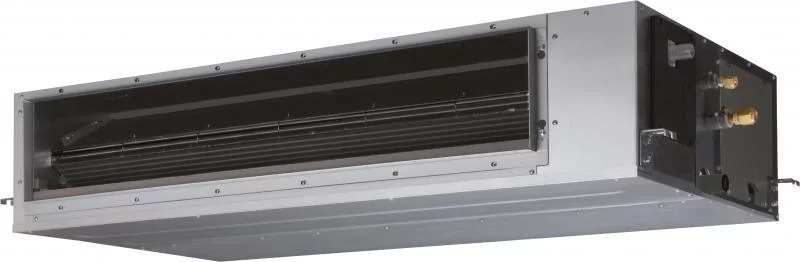

  • 1 reversible ducted indoor unit

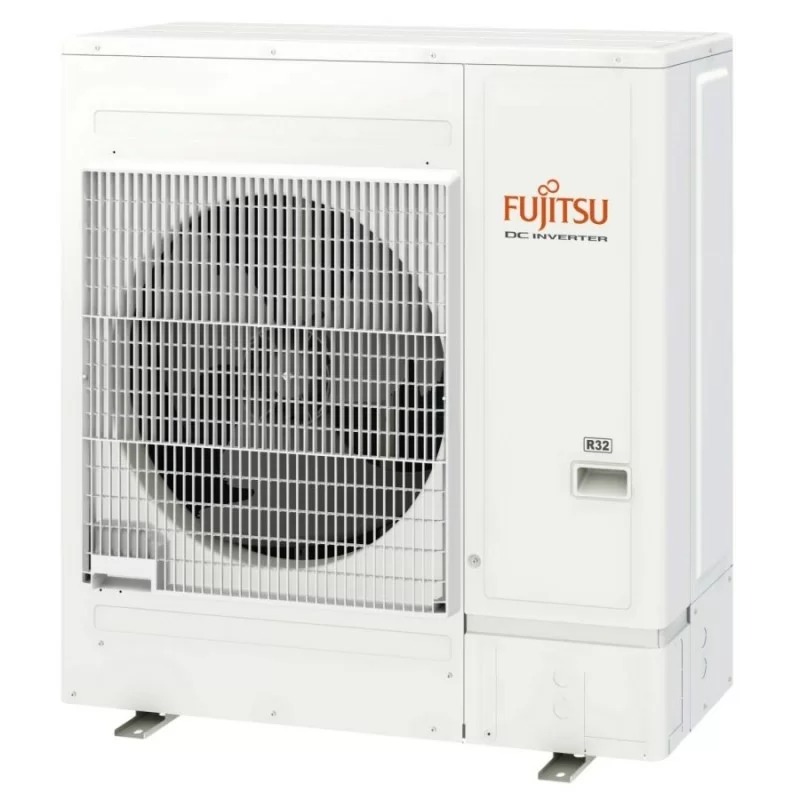

  • 1 reversible outdoor unit

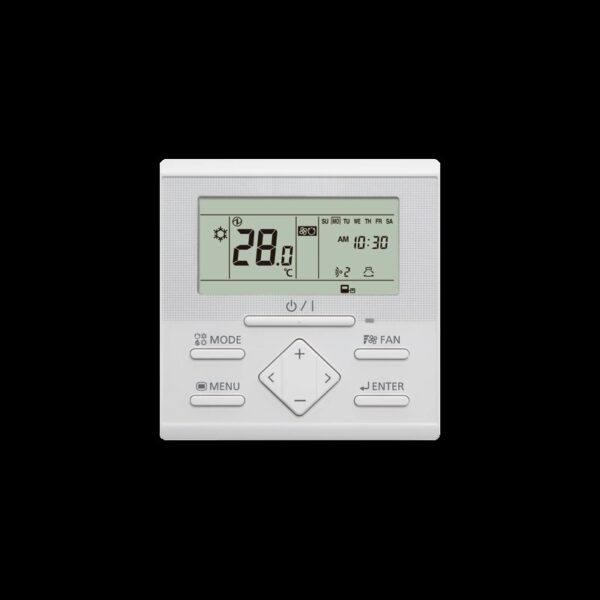

  • 1 wired remote control
  • 1 user manual

Additional information

TÉLÉCOMMANDE :

Product details

Fujitsu
ACY140-KH / UTY-RLRY
0.00 Kg

Data sheet – The information provided is for reference only. It must always be verified. Climaled cannot be held liable for any error or misinterpretation.

Air-conditioning system
Mono-split
Indoor unit type
Ducted
Room (m²)
140
WiFi
Optional
Power
14 kW / 47000 BTUs
Nominal heating power
15.5 kW
Nominal cooling power
13.4 kW
Refrigerant
R32
Refrigerant piping
3/8'' - 5/8''
Voltage
Three-phase
Min sound pressure dB(A)
29
Indoor unit dimensions (mm)
300 x 1400 x 700
Outdoor unit dimensions (mm)
998 x 940 x 320

Specific references

EAN13
8432884615384
