Description

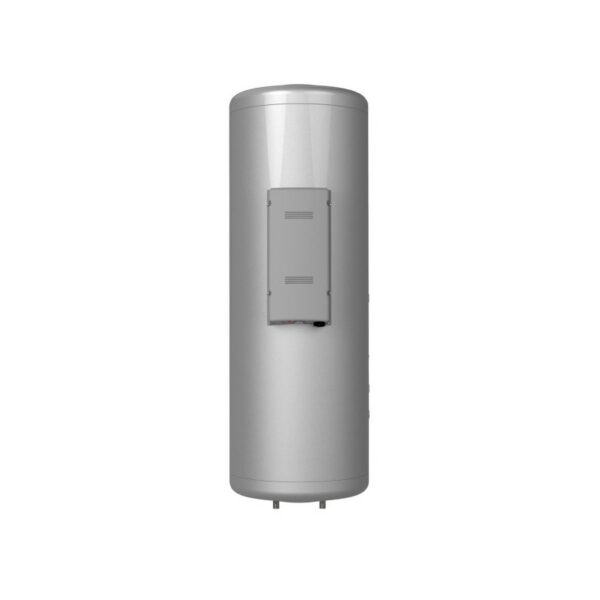

EASYDAN Tanks
Crafted by Videira from DX 2205 stainless steel, EASYDAN cylinders are purpose-built to pair with Mitsubishi Electric heat pumps. They deliver high-performance domestic hot water through superior heat transfer and peak energy efficiency, matching the reliability and longevity of Mitsubishi Electric systems.

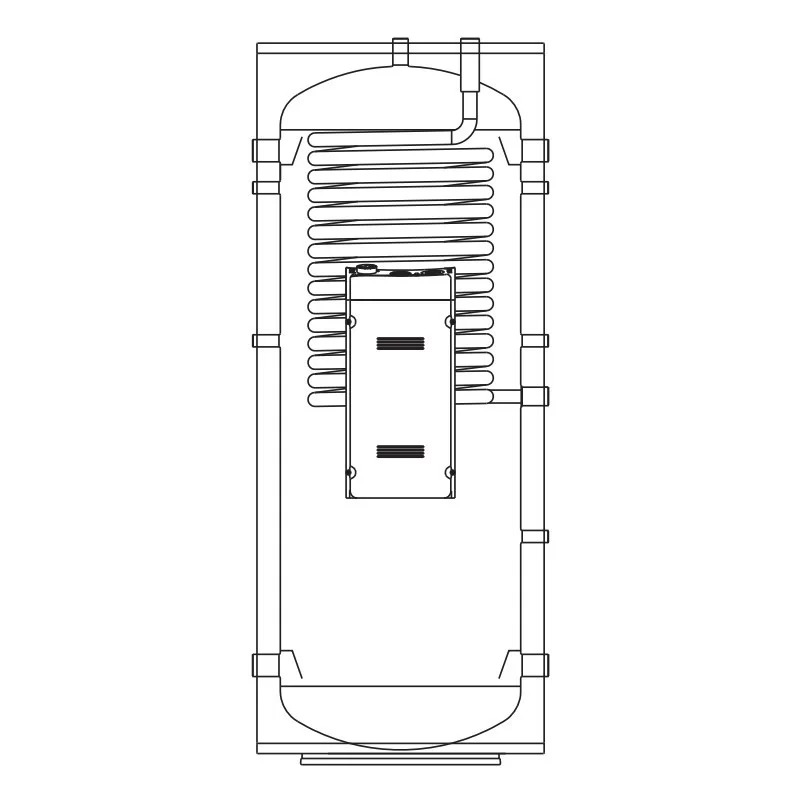

The line offers multiple options, including single- or dual-coil vessels and models for either instantaneous or buffer production.
User benefits
- Thermal insulation of rigid polyurethane foam (50–60 mm), CFC- and HCFC-free.
- Outer shell in DX51 galvanized steel with electrostatic paint finish.
- Heat exchangers made of AISI 316L stainless steel.
- Built-in electric heating element.
- No magnesium anode required.
- Safety hydraulic unit rated at 7 bar included.
| Capacity | 300 L | 500 L | 750 L | 1000 L | ||
| Reference | EASYDAN INST300 | EASYDAN INST500 | EASYDAN INST750 | EASYDAN INST1000 | ||
| Dimensions | Ø x Height | mm | 620 × 1570 | 710 × 1960 | 950 × 2100 | 1100 × 2170 |
| Useful capacity | L | 274 | 476 | 709 | 1040 | |
| Tank construction | DUPLEX LDX 2101 stainless steel | AISI 316L stainless steel | ||||
| Exchanger construction | AISI 316L stainless steel | |||||
| Instantaneous exchange area | m² | 2.5 | 3.45 | 6.9 | 8.05 | |
| Exchange volume | L | 15 | 18.2 | 32 | 37 | |
| Electric backup | W / V | 2000 W / 230 V | 3000 W / 230 V | 10000 W / 400 V | 10000 W / 400 V | |
| Maximum working pressure | 6 bar | |||||
| Maximum operating temperature | ºC | 85 ºC | ||||
| Energy class | C | |||||
| Standing heat loss | W | 94 | 111 | 121 | 124 | |
| Thermal insulation | 50 mm CFC-free expanded polyurethane | 100 mm flexible polyurethane | ||||
| Outer finish | Electrostatically painted DX51D galvanized steel (9010) | PVC | ||||
Product details
Easydan INST750
0.00 Kg
Technical sheet - The information provided is for documentation purposes only. This information must always be verified. Climaled cannot be held responsible for any errors or misinterpretations.
- Voltage
- Three-phase
- ECS energy class
- C
- Tank capacity (litres)
- 700
- Dimensions (mm)
- 950 x 2100
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
