Description

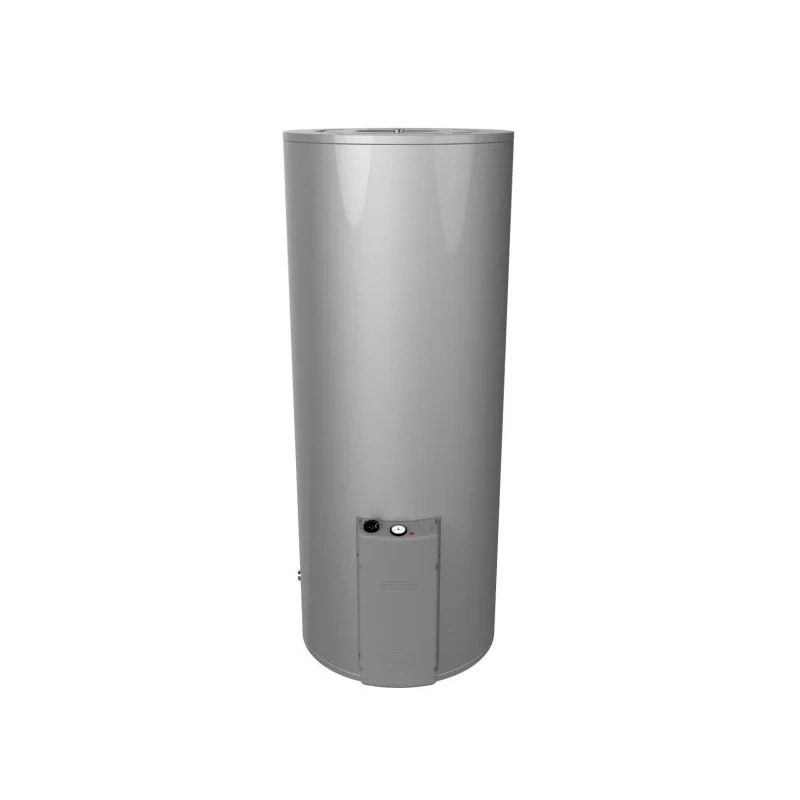

EASYDAN Heat-Exchange Tanks
Easydan cylinders, built by Videira from DX 2205 stainless steel, are engineered for perfect pairing with Mitsubishi Electric heat pumps. They deliver cutting-edge heat transfer and high energy efficiency for domestic hot-water generation, matching the reliability and longevity of Mitsubishi Electric units.

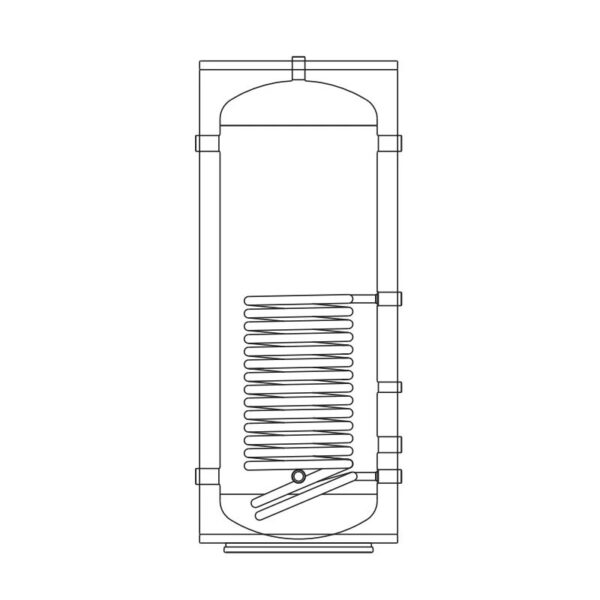

The line-up covers single- or dual-coil vessels, instantaneous-production tanks and buffer storage units.
User benefits
- Thermal insulation: 50–60 mm rigid CFC- and HCFC-free polyurethane foam.
- Outer shell: electro-statically painted DX51 galvanized steel.
- Heat exchangers made of AISI 316L stainless steel.
- Built-in electric heating element.
- No magnesium anode needed.
- Supplied with a 7-bar safety hydraulic group.
| Capacity | 100L | 200L | 300L |
| Dimensions (Ø x Height, mm) | 550 x 860 | 550 x 1420 | 620 x 1570 |
| Useful volume (L) | 100 | 199 | 292 |
| Tank material | DUPLEX LDX 2101 stainless steel | ||
| Auxiliary exchanger material | AISI 316L stainless steel | ||
| Exchange area (m²) | 0.5 | 0.77 | 1.32 |
| Exchanger volume (L) | 7.3 | 11.4 | 15 |
| Primary circuit connection | 1”F | 1”1/2F | |
| Drain connection | 1/2”F | ||
| Temperature probe port | |||
| Sewage connection | |||
| Temp. sensor port | |||
| Max. working pressure | 6 bar | ||
| Max. operating temp. (°C) | 85°C | ||
| Energy class | B | C | |
| Standing losses (W) | 49 | 77 | 94 |
| Thermal insulation | 50 mm CFC-free expanded polyurethane | ||
| Outer finish | Electro-statically painted DX51D galvanized steel (9010) | ||
Additional information
| NOMBRE DE CONNEXIONS : |
|---|
Product details
IN200S-4
0.00 Kg
Data sheet – The information provided is for reference only. It must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Voltage
- Single-phase
- DHW energy class
- C
- Tank capacity (litres)
- 200
- Dimensions (mm)
- 500 x 1420
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
