Daikin FCAG125B + AZAS125MY1 Round-Flow Cassette Sky Air Active Series Three-Phase | 90 Reviews

Brand:  Daikin
In Stock
Reference:  FCAG125B / AZAS125MY1 / BYCQ140E / BRC1H52W
Free Shipping
In Stock
Livraison Offerte

12.0 kW reversible inverter 8-way cassette air conditioner kit, Round Flow 950×950

From 2 749,62 Ex. Tax Or 3 299,54 Inc. Tax
-38%
From 1 704,76 Ex. Tax Or 2 045,71 Inc. Tax
Order before 1 hour and 42 minutes to receive by 03/12/2025

Description

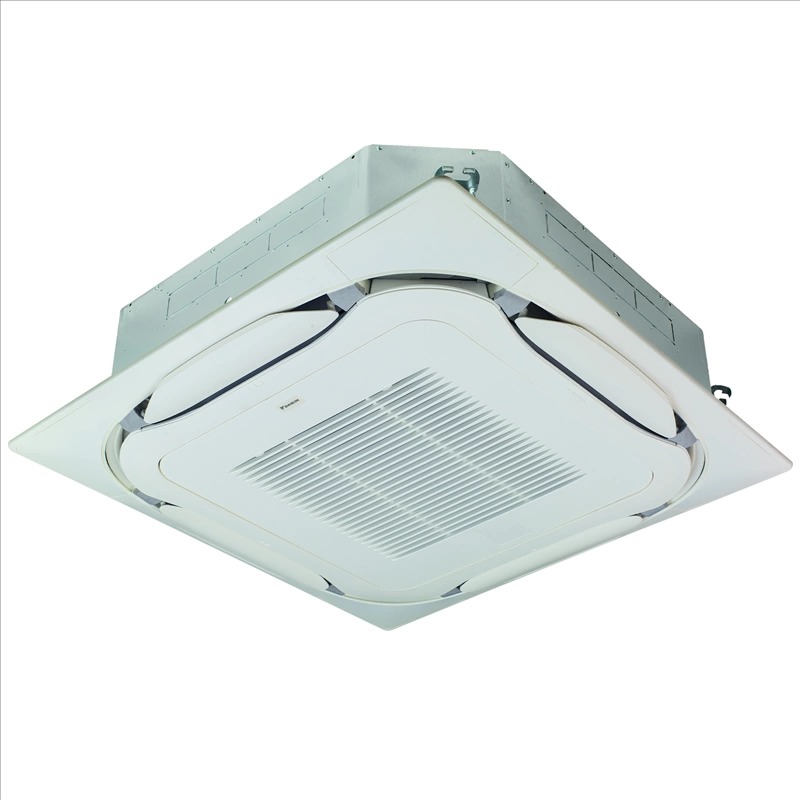

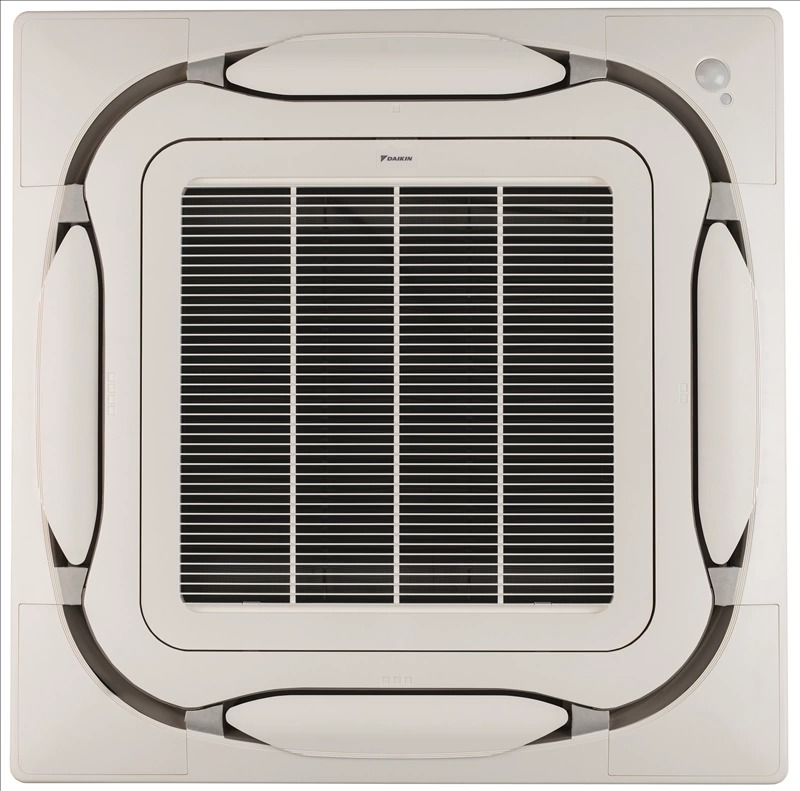

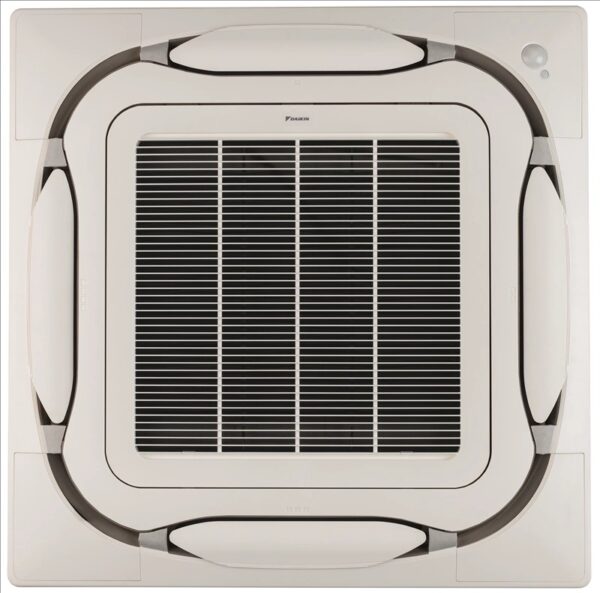

DAIKIN’s 8-way 950×950 Round Flow FCAG-B cassette series slots flush into suspended ceilings, freeing up every inch of usable floor space.

The circular-blow FCAG-B cassette air-conditioners create a more pleasant indoor climate while helping shop, office and restaurant owners lock in major energy savings.

An optional presence sensor tweaks the set-point or switches the unit off when no one is around; once activated, the airflow controller steers the draft away from detected occupants.

User benefits

  • 360° air throw for even temperature and draught-free comfort.
  • Self-cleaning cassette option: automatic daily filter rinse for higher comfort and lower upkeep.
  • Dust removal with a vacuum cleaner—no need to open the unit.
  • High COP for top-tier energy performance.

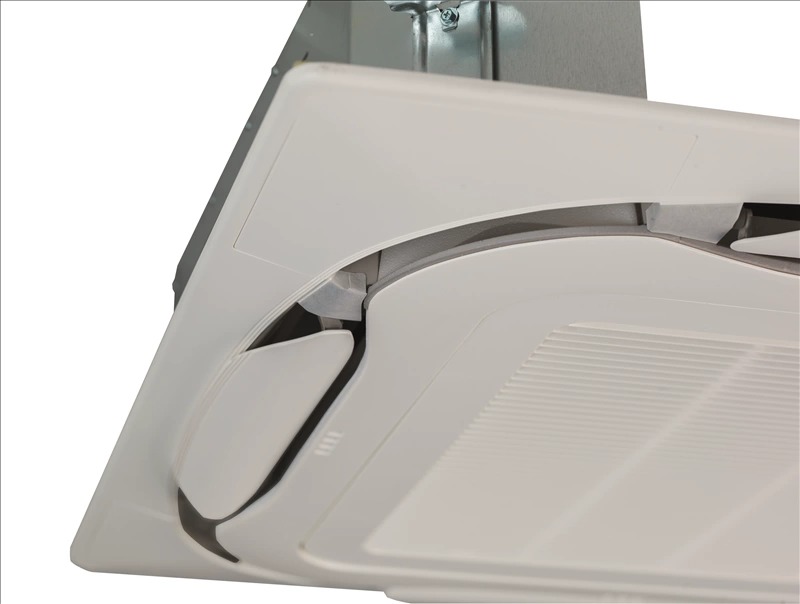

  • Individual flap control: fine-tune airflow to match any room layout.

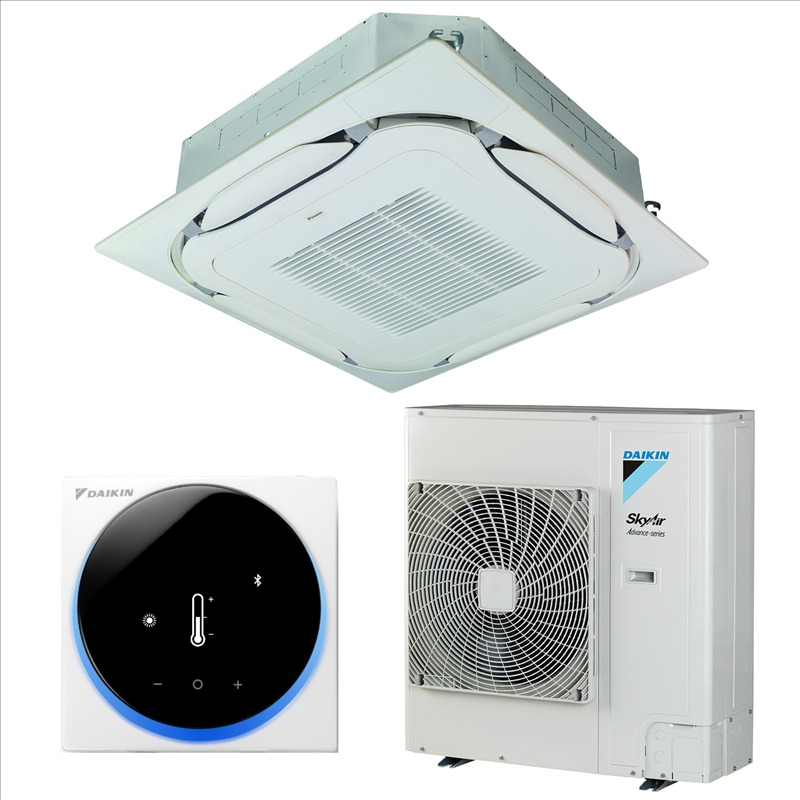

Kit contents

  • 1 reversible indoor unit
  • 1 decorative panel

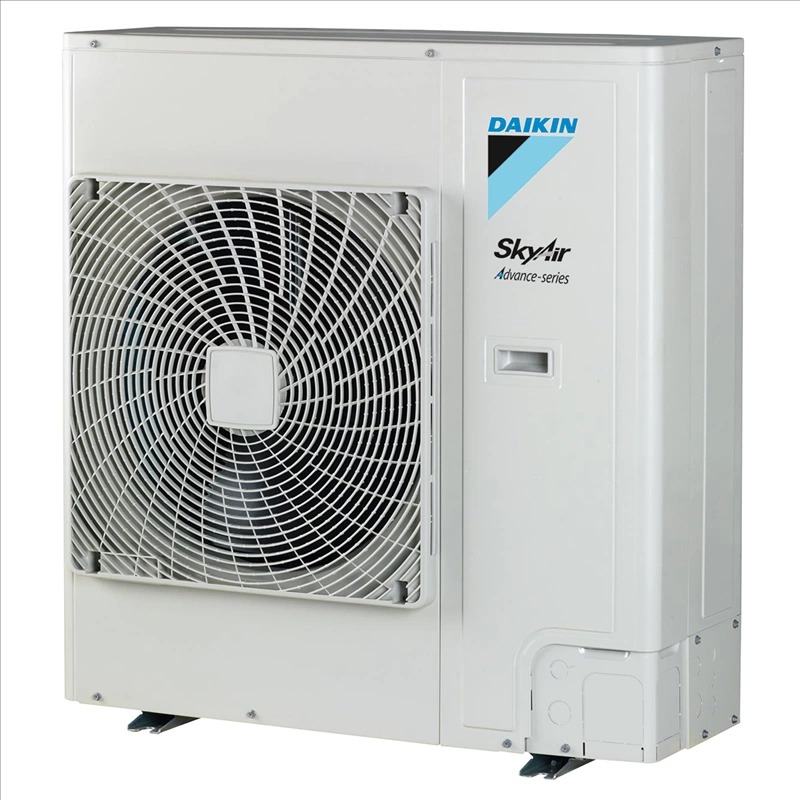

  • 1 reversible outdoor unit
  • 1 wired controller
  • 1 user manual

Additional information

FAÇADE :

,

TÉLÉCOMMANDE :

, ,

Product details

Daikin
FCAG125B / AZAS125MY1 / BYCQ140E / BRC1H52W
0.00 Kg

Technical sheet - Information shown is for reference only. These details must always be verified. Climaled accepts no liability for errors or misinterpretation.

Air Conditioning System
Mono-split
Indoor Unit Type
Cassette
Room (m²)
120
WiFi
Optional
Power
12.5 kW / 45000 BTUs
Nominal Heating Power
13.5 kW
Nominal Cooling Power
12 kW
Cooling Energy Class
A
Heating Energy Class
A
SCOP / Nominal Heating Energy Label
3.8
SEER / Nominal Cooling Energy Label
5.4
Refrigerant
R32
Refrigerant Lines
3/8'' - 5/8''
Color
White, Pearl White
Voltage
Three-phase
Min Sound Pressure dB(A)
29
Panel Dimensions (mm)
65 x 950 x 950
Indoor Unit Dimensions (mm)
246 x 840 x 840
Outdoor Unit Dimensions (mm)
990 x 940 x 320
Warranty
3 years

Specific references

EAN13
4548848702251
