Daikin FBA60A9 + RZAG60B Medium-Pressure Sky Air Alpha Series Heat Pump | 82 Reviews

Brand:  Daikin
In Stock
Reference:  FBA60A9 / RZAG60B-Sans WiFi-BRC1H52W
Free Shipping
In Stock
Livraison Offerte

Medium static pressure reversible inverter concealed duct air conditioner 6 kW kit

From 2 634,24 Ex. Tax Or 3 161,09 Inc. Tax
-38%
From 1 638,69 Ex. Tax Or 1 966,43 Inc. Tax
Order before 13 minutes to receive by 03/12/2025

Description

Thanks to the Daikin FBA-A ducted air conditioner, your heating system stays virtually out of sight, hidden within attic spaces or suspended ceilings. Air flows through subtle grilles, freeing up floor space for a clean, minimalist look.

Built-in Inverter technology continuously fine-tunes output to match real-time demand, keeping temperatures steady without manual tweaks, whatever the external changes—sunshine, occupancy, electrical appliances, and more.

This smart operation delivers top-level comfort, extends system life and can cut energy use by up to 30 % versus conventional on/off units.

User benefits

  • Slim 245 mm height for minimal intrusion.
  • 30–150 Pa external static pressure suits flexible ducting in shops and mid-size offices.
  • Pressure set-up via the wired controller speeds commissioning.
  • Auto airflow adjustment simplifies installation.
  • Fast assembly boosts on-site efficiency.
  • Low-profile design perfect for bedrooms and flush ceiling integration.
  • DC Inverter fans lower power draw.
  • Air return possible from rear or bottom.
  • Built-in condensate pump enhances reliability.
  • Whisper-quiet 29 dB(A) for acoustic comfort.

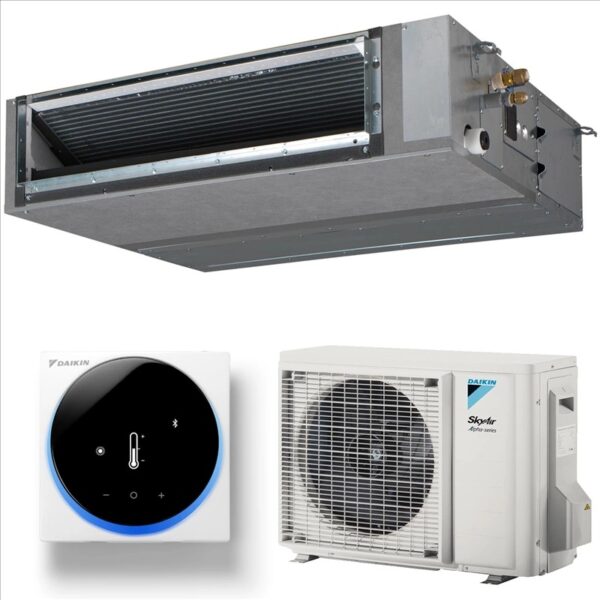

Kit contents

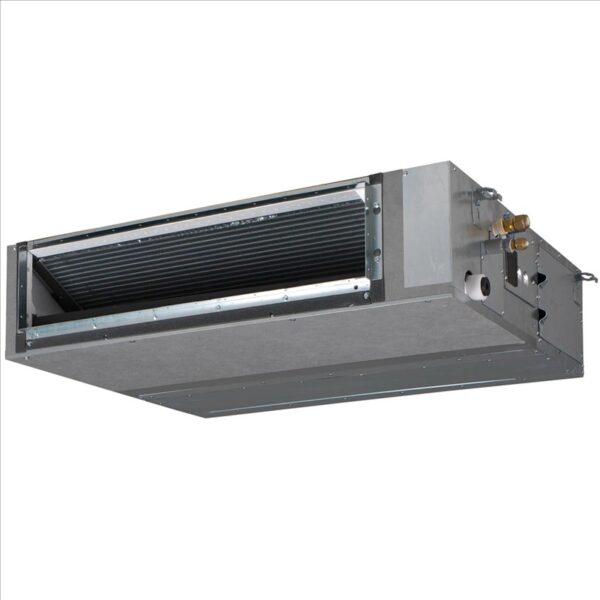

  • 1 reversible indoor unit

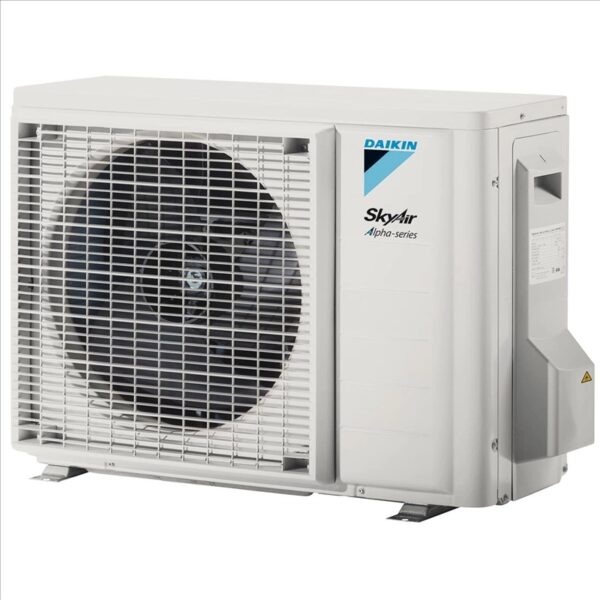

  • 1 reversible outdoor unit
  • 1 wired controller
  • 1 user manual

Additional information

TÉLÉCOMMANDE :

, ,

WIFI :

,

Product details

Daikin
FBA60A9 / RZAG60B-Without WiFi-BRC1H52W
0.00 Kg

Technical sheet - The information presented is for documentation purposes only. These details must always be verified. Climaled cannot be held liable for any errors or misinterpretations.

Air-conditioning System
Mono-split
Indoor Unit Type
Ducted
Room (m²)
60
WiFi
Optional
Power
6 kW / 22000 BTU
Rated heating power
7 kW
Rated cooling power
6 kW
Cooling energy class
A++
Heating energy class
A+
SCOP / Rated heating energy label
4.1
SEER / Rated cooling energy label
6.15
Refrigerant
R32
Refrigeration connection
1/4'' - 1/2''
Voltage
Single-phase
Min sound pressure dB(A)
29
Indoor unit dimensions (mm)
245 x 1000 x 800
Outdoor unit dimensions (mm)
734 x 870 x 373
Static pressure
30 Pa
Warranty
3 years

Specific references

EAN13
4548848722907
