Daikin FBA140A + RZAG140NV1 Reversible Medium-Pressure Sky Air Alpha Line | 50 Reviews

Brand:  Daikin
In Stock
Reference:  FBA140A / RZAG140NV1-Sans WiFi-BRC1H52W
Free Shipping
In Stock
Livraison Offerte

Concealed ducted air conditioner unit, medium static pressure, 14 kW reversible Inverter kit.

From 4 794,07 Ex. Tax Or 5 752,88 Inc. Tax
-39%
From 2 934,59 Ex. Tax Or 3 521,51 Inc. Tax
Order before 23 hours and 27 minutes to receive by 03/12/2025

Description

The Daikin FBA-A ducted air conditioner tucks its duct network away in the attic or false ceiling, keeping the heating setup nearly unseen. Air glides through subtle grilles, freeing up every square foot of floor space.

With Inverter technology on board, the unit fine-tunes its output on its own, holding a steady temperature without manual tweaks, even when sunshine or extra people shift the load.

This smart control delivers top-tier comfort, lengthens the system’s life and trims energy use by up to 30 % compared to fixed-speed models.

User benefits

  • Ultra-slim height of 245 mm for tight ceiling voids
  • Static pressure range 30 – 150 Pa, perfect for flexible ducts in shops and offices
  • Quick static-pressure tweaks through the wired controller
  • Auto airflow balancing makes fitting faster
  • Speedier install time
  • Vanishes into suspended ceilings—great for bedrooms
  • DC Inverter fans boost energy efficiency
  • Draws air from the rear or underside of the casing
  • Built-in condensate pump ups reliability
  • Whisper-quiet from 29 dB(A)

Kit contents

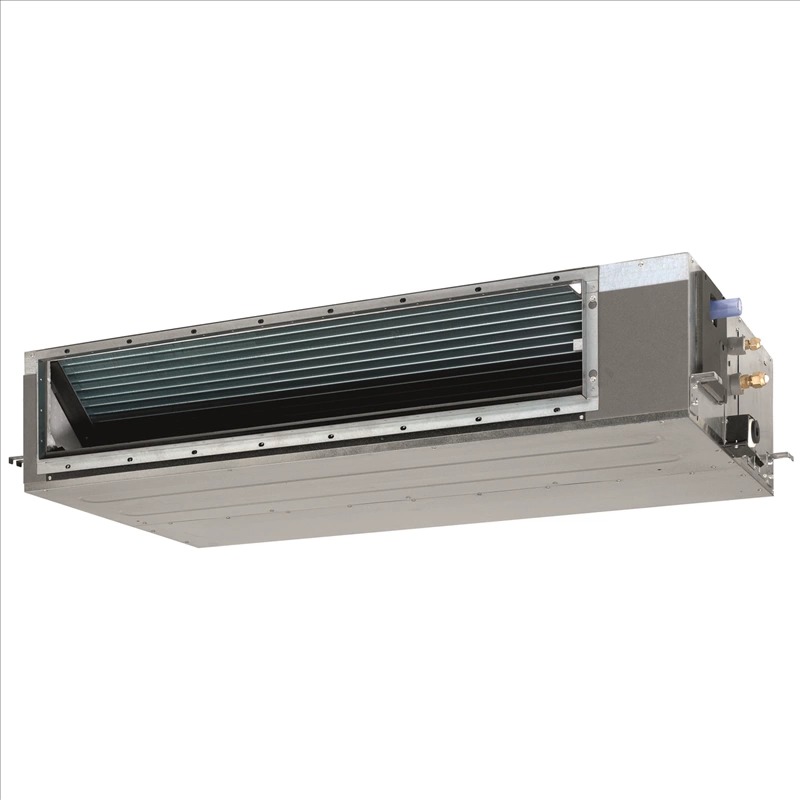

  • 1 reversible indoor unit

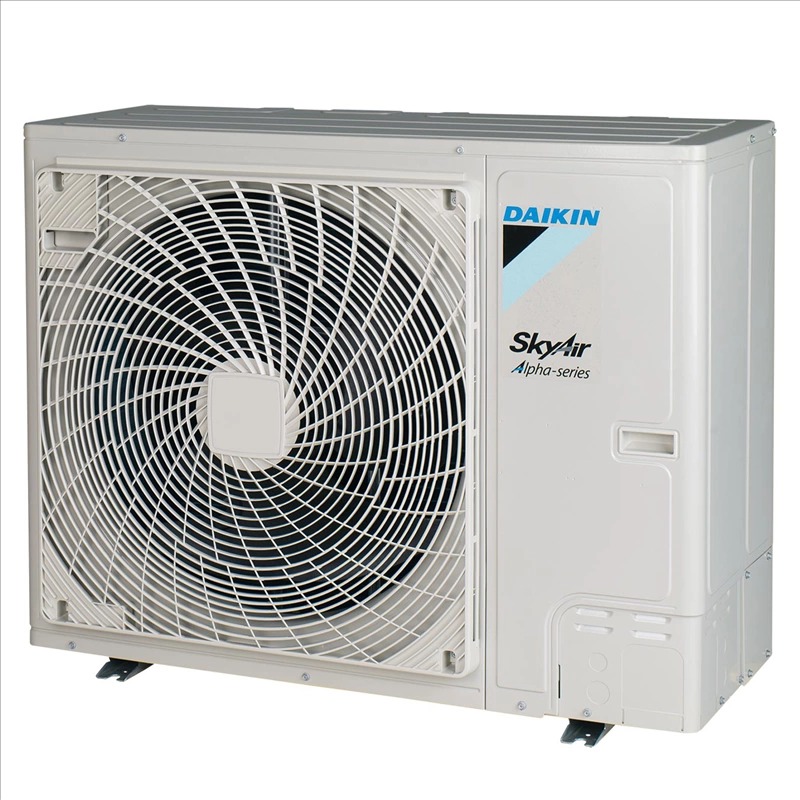

  • 1 reversible outdoor unit
  • 1 wired remote
  • 1 user manual

Additional information

TÉLÉCOMMANDE :

, ,

WIFI :

,

Product details

Daikin
FBA140A / RZAG140NV1-No WiFi-BRC1H52W
0.00 Kg

Data sheet - Information shown is for reference only. These details must always be verified. Climaled accepts no liability for errors or misinterpretation.

Air-conditioning system
Mono-split
Indoor unit type
Ducted
Room (m²)
140
WiFi
Optional
Power
14 kW / 47000 BTUs
Rated heating capacity
15.5 kW
Rated cooling capacity
13.4 kW
SCOP / Rated energy label heating
4.34
SEER / Rated energy label cooling
6.42
Refrigerant
R32
Refrigerant piping
3/8'' - 5/8''
Voltage
Single-phase
Min sound pressure dB(A)
32
Indoor unit dimensions (mm)
245 x 1400 x 800
Outdoor unit dimensions (mm)
870 x 1100 x 460
Static pressure
50 Pa
Warranty
3 years

Specific references

EAN13
4548848554485
