Description
How does it work?

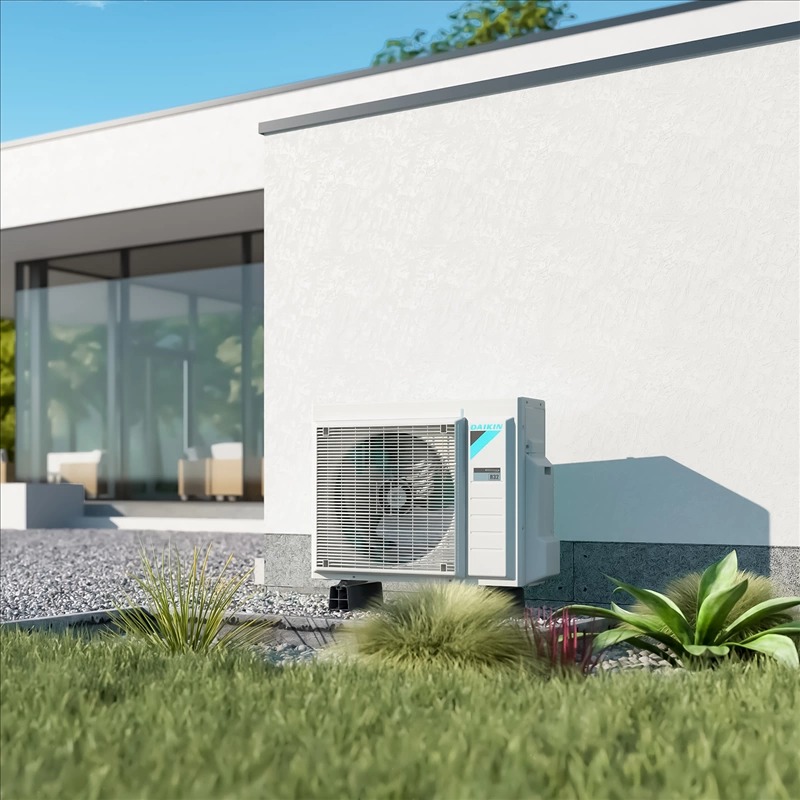

The outdoor unit draws energy from the air to deliver heating, cooling and hot water. It harvests up to 75 % of the energy from ambient air, topped up by electricity. The air-to-water heat pump uses a compressor and refrigerant to transfer this energy to water, which is then heated and circulated through your home as required.
Low-temperature heat pump
Tailored for newer builds, these units suit underfloor heating or low-temperature heat-pump radiators, delivering cosy warmth much like traditional radiators while operating efficiently at lower flow temperatures.
Refrigerant link

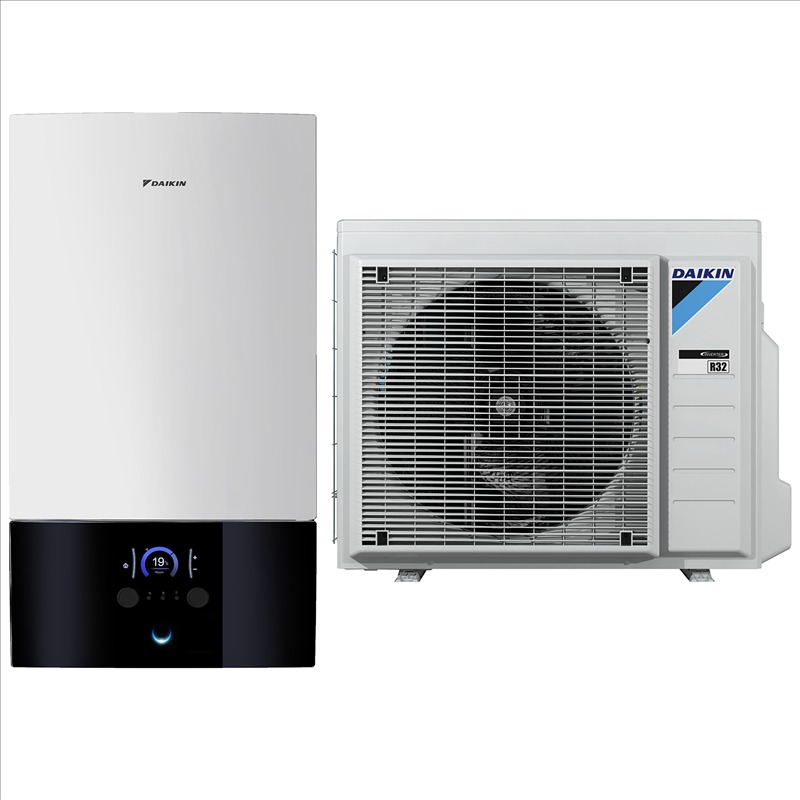

Split heat pumps pair an outdoor air-capture module with an indoor control module. Refrigerant piping keeps thermal losses minimal while moving heat indoors.
Product highlights
- Built-in hydraulic parts, no extra components required.
- Hydraulic components are easily reached from the front.
- Compact footprint fits tight plant rooms.
- Sleek design blends with household appliances.
- Works with stainless-steel or ECH2O tanks.
- Efficient heat capture down to –25 °C.
- Manage via the Daikin Residential Controller app.
- Voice control ready.
Additional information
| TÉLÉCOMMANDE : |
|---|
Product details
ERGA06EV / EHBX08E6V
20.00 Kg
Technical sheet - The information provided is for documentation purposes only and must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Capacity
- 6 kW / 22,000 BTU
- Nominal heating capacity
- A7/W35: 6 kW – A7/W45: 5.9 kW
- Nominal cooling capacity
- A35/W18: 5.96 kW – A35/W7: 5.09 kW
- Operating mode
- Heating and cooling
- Built-in tank
- No
- Refrigerant
- R32
- Refrigerant lines
- 1/4'' – 5/8''
- Power supply
- Single-phase
- Energy class water 35 °C
- A+++
- Energy class water 55 °C
- A++
- SCOP – Water outlet 35 °C
- 6.5
- SCOP – Water outlet 55 °C
- 4.13
- Min. sound pressure dB(A)
- 28
- Indoor unit dimensions (mm)
- 840 × 440 × 390
- Outdoor unit dimensions (mm)
- 740 × 884 × 388
