Description
How does it work?
The outdoor unit harvests energy from the air to power heating, cooling and hot-water needs. Up to 75 % of the energy is drawn from the air, with electricity covering the remainder. The air-to-water heat pump uses a compressor and refrigerant to heat water on demand and circulate it throughout your home.
Low-temperature heat pump
Perfect for new builds, these units pair seamlessly with underfloor heating and low-temperature radiators, delivering comfort equal to standard radiators while operating at lower water temperatures.
Refrigerant link
This split system combines an outdoor air-capture module with an indoor control unit. The refrigerant connection minimizes heat losses while transferring energy into the dwelling.
Product highlights
- Hydraulic parts included, no third-party extras needed.
- All hydraulic components reachable from the front.
- Compact footprint for tight installations.
- Sleek styling that blends with household appliances.
- Compatible with stainless-steel or ECH2O tanks.
- Efficient heat extraction down to –25 °C.
- Manage it through the Daikin Residential Controller app.
- Voice control built in.
Additional information
| TÉLÉCOMMANDE : |
|---|
Product details

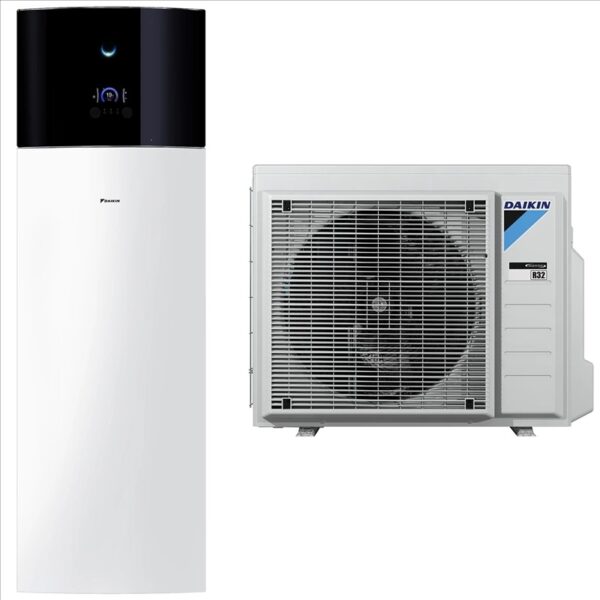

ERGA04EV / EHVX04S23E6V
20.00 Kg
Data sheet - The information shown is for reference only. These details must always be verified. Climaled accepts no liability for any error or misinterpretation.
- Capacity
- 4 kW / 14000 BTUs
- Rated heating capacity
- A7/W35: 4.3 kW - A7/W45: 4.6 kW
- Rated cooling capacity
- A35/W18: 4.86 kW - A35/W7: 4.52 kW
- Operating mode
- Heating and cooling
- Integrated tank
- Yes
- Refrigerant
- R32
- Refrigerant connection
- 1/4'' - 5/8''
- Power supply
- Single-phase
- DHW energy class
- A+
- Water 35 °C energy class
- A+++
- Water 55 °C energy class
- A++
- SEER - Water outlet 7 °C
- 5.66
- SCOP - Water outlet 35 °C
- 6.35
- SCOP - Water outlet 55 °C
- 3.88
- Min. sound pressure dB(A)
- 28
- Tank capacity (litres)
- 230
- Indoor unit dimensions (mm)
- 1850 x 595 x 625
- Outdoor unit dimensions (mm)
- 740 x 884 x 388
