Description
Sanitary hot water: The thermal tank design keeps water pristine, wiping out any bacteria or legionella risk for worry-free use.
Solar hook-up: Link the unit to rooftop PV panels in moments and let renewable energy heat your water with zero fuss.
Deep-freeze reliability: Daikin systems keep running smoothly down to –25 °C, ready for the harshest winters.
Key highlights
- Outdoor module harvests heat from the air even at –25 °C.
- Built-in solar circuit for seamless heating, cooling and domestic hot water.
- Renewable mix: Heat-pump plus solar energy for space and water heating.
- Pure water: No thermal disinfection needed—hygiene is automatic.
- Zero-maintenance tank: Anti-corrosion build, no scale, no water lost through safety valve.
- Solar-ready DHW support with pressure-free drainage.
- Smart defrost: Stored heat keeps rooms warm while the unit de-ices.
- High-grade insulation slashes standby losses.
- App control for heating, hot water and cooling from anywhere.
Additional information
| RÉSISTANCE : | SB.EKECBU3A3V – 3kW – 1N 230V + Kit de connexion, SB.EKECBU3A6V – 6kW – 1N 230V + Kit de connexion, SB.EKECBU3A9W – 9kW – 3N 400V + Kit de connexion |
|---|---|
| TÉLÉCOMMANDE : |
Product details

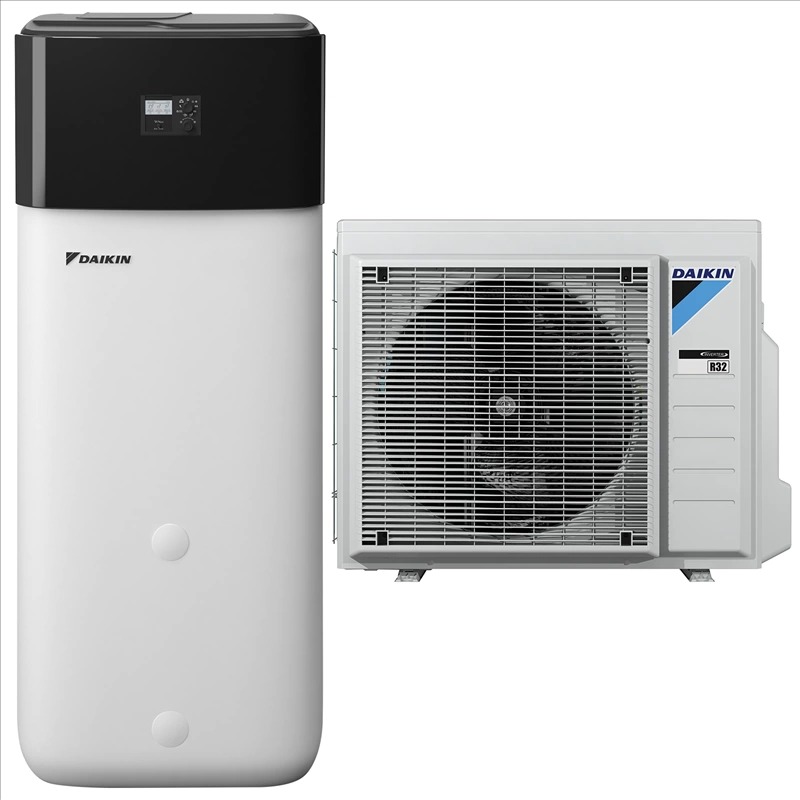

ERGA08EVH / EHSX08P50E / SB.EKECBU3A3V
20.00 Kg
Technical sheet - The information shown is for reference only. These details must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Power
- 8 kW / 27000 BTUs
- Nominal heating capacity
- A7/W35: 7.5 kW - A7/W45: 7.8 kW
- Nominal cooling capacity
- A35/W18: 6.25 kW - A35/W7: 5.44 kW
- Operating mode
- Heating and cooling
- Integrated tank
- Yes
- Refrigerant
- R32
- Refrigerant connection
- 1/4'' - 5/8''
- Voltage
- Single-phase
- DHW energy class
- A+
- Water 35ºC energy class
- A+++
- Water 55ºC energy class
- A++
- SEER - Water outlet 7ºC
- 5.73
- SCOP - Water outlet 35ºC
- 6.73
- SCOP - Water outlet 55ºC
- 4.2
- Min. sound pressure dB(A)
- 28
- Tank capacity (litres)
- 500
- Indoor unit dimensions (mm)
- 1896 x 790 x 790
- Outdoor unit dimensions (mm)
- 740 x 884 x 388
