Description
Sanitary Hot Water: The thermal tank ensures clean water, free from bacteria and legionella risks, for safe everyday use.
Solar Integration: Link the unit to photovoltaic panels for eco-friendly hot-water generation.
Cold-Weather Durability: Dependable operation down to –25 °C, suited to even the harshest climates.
Key Features
- Built-in solar module for seamless heating, hot water and cooling comfort.
- Extracts outdoor warmth even at –25 °C.
- Renewable Energy: Combines heat-pump and solar power for heating and hot-water supply.
- Pure Water: Hygiene assured without thermal disinfection against legionella.
- Zero-Maintenance Tank: No corrosion, limescale or water loss through safety valve.
- Bivalent design, ready for an extra heat source.
- Smart Management: Continuous heating during defrost cycles via stored heat.
- High-grade insulation keeps thermal losses minimal.
- App control for heating, hot-water and cooling management.
Additional information
| RÉSISTANCE : | SB.EKECBU3A3V – 3kW – 1N 230V + Kit de connexion, SB.EKECBU3A6V – 6kW – 1N 230V + Kit de connexion, SB.EKECBU3A9W – 9kW – 3N 400V + Kit de connexion |
|---|---|
| TÉLÉCOMMANDE : |
Product details

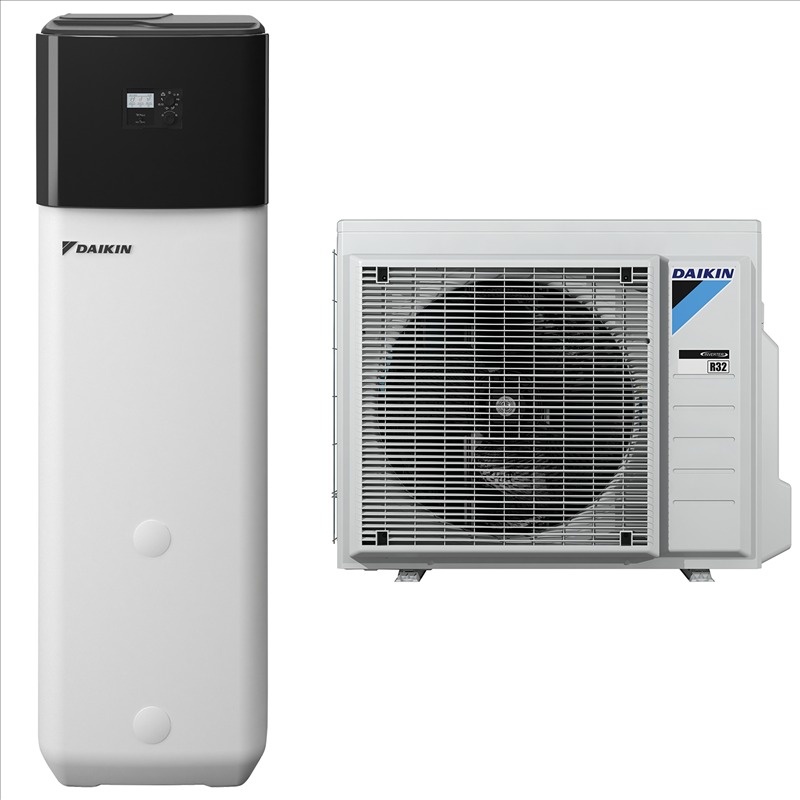

ERGA06EVH / EHSXB08P30E / SB.EKECBU3A3V
20.00 Kg
Technical sheet - The information shown is for documentation only. It must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Capacity
- 6 kW / 22000 BTU/h
- Rated heating capacity
- A7/W35: 6 kW - A7/W45: 5.9 kW
- Rated cooling capacity
- A35/W18: 5.96 kW - A35/W7: 5.09 kW
- Operating mode
- Heating and cooling
- Integrated tank
- Yes
- Refrigerant
- R32
- Refrigerant connections
- 1/4'' - 5/8''
- Power supply
- Single-phase
- DHW energy class
- A+
- Water 35ºC energy class
- A+++
- Water 55ºC energy class
- A++
- SCOP - Water outlet 35ºC
- 6.5
- SCOP - Water outlet 55ºC
- 4.13
- Min. sound pressure dB(A)
- 28
- Tank capacity (litres)
- 300
- Indoor unit dimensions (mm)
- 1891 x 595 x 615
- Outdoor unit dimensions (mm)
- 740 x 884 x 388
Specific references
