Description
Sanitary hot water: Thermal tank ensuring clean water, free from bacteria or legionella risks.
Solar-ready: Effortless connection to solar collectors for maximum renewable energy use.
Reliable down to -25 °C: Engineered to withstand the harshest climates.
Key features
- Heat extraction: high-performance outdoor unit even at -25 °C
- All-in-one comfort: solar solution for heating, hot water and cooling
- Renewable energies: combines heat pump and solar power
- Clean water: optimal hygiene without thermal disinfection
- Long-life tank: no corrosion, limescale or anode
- Solar assist: unpressurised system for hot water
- Smart management: continuous heating and energy optimisation
- High-grade insulation: minimal heat losses
- App control: manage heating, hot water and cooling
Additional information
| RÉSISTANCE : | SB.EKECBU3A3V – 3kW – 1N 230V + Kit de connexion, SB.EKECBU3A6V – 6kW – 1N 230V + Kit de connexion, SB.EKECBU3A9W – 9kW – 3N 400V + Kit de connexion |
|---|---|
| TÉLÉCOMMANDE : |
Product details

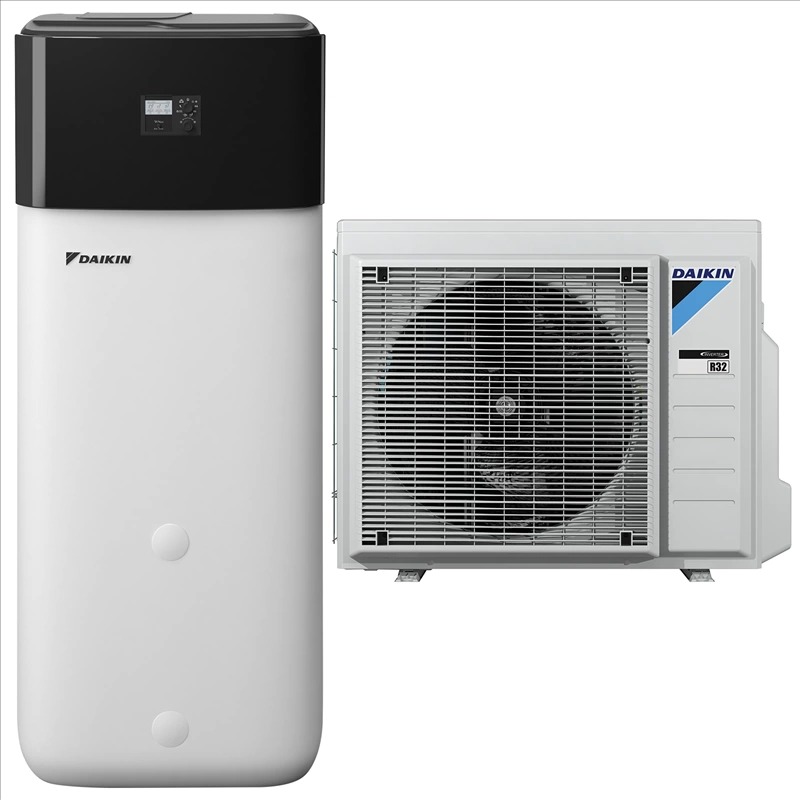

ERGA06EVH / EHSX08P50E/ SB.EKECBU3A3V
20.00 Kg
Technical sheet – The information shown is for reference only. It must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Power
- 6 kW / 22,000 BTU
- Rated heating capacity
- A7/W35: 6 kW – A7/W45: 5.9 kW
- Rated cooling capacity
- A35/W18: 5.96 kW – A35/W7: 5.09 kW
- Operating mode
- Heating and cooling
- Integrated tank
- Yes
- Refrigerant
- R32
- Refrigeration connection
- 1/4'' – 5/8''
- Voltage
- Single-phase
- DHW energy class
- A+
- Energy class water 35°C
- A+++
- Energy class water 55°C
- A++
- SEER – Water outlet 7°C
- 5.73
- SCOP – Water outlet 35°C
- 6.5
- SCOP – Water outlet 55°C
- 4.13
- Min. sound pressure dB(A)
- 28
- Tank capacity (litres)
- 500
- Indoor unit dimensions (mm)
- 1896 x 790 x 790
- Outdoor unit dimensions (mm)
- 740 x 884 x 388
