Description
Healthy hot water
The tank’s thermal design keeps water clean and free from bacteria or legionella for maximum safety.
Hassle-free solar hook-up
Tap into solar power by linking the water-heating system to roof-mounted solar collectors.
Reliable in extreme cold
Daikin units keep running strong down to -25 °C, ready for any climate.
Technical details
- Outdoor heat capture effective to -25 °C.
- All-in-one solar setup for heating, hot water and cooling.
- Harnesses renewable energy via heat pump plus solar assist.
- Pure water with no extra thermal disinfection against legionella.
- Zero-maintenance tank: no corrosion, no water loss.
- Solar-assisted hot water with built-in drain-back.
- Smart thermal management for steady heating.
- Premium insulation cuts heat loss to a minimum.
- Control heating and cooling from a mobile app.
Additional information
| RÉSISTANCE : | SB.EKECBU3A3V – 3kW – 1N 230V + Kit de connexion, SB.EKECBU3A6V – 6kW – 1N 230V + Kit de connexion, SB.EKECBU3A9W – 9kW – 3N 400V + Kit de connexion |
|---|---|
| TÉLÉCOMMANDE : |
Product details

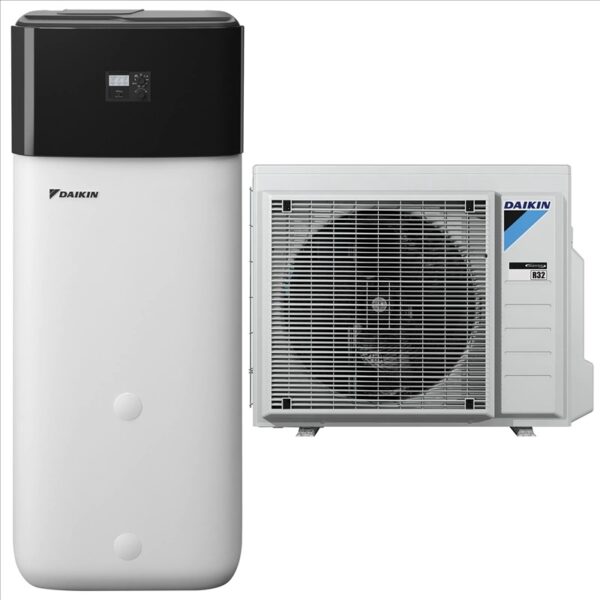

ERGA04EV / EHSX04P50E / SB.EKECBU3A3V
20.00 Kg
Technical sheet – The information shown is for reference only. These details must therefore always be verified. Climaled accepts no liability for any error or misinterpretation.
- Capacity
- 4 kW / 14000 BTUs
- Nominal heating capacity
- A7/W35: 4.3 kW – A7/W45: 4.6 kW
- Nominal cooling capacity
- A35/W18: 4.86 kW – A35/W7: 4.52 kW
- Operating mode
- Heating and cooling
- Integrated tank
- Yes
- Refrigerant
- R32
- Refrigerant connections
- 1/4'' – 5/8''
- Power supply
- Single-phase
- DHW energy class
- A+
- Water 35 °C energy class
- A+++
- Water 55 °C energy class
- A++
- SEER – Water outlet 7 °C
- 5.66
- SCOP – Water outlet 35 °C
- 6.35
- SCOP – Water outlet 55 °C
- 3.88
- Min. sound pressure dB(A)
- 28
- Tank capacity (litres)
- 500
- Indoor unit dimensions (mm)
- 1896 x 790 x 790
- Outdoor unit dimensions (mm)
- 740 x 884 x 388
