Description
Manage your air conditioning from anywhere with the optional Daikin Residential Controller app, ready on your phone or tablet.
Voice Control
Operate your unit effortlessly through voice commands.
Safe Hot Water
The thermal storage tank delivers hygienic hot water, wiping out bacteria such as Legionella for worry-free use.
Solar Hook-up
Tap into solar power by linking your hot-water tank to rooftop collectors in moments.
User Benefits
- Maximizes renewable energy: heat-pump space heating plus solar-assisted hot water and space heating.
- Zero-maintenance tank: no rust, scale, anode build-up or safety-valve water loss.
- Always-clean water: Legionella thermal disinfection not required.
- EKSRDS1A control module for pressurized solar systems.
Additional information
| RÉSISTANCE : | SB.EKECBUA3V/2A – 3kW – 1N 230V + Kit de connexion, SB.EKECBUA6V/2A – 6kW – 1N 230V + Kit de connexion, SB.EKECBUA9W/2A – 9 kW – 3N 400V + Kit de connexion |
|---|---|
| TÉLÉCOMMANDE : |
Product details

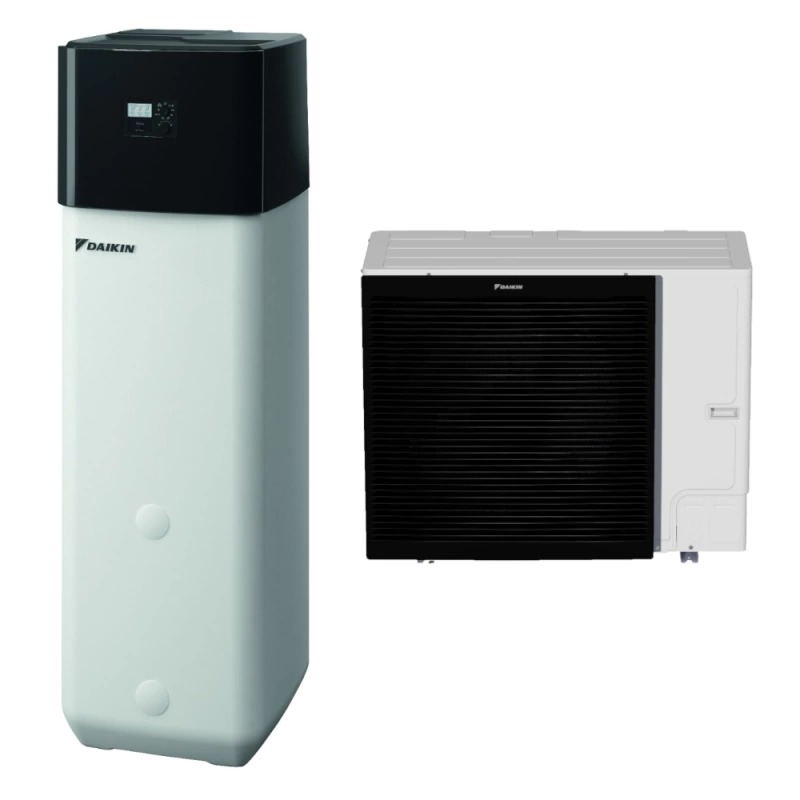

EBSX16P50D / ERLA16DV3 / SB.EKECBUA3V/2A
20.00 Kg
Technical sheet - The information presented is for documentation purposes only. These details must always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Power
- 16 kW / 54000 BTUs
- Nominal heating power
- A7/W35: 16 kW - A7/W55: 15.6 kW
- Nominal cooling power
- A35/W18: 15.7 kW - A35/W7: 13.5 kW
- Operating mode
- Heating and cooling
- Built-in tank
- Yes
- Refrigerant
- R32
- Refrigerant lines
- 3/8'' - 5/8''
- Voltage
- Single-phase
- DHW energy class
- A+
- Energy class water 35ºC
- A+++
- Energy class water 55ºC
- A++
- SEER - Water outlet 7ºC
- 5.76
- SCOP - Water outlet 35ºC
- 6.23
- SCOP - Water outlet 55ºC
- 4.38
- Min sound pressure dB(A)
- 40
- Tank capacity (litres)
- 500
- Indoor unit dimensions (mm)
- 1910 x 792 x 817
- Outdoor unit dimensions (mm)
- 870 x 1100 x 460
