Description

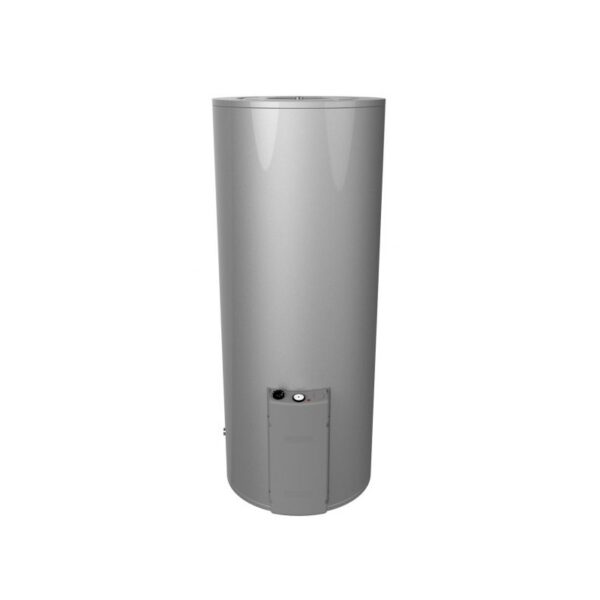

EASYDAN Storage Tanks
Crafted by Videira from DX 2205 stainless steel, Easydan tanks are engineered to pair seamlessly with Mitsubishi Electric heat pumps. They deliver peak heat transfer and high energy efficiency for domestic hot-water generation, matching the reliability and longevity of Mitsubishi Electric heat pumps.
Available in single- or dual-coil configurations, these vessels support both instantaneous and storage-based hot-water production.
User Benefits
- Thermal insulation of 50–60 mm rigid CFC- and HCFC-free polyurethane foam.
- Outer shell in electrostatically painted DX51 galvanized steel.
- Heat exchangers made from AISI 316L stainless steel.
- Built-in electric heating element.
- No magnesium anode needed.
- Fitted with a 7-bar safety hydraulic unit.
| Capacity | 150L | 200L | 300L | 500L | 750L | 1000L | ||
| Reference | EASYDAN AQS150 | EASYDAN AQS300S | EASYDAN AQS300S | EASYDAN AQS500S | EASYDAN AQS750S | EASYDAN AQS1000S | ||
| Dimensions | Ø x Height | mm | 550 x 1120 | 550 x 1420 | 620 x 1570 | 710 x 1960 | 1020 x 1850 | 1020 x 2200 |
| Useful volume | L | 139 | 181 | 267 | 465 | 685 | 1007 | |
| Tank construction | DUPLEX 2205 stainless steel | AISI 316L stainless steel | ||||||
| Heat-exchanger construction | AISI 316L stainless steel | |||||||
| DHW exchanger area | m² | 1.6 | 2.5 | 3.3 | 4 | 6 | 6 | |
| DHW exchanger volume | L | 7.3 | 11.4 | 15 | 18.2 | 48.4 | 48.4 | |
| Solar exchanger area | m² | 0.67 | 0.77 | 1.32 | 2.1 | 2.5 | 3.5 | |
| Solar exchanger volume | L | 3.1 | 3.5 | 6 | 9.8 | 20.2 | 28.2 | |
| Electric backup | W / V | 1500W / 230V | 1500W / 230V | 2000W / 230V | 3000W / 230V | 10000W / 400V | 10000W / 400V | |
| Max. working pressure | 6 bar | |||||||
| Max. operating temperature | ºC | 85ºC | ||||||
| Energy class | C | |||||||
| Standing heat loss | W | 63 | 77 | 94 | 111 | 121 | 124 | |
| Thermal insulation | 50mm CFC-free expanded polyurethane | 100mm flexible polyurethane | ||||||
| Outer finish | Electrostatic-painted DX51D galvanized steel (9010) | PVC | ||||||
Product details
Easydan AQS500S
0.00 Kg
Technical sheet - The information provided is for documentation purposes only. These details must always be verified. Climaled cannot be held liable for any errors or misinterpretations.
- Power
- 3 kW / 10000 BTUs
- Voltage
- Single-phase
- DHW energy class
- C
- Tank capacity (litres)
- 500
- Dimensions (mm)
- 710 x 1960
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
