Description
Easydan tanks, crafted by Videira from DX 2205 stainless steel, are purpose-built to pair with Mitsubishi Electric heat pumps. They deliver high-performance heat transfer and peak energy efficiency for domestic hot-water generation, matching the reliability and longevity of Mitsubishi Electric systems.
The lineup covers multiple configurations: single- or dual-coil cylinders, on-demand hot-water models, and inertia tanks.
User benefits
- Rigid polyurethane foam thermal insulation (50–60 mm), CFC- and HCFC-free.
- Outer shell in electrostatically painted galvanized steel DX51.
- Heat exchangers made of AISI 316L stainless steel.
- Built-in electric heating element.
- No magnesium anode needed.
- Fitted with a 7-bar safety hydraulic unit.
| Capacity | 150L | 200L | 300L | 500L | 750L | 1000L | ||
| Reference | EASYDAN AQS150 | EASYDAN AQS300S | EASYDAN AQS300S | EASYDAN AQS500S | EASYDAN AQS750S | EASYDAN AQS1000S | ||
| Dimensions | Ø x Height | mm | 550 x 1120 | 550 x 1420 | 620 x 1570 | 710 x 1960 | 1020 x 1850 | 1020 x 2200 |
| Useful capacity | L | 139 | 181 | 267 | 465 | 685 | 1007 | |
| Tank material | DUPLEX 2205 stainless steel | AISI 316L stainless steel | ||||||
| Exchanger material | AISI 316L stainless steel | |||||||
| DHW coil area | m² | 1.6 | 2.5 | 3.3 | 4 | 6 | 6 | |
| DHW coil volume | L | 7.3 | 11.4 | 15 | 18.2 | 48.4 | 48.4 | |
| Solar coil area | m² | 0.67 | 0.77 | 1.32 | 2.1 | 2.5 | 3.5 | |
| Solar coil volume | L | 3.1 | 3.5 | 6 | 9.8 | 20.2 | 28.2 | |
| Electric backup | W / V | 1500W / 230V | 1500W / 230V | 2000W / 230V | 3000W / 230V | 10000W / 400V | 10000W / 400V | |
| Max. working pressure | 6 bar | |||||||
| Max. operating temperature | ºC | 85ºC | ||||||
| Energy class | C | |||||||
| Standing heat loss | W | 63 | 77 | 94 | 111 | 121 | 124 | |
| Insulation | 50mm CFC-free expanded polyurethane | 100mm flexible polyurethane | ||||||
| Outer casing | Electrostatic painted galvanized steel DX51D (9010) | PVC | ||||||
Product details

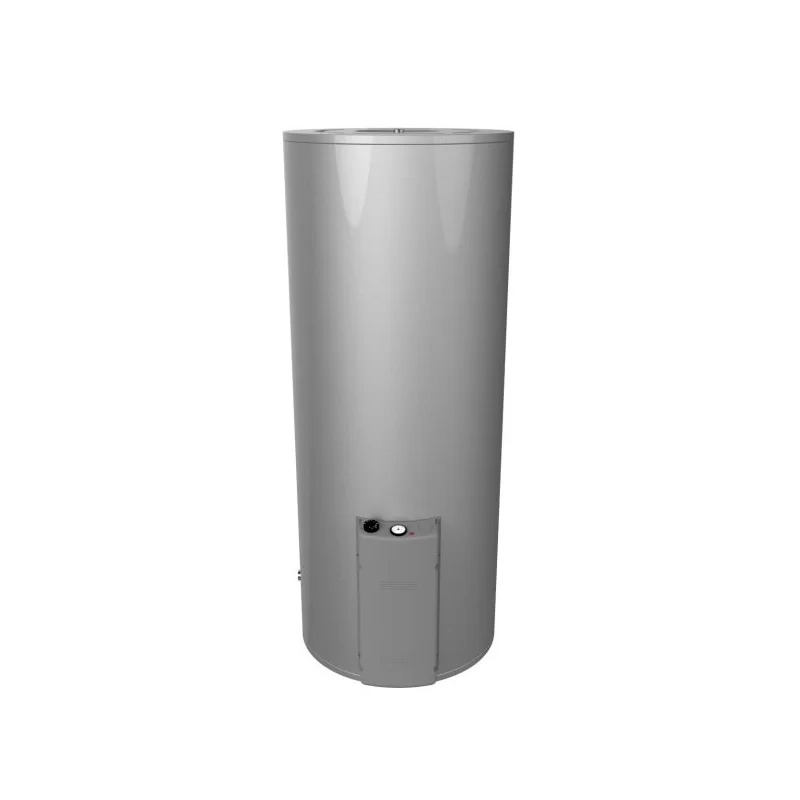

Easydan AQS300S
0.00 Kg
Technical sheet - The information shown is for reference only. This information must therefore always be verified. Climaled cannot be held liable for any error or misinterpretation.
- Power
- 2 kW / 7000 BTUs
- Voltage
- Single-phase
- DHW energy class
- C
- Tank capacity (litres)
- 300
- Dimensions (mm)
- 620 x 1570
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
