Description
Easydan tanks, engineered by Videira from DX 2205 stainless steel, are fine-tuned for pairing with Mitsubishi Electric heat pumps. They secure peak heat transfer and top-tier energy efficiency for domestic hot-water generation, while mirroring the dependability and lifespan of Mitsubishi Electric units.
The line delivers multiple choices—single- or twin-coil vessels, on-demand options, plus inertia models.
User benefits
- Thermal insulation: rigid polyurethane foam (50–60 mm), CFC- and HCFC-free.
- Outer shell: galvanized DX51 steel with electrostatic paint finish.
- Heat exchangers crafted in AISI 316L stainless steel.
- Built-in electric heating element.
- No magnesium anode required.
- Shipped with a 7-bar safety hydraulic block.
| Capacity | 150 L | 200 L | 300 L | 500 L | 750 L | 1000 L | ||
| Reference | EASYDAN AQS150 | EASYDAN AQS300S | EASYDAN AQS300S | EASYDAN AQS500S | EASYDAN AQS750S | EASYDAN AQS1000S | ||
| Dimensions | Ø x Height | mm | 550 x 1120 | 550 x 1420 | 620 x 1570 | 710 x 1960 | 1020 x 1850 | 1020 x 2200 |
| Useful volume | L | 139 | 181 | 267 | 465 | 685 | 1007 | |
| Tank construction | Duplex 2205 stainless steel | AISI 316L stainless steel | ||||||
| Heat-exchanger construction | AISI 316L stainless steel | |||||||
| BC exchange area | m² | 1.6 | 2.5 | 3.3 | 4 | 6 | 6 | |
| BC exchange volume | L | 7.3 | 11.4 | 15 | 18.2 | 48.4 | 48.4 | |
| Solar exchange area | m² | 0.67 | 0.77 | 1.32 | 2.1 | 2.5 | 3.5 | |
| Solar exchange volume | L | 3.1 | 3.5 | 6 | 9.8 | 20.2 | 28.2 | |
| Electric backup | W / V | 1500 W / 230 V | 1500 W / 230 V | 2000 W / 230 V | 3000 W / 230 V | 10000 W / 400 V | 10000 W / 400 V | |
| Max. working pressure | 6 bar | |||||||
| Max. operating temperature | ºC | 85 ºC | ||||||
| Energy class | C | |||||||
| Standing heat loss | W | 63 | 77 | 94 | 111 | 121 | 124 | |
| Thermal insulation | 50 mm CFC-free expanded polyurethane | 100 mm flexible polyurethane | ||||||
| Outer finish | Electro-painted galvanized DX51D steel (RAL 9010) | PVC | ||||||
Product details

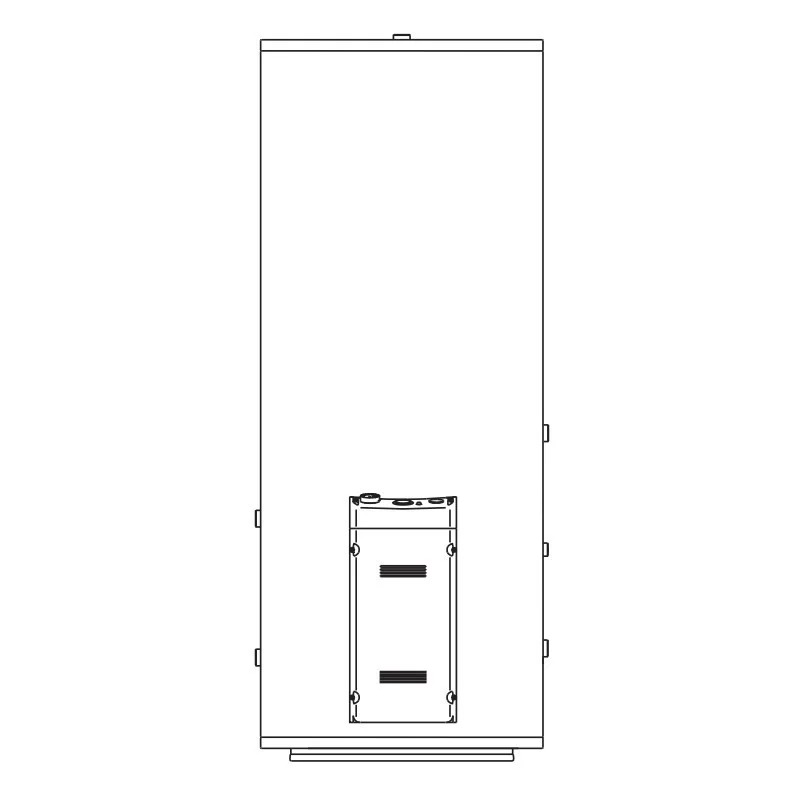

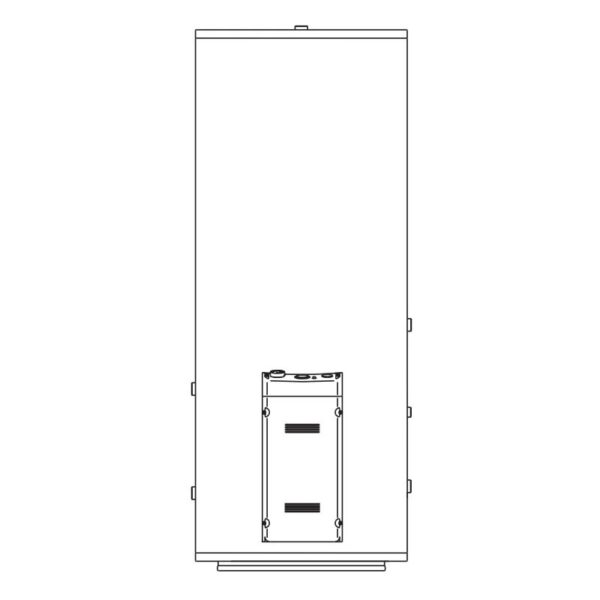

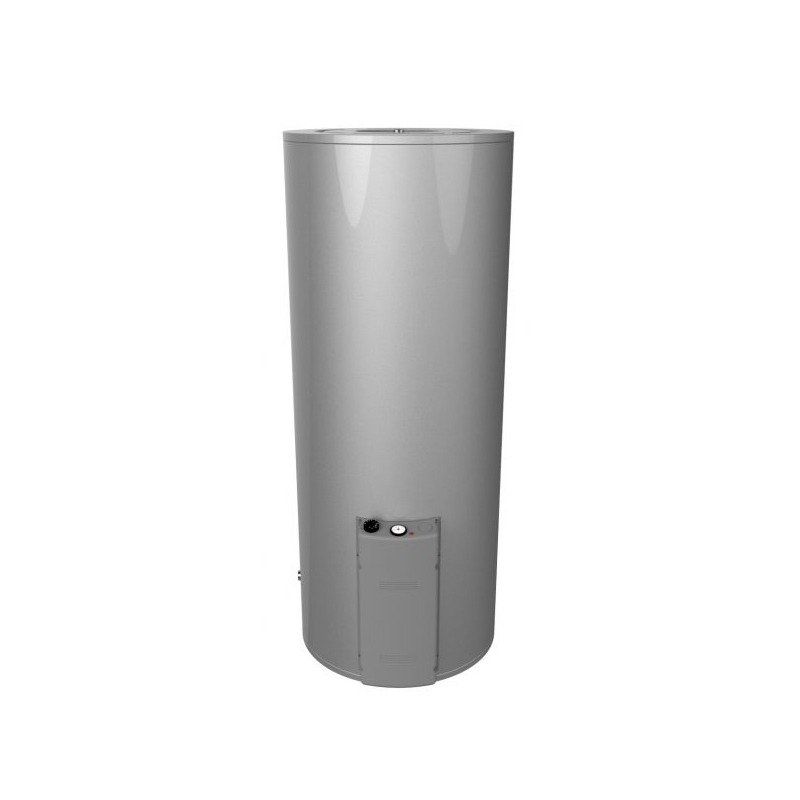

Easydan AQS750S
0.00 Kg
Technical sheet - The information shown is for reference only. These details must always be verified. Climaled accepts no liability for errors or misinterpretation.
- Voltage
- Three-phase
- ECS energy class
- C
- Tank capacity (litres)
- 700
- Dimensions (mm)
- 1020 x 1850
- Maximum operating temperature
- 85 ºC
- Maximum working pressure
- 6 bar
